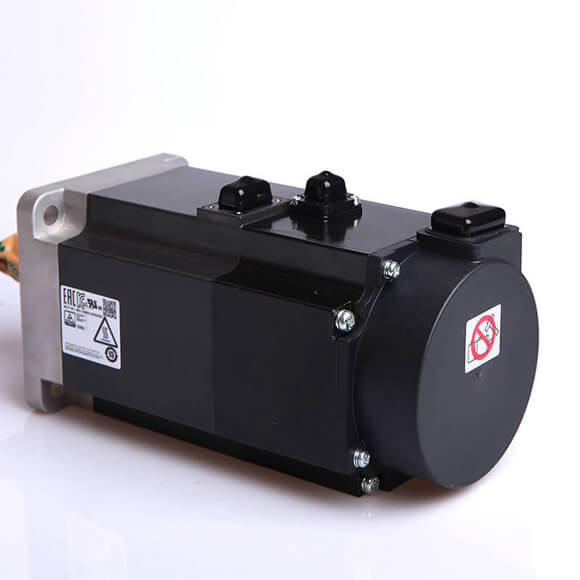

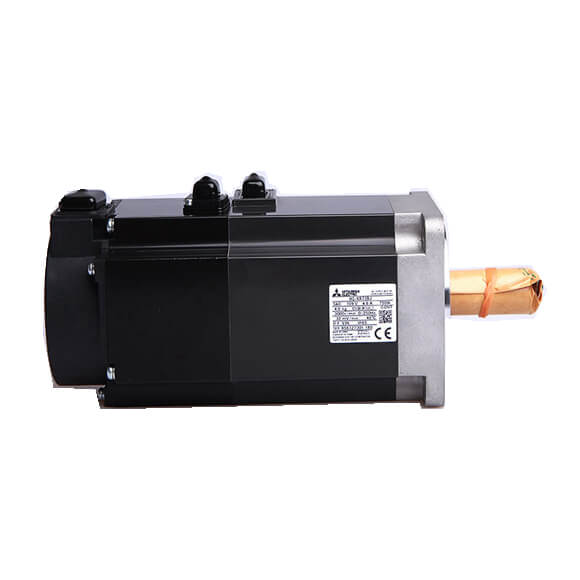

Mitsubishi MELSERVO-J4 Servomotor With Break 750W HG-KR73BJ

Mitsubishi MELSERVO-J4 Servomotor With Break 750W HG-KR73BJ
MELSERVO-J4 SERIES 50W to 7KW(HG-KR and HG-MR series)
We are First Class mitsubishi servomotors dealer and mitsubishi servomotors distributor in China.
We can Supply mitsubishi electric automation parts,such as Mitsubishi PLC,Mitsubishi Servo Motor&mitsubishi servo drive,Mitsubishi HMI,Mitsubishi VFD and So on.
100% Original and new,In stock by Mitsubishi Automation
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Mitsubishi Servo Motor MR-J4	motor	HG-MR series(ultra-low inertia/small capacity)					HG-KR series (low inertia/small capacity)
Mitsubishi MELSERVO-J4 Servomotor	motor	053(B)	13(B)	23(B)	43(B)	73(B)	053(B)	13(B)	23(B)	43(B)	73(B)
Continuous running duty (Note 1) Rated output	[kW]	0.05	0.1	0.2	0.4	0.75	0.05	0.1	0.2	0.4	0.75
Rated torque	[N•m]	0.16	0.32	0.64	1.3	2.4	0.16	0.32	0.64	1.3	2.4
Maximum torque (Note 10)	[N•m]	0.48	0.95	1.9	3.8	7.2	0.56	1.1	2.2	4.5	8.4
Rated speed (Note 1)	[r/min]	3000					3000
Maximum speed (Note 10)	[r/min]	6000					6000
Instantaneous permissible speed (Note 10)	[r/min]	6900					6900
Power rate at continuous rated torque Standard	[kW/s]	15.6	33.8	46.9	114.2	97.3	5.63	13.0	18.3	43.7	45.2
Rated current	[A]	1.0	0.9	1.5	2.6	5.8	0.9	0.8	1.3	2.6	4.8
Maximum current	[A]	3.1	2.5	5.3	9.0	20	3.2	2.5	4.6	9.1	17
Environment Ambient temperature	Operation	0 °C to 40 °C (non-freezing)
Storage		-15 °C to 70 °C (non-freezing)
Ambient humidity	Operation	10 %RH to 80 %RH (non-condensing)
Storage		10 %RH to 90 %RH (non-condensing)
Permissible load for the shaft(Note 8, 10) L	[mm]	25		30		40	25		30		40
Radial	[N]	88		245		392	88		245		392
Thrust	[N]	59		98		147	59		98		147
Mass (Note 3) Standard	[kg]	0.34	0.54	0.91	1.4	2.8	0.34	0.54	0.91	1.4	2.8
