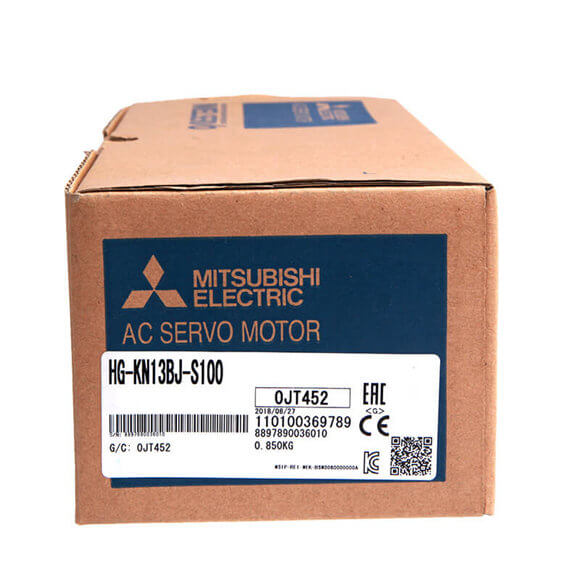

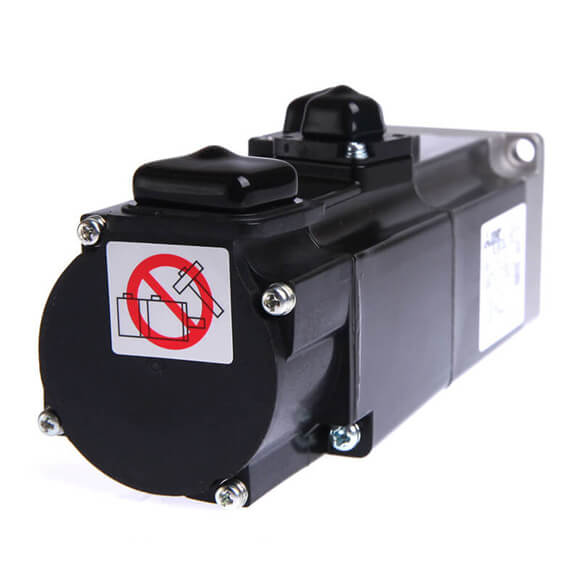

Mitsubishi MELSERVO-JE Servomotor With Break 100W HG-KN13BJ-S100

Series#: Mitsubishi Servomotor

Product Details

  • Mitsubishi MELSERVO-JE Servomotor With Break 100W HG-KN13BJ-S100
  • Mitsubishi MELSERVO-JE HG-KN SERIES Servomotor
  • We are First Class mitsubishi servomotors dealer and mitsubishi servomotors distributor in China.
  • We can Supply mitsubishi electric automation parts,such as Mitsubishi PLC,Mitsubishi Servo Motor&mitsubishi servo drive,Mitsubishi HMI,Mitsubishi VFD and So on.
  • 100% Original and new,In stock by Mitsubishi Automation
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Mitsubishi Servo motor model HG-KN 13(B)J 23(B)J 43(B)J 73(B)J
Mitsubishi MELSERVO-JE Servomotor Refer to “Combinations of Servo Motor and Servo Amplifier” on p. 2-1 in this catalog.
Power supply capacity *1 [kVA] 0.3 0.5 0.9 1.3
Rated output [W] 100 200 400 750
Rated torque (Note 3) [N・m] 0.32 0.64 1.3 2.4
Maximum torque [N・m] 0.95 1.9 3.8 7.2
Rated speed [r/min] 3000
Maximum speed [r/min] 5000
Permissible instantaneous speed [r/min] 5750
Rated current [A] 0.8 1.3 2.6 4.8
Maximum current [A] 2.4 3.9 7.8 14
Regenerative braking frequency *2, *3 [times/min] (Note 4) (Note 5) 276 159
Recommended load to motor inertia ratio (Note 1) 15 times or less
Combination with MR-JE-B Absolute/incremental 17-bit encoder (resolution: 131072 pulses/rev)
Combination with MR-JE-A Incremental 17-bit encoder (resolution: 131072 pulses/rev)
Oil seal Installed. Without oil seal is also available. Installed
Insulation class 130 (B)
Structure Totally enclosed, natural cooling (IP rating: IP65) (Note 2)
Ambient temperature Operation: 0 °C to 40 °C (non-freezing), storage: -15 °C to 70 °C (non-freezing)
Ambient humidity Operation: 80 %RH maximum (non-condensing), storage: 90 %RH maximum (non-condensing)
Ambience Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust
Altitude 1000 m or less above sea level
Vibration resistance *5 X: 49 m/s2 Y: 49 m/s2
Vibration rank V10 *7
Compliance to global standards Refer to “Conformity with global standards and regulations” on p. 19 in this catalog.


Standard [kg]

0.6 0.98 1.5 3.0
With electromagnetic brake [kg] 0.8 1.4 1.9 4.0
