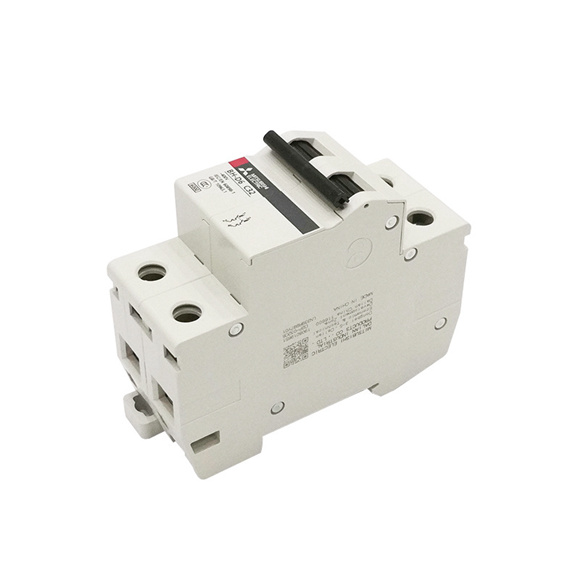

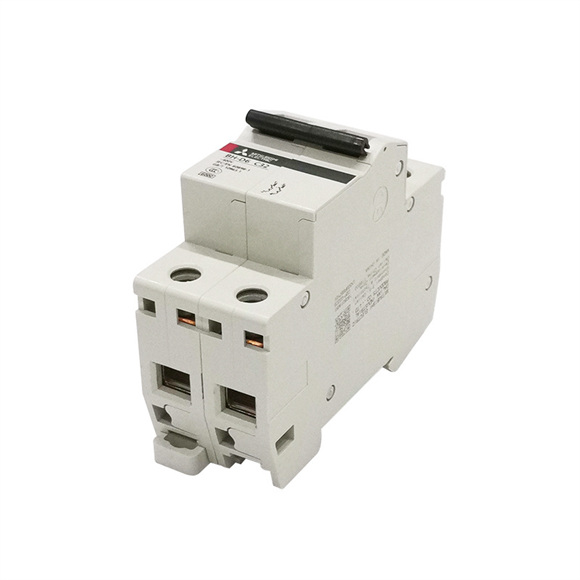

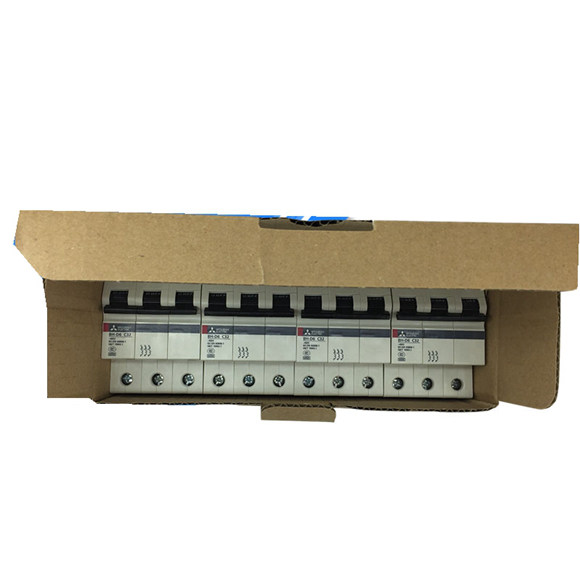

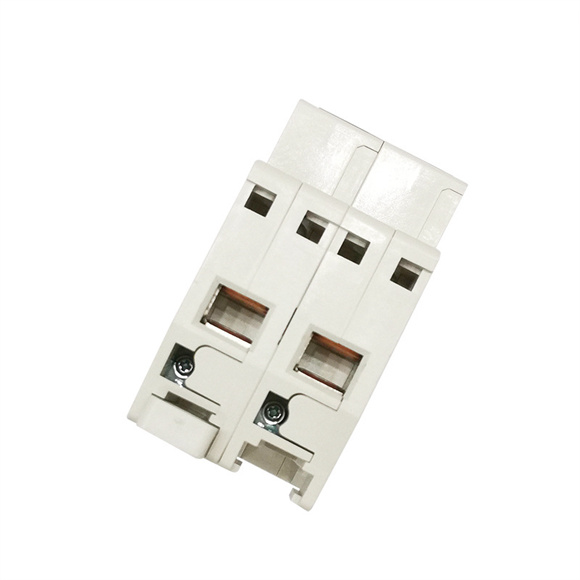

Mitsubishi Miniature Circuit Breakers (MCB) BH-D10 0.5-63A 1P 2P 3P 4 pole

Series#: Mitsubishi Circuit Breaker

Product Details

  • Mitsubishi Miniature Circuit Breakers (MCB) BH-D10 0.5-63A 1P 2P 3P 4 pole
  • We are First Class mitsubishi circuit breakers distributor and mitsubishi circuit breaker supplier in China.
  • We can Supply mitsubishi circuit breaker parts,such as mitsubishi air circuit breaker,mitsubishi electric circuit breaker,mitsubishi moulded case circuit breaker,mitsubishi dc circuit breaker,mitsubishi earth leakage circuit breaker,mitsubishi electric vacuum circuit breaker,mitsubishi electric high voltage circuit breaker,mitsubishi gas circuit breaker on,
  • 100% Original and new,In stock by Mitsubishi Electric.
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Mitsubishi MCB
Type BH-D6 BH-D10 BH-DN

















No. of poles [P] 1 2 3 4(3+N)*1 2(1+N)*1 1 2 3 4(3+N)*1 2 (1+N)*1
Instantaneous tripping Type B, C, D*2 Type B, C*2 Type B, C, D*2 Type C*2
Rated insulation voltage Ui [V] 440 440 230
Rated current In [A]

at ambient temperature 30:



0.5, 1, 1.6, 2, 3, 4, 6, 10, 13,

16, 20, 25, 32, 40, 50, 63

0.5, 1, 1.6, 2,

3, 4, 6, 10,

13, 16, 20,

25, 32, 40



0.5, 1, 1.6, 2, 3, 4, 6, 10, 13,

16, 20, 25, 32, 40, 50, 63



6, 10, 16, 20

230V 6 6 10 4.5
230/400V 6 10
400V 6 10
Number of operating cycles

Without current

8,000 10,000 20,000
Number of operating cycles

With current

8,000 10,000 20,000
Type of overcurrent release Thermal-magnetic Thermal-magnetic Thermal-magnetic
Mounting IEC35mm rail IEC35mm rail IEC35mm rail
Applicable wire size 1 to 25mm2 1 to 25mm2 1 to 10mm2
Mass [kg] 0.15 0.3 0.45 0.55 0.25 0.15 0.3 0.45 0.55 0.12
Terminal connection Solderless Solderless Solderless
Based on standard IEC60898-1 IEC60898-1 IEC60898-1
CE marking EN60898-1 : Self-declaration EN60898-1 : Self-declaration EN60898-1 : Self-declaration
CCC GB10963.1 GB10963.1 GB10963.1
