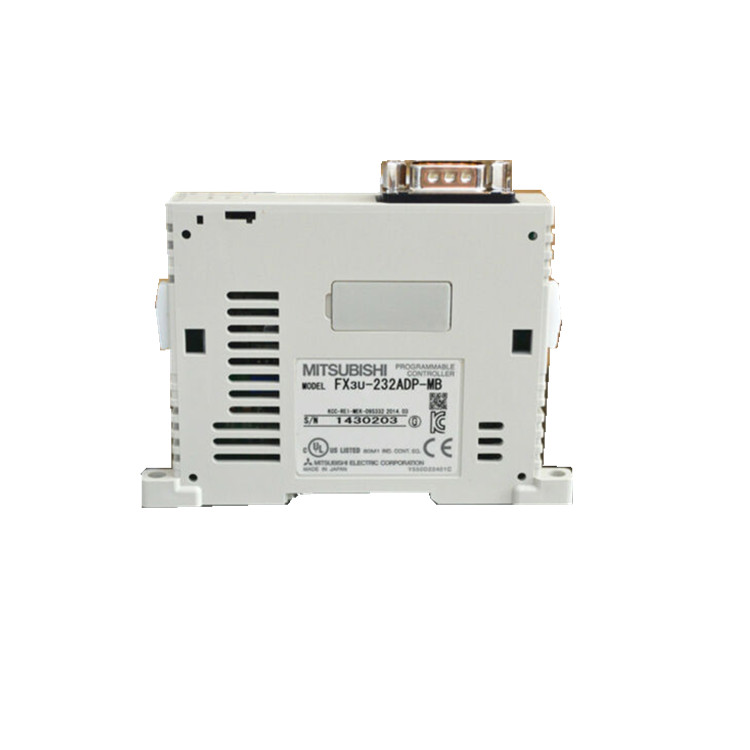

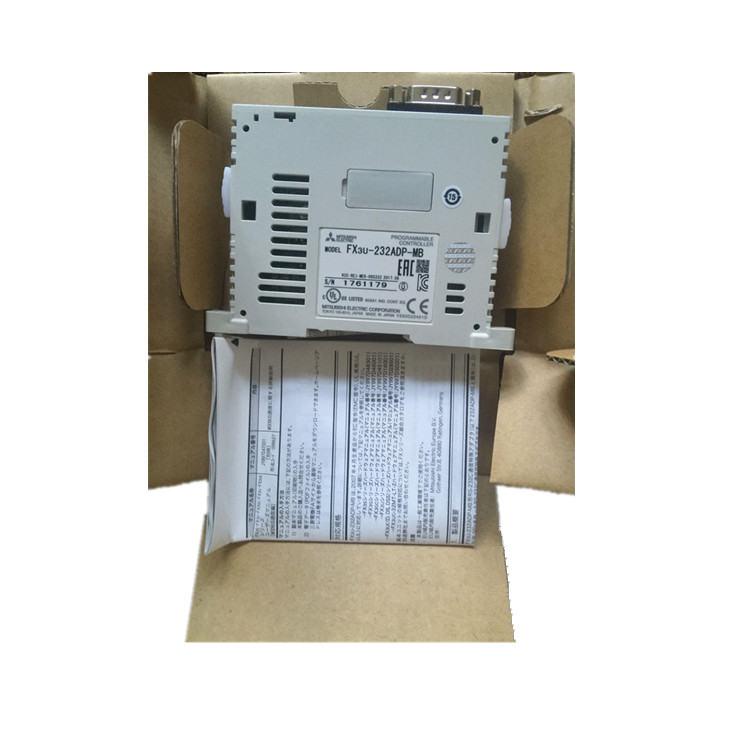

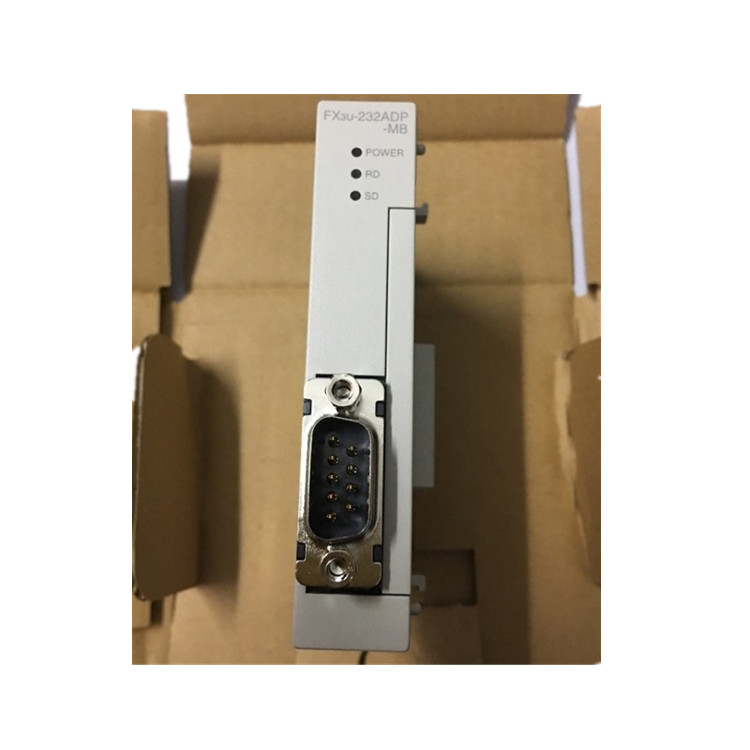

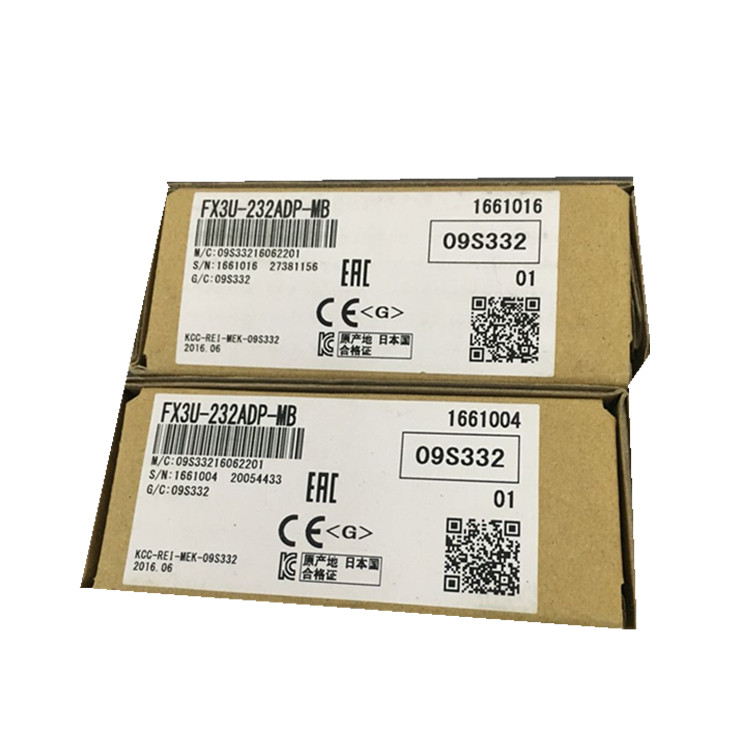

Mitsubishi PLC Communication module FX3U-232ADP-MB

Series#: Mitsubishi PLC Module FX3U/FX3UC

Product Details

  • Mitsubishi PLC Communication module FX3U-232ADP-MB
  • Mitsubishi PLC FX3U Series
  • We are First Class mitsubishi plc dealer and mitsubishi plc distributor in China.
  • We can Supply mitsubishi electric automation parts,such as Mitsubishi PLC,Mitsubishi Servo Motor,Mitsubishi HMI,Mitsubishi VFD and So on,
  • 100% Original and new,In stock by Mitsubishi PLC
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Mitsubishi PLC Module FX3G/FX3GC/FX3GE FX3U/FX3UC


Auxiliary relays

7,680 total, with 384 general (M0 – M383), 1,152 EEPROM latched (M384 – M1535),

and 6,144 general/optional latched(M1536 – M7679)

7,680 total, with 500 general (M0 – M499), 524 optional latched (M500 – M1023), and 6,656 latched (M1024 – M7679)


State relays

4,096 total, with 1,000 EEPROM latched (S0 – S999)

and 3,096 general/optional latched (S1000 – S4095)

4,096 total, with 1,000 optional latched (S0 – S999)

and 3,096 latched (S1000 – S4095)



Timers

320 total, with

206 100 ms (T0 – T199 and T250 – T255),

46 10 ms (T200 – T245),

and 68 1 ms (T246 – T249 and T256 – T319)

512 total, with

206 100 ms (T0 – T191, T192 – T199 and T250 – T255),

46 10 ms (T200 – T245),

and 260 1 ms (T246 – T249 and T256 – T511)



Counters

235 total (16 bit and 32 bit),

with 36 general

(C0 – C15 and C200 – C219) and

199 EEPROM latched

(C16 – C199 and C220 – C234)

235 total (16 bit and 32 bit),

with 120 general

(C0 – C99 and C200 – C219) and

115 latched

(C100 – C199 and C220 – C234)



High-speed counter speed

1-phase, 6 points max: 60 kHz / 4 points,

10 kHz / 2 points

2-phase, 3 points max: 30 kHz / 2 points,

5 kHz/1 point

1-phase, 8 points max: 100 kHz / 6 points

10 kHz / 2 points

2-phase, 2 points max: 50 kHz / 2 points



Data registers

8,000 total, with 128 general (D0 – D127), 972 EEPROM latched (D128 – D1099),

and 6,900 general/optional latched (D1100 – D7999)

8,000 total, with 200 general (D0 – D199), 312 optional latched (D200 – D511),

and 7,488 latched (D512 – D7999)

Extension registers 24,000(R0 – R23999) 32,768(R0 – R32767)
Extension file registers 24,000(ER0 – R23999) internal/optional memory 32,768(ER0 – R32767) optional memory
