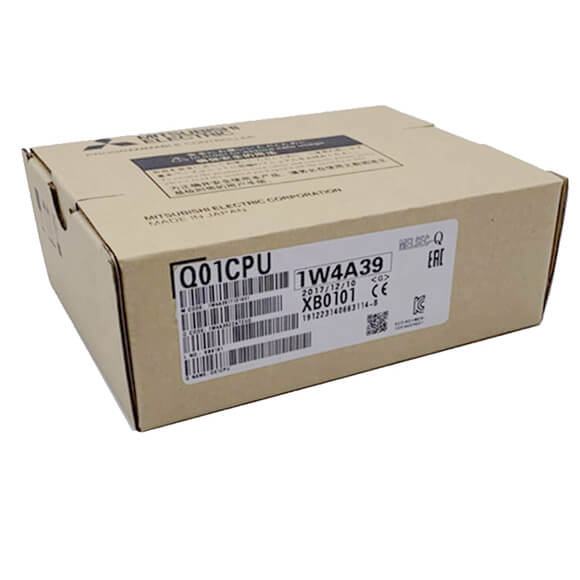

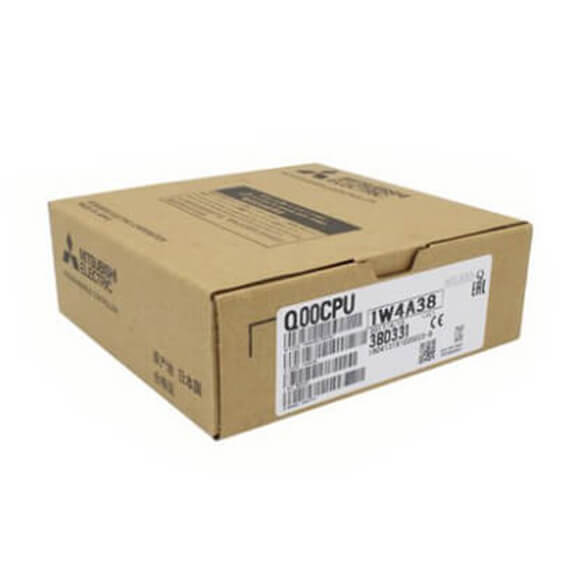

Mitsubishi PLC CPU Module Q Series | Q00JCPU | Q00CPU | Q01CPU |
Control method | Stored program cyclic operation | ||
I/O control mode | Refresh | ||
Program language (sequence control language) |
• Relay symbol language (ladder)
• Logic symbolic language (list) • MELSAP3 (SFC), MELSAP-L • Function block • Structured text (ST) |
||
Memory card interface | — | ||
LD instruction |
200 ns | 160 ns | 100 ns |
MOV instruction | 700 ns | 560 ns | 350 ns |
PC MIX value
(instruction/µs)*2 |
1.6 | 2.0 | 2.7 |
Floating point addition | 65.5 µs | 60.5 µs | 49.5 µs |
Total number of instructions*3 | 534 | 564 | |
Floating point instruction | | ||
Character string processing instruction | *4 | ||
PID instruction | | ||
Special function instruction (Trigonometric function, square root,
exponential operation, etc.) |
|
||
Constant scan
(Function for keeping regular scan time) |
1…2000 ms (setting available in units of 1 ms) | ||
Program capacity | 8K steps | 14K steps | |
Number of I/O device points [X/Y] | 2048 points | ||
Number of I/O points [X/Y] | 256 points | 1024 points | |
Internal relay [M]*5 | 8192 points | ||
Latch relay [L]*5 | 2048 points | ||
Link relay [B]*5 | 2048 points | ||
Timer [T]*5 | 512 points | ||
Retentive timer [ST]*5 | 0 point | ||
Counter [C]*5 | 512 points | ||
Data register [D]*5 | 11136 points | ||
Link register [W]*5 | 2048 points | ||
Annunciator [F]*5 | 1024 points | ||
Edge relay [V]*5 | 1024 points | ||
Link special relay [SB] | 1024 points | ||
Link special register [SW] | 1024 points | ||
File register [R, ZR] | — | 65536 points | |
Step relay [S] | 2048 points | ||
Index register [Z] | 10 points | ||
Pointer [P] | 300 points | ||
Interrupt pointer [I] | 128 points | ||
Special relay [SM] | 1024 points | ||
Special register [SD] | 1024 points | ||
Function input [FX] | 16 points | ||
Function output [FY] | 16 points | ||
Function register [FD] | 5 points | ||
Local device | — | ||
Device initial values | |
