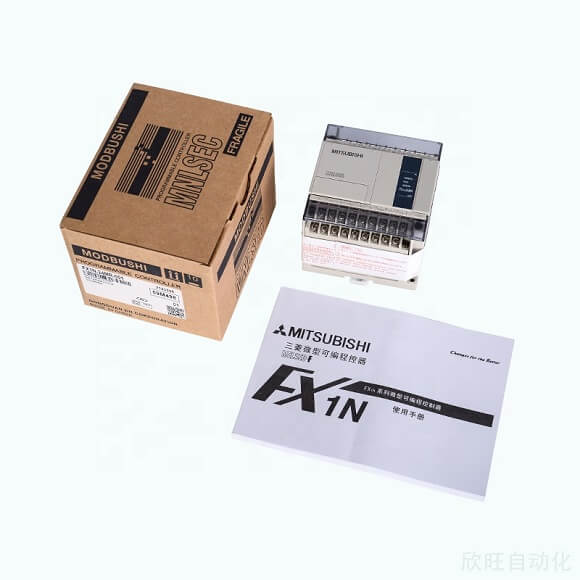

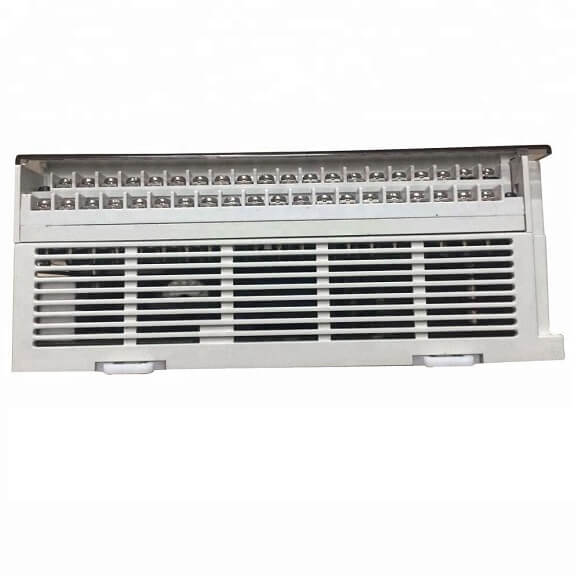

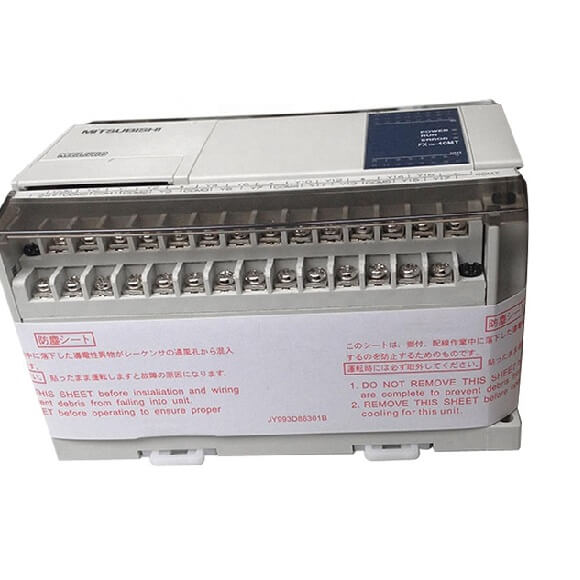

Mitsubishi PLC Module FX1N | Specification | Remarks |
Operation control method | Cyclic operation by stored program | |
I/O control method | Batch processing method (when END instruction is executed) | I/O refresh instruction is available |
Operation processing time | Basic instructions: 0.55 to 0.7 ms
Applied instructions: 1.65 to several 100 ms |
|
Programming language | Relay symbolic language + step ladder | Step ladder can be used to produce an SFC style program |
Program capacity | 8K steps | Provided by built in EEPROM memory |
Number of instructions |
Basic sequence instructions: 29 Step ladder instructions: 2 Applied instructions: 89 | A Maximum 120 applied instructions are available including all variations |
I/O configuration | Max hardware I/O configuration points 128, dependent on user selection (Max. software addressable Inputs 128, Outputs 128) |
State relays (S coils) Latched | 1000 points | S0 to S999 |
State relays (S coils) Initial | 10 points (subset) | S0 to S9 |
Timers (T) 100 msec | Range: 0 to 3,276.7 sec
200 points |
T0 to T199 |
Timers (T) 10 msec | Range: 0 to 327.67 sec
46 points |
T200 to T245 |
Timers (T) 1 msec | Range: 0 to 32.767 sec
4 point |
T246 to T249 |
Timers (T) 100 msec
retentive |
Range: 0 to 3,276.7 sec
6 points |
T250 to T255 |
Counters (C) General | Range: 1 to 32,767 counts
16 points |
C0 to C15
Type: 16 bit up counter |
Latched | 184 points (subset) | C16 to C199
Type: 16 bit up counter |
General | Range: 1 to 32,767 counts
20 points |
C200 to C219
Type: 32 bit bi-directional counter |
Latched | 15 points (subset) | C220 to C234
Type: 32 bit bi-directional counter |
High speed counters (C) 1 phase |
Range: -2,147,483,648 to
+2,147,483,647 counts Select upto four 1 phase counters with a combined counting frequency of 5kHz or less. Alternatively select one 2 phase or A/B phase counter with a counting fre- quency of 2kHz or less. Note all counters are latched |
C235 to C240
6 points |
1 phase
c/w start stop input |
C241, C242 and C244
3 points |
|
2 phase | C246, C247 and C249
3 points |
|
A/B phase | C251, C252 and C254
3 points |
|
General |
7128 points |
D0 to D127 & D1000 to D7999
Type: 16 bit data storage register pair for 32 bit device |
Latched |
872 points (subset) |
D128 to D999
Type: 16 bit data storage register pair for 32 bit device |
File |
7000 points |
D1000 to D6999 set by parameter in 3
blocks of 500 program steps Type: 16 bit data storage register |
Externally adjusted | Range: 0 to 255
2 points |
Data is move from external setting
potentiometers to registers D8030 and D8031) |
Special | 256 points (inclusive of D8013, D8030
and D8031) |
From the range D8000 to D8255
Type: 16 bit data storage register |
Index | 16 points | V and Z
Type: 16 bit data storage register |
Pointers with CALL | 128 points | P0 to P127 |
For use with interrupts |
6 points |
I00❑ to I30❑
(rising trigger ❑ = 1, falling trigger ❑ = 0) |
Nest levels | 8 points for use with MC and MCR | N0 to N7 |
Decimal K |
16 bit: -32,768 to +32,767
32 bit: -2,147,483,648 to +2,147,483,647 |
|
Hexadeci-
mal H |
16 bit: 0000 to FFFF
32 bit: 00000000 to FFFFFFFF |
