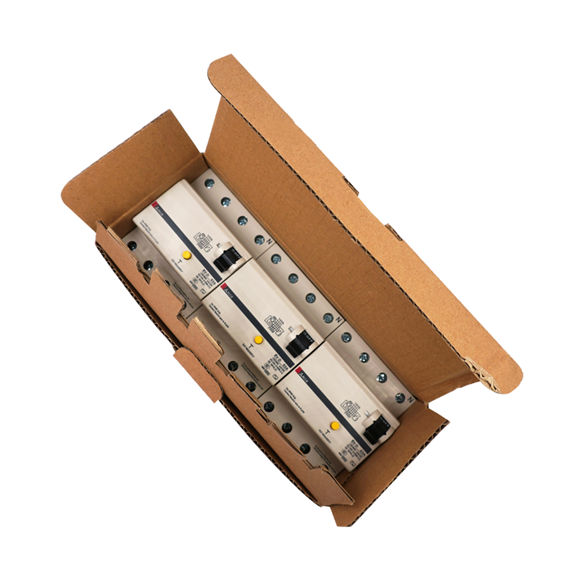

Mitsubishi Circuit Breaker | RCCB | |
Type | BV-D | |

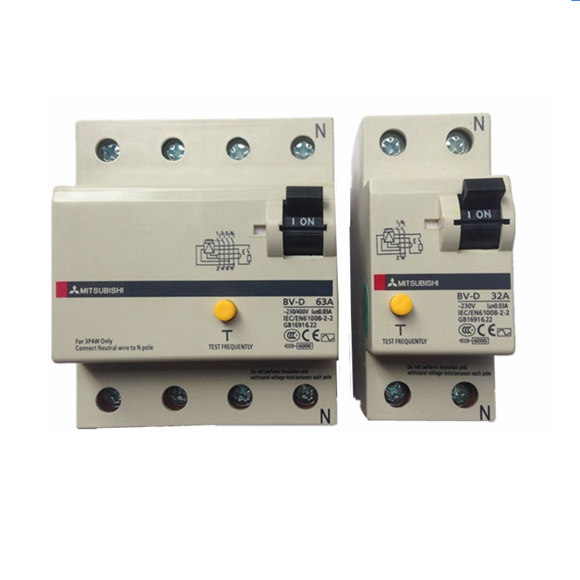

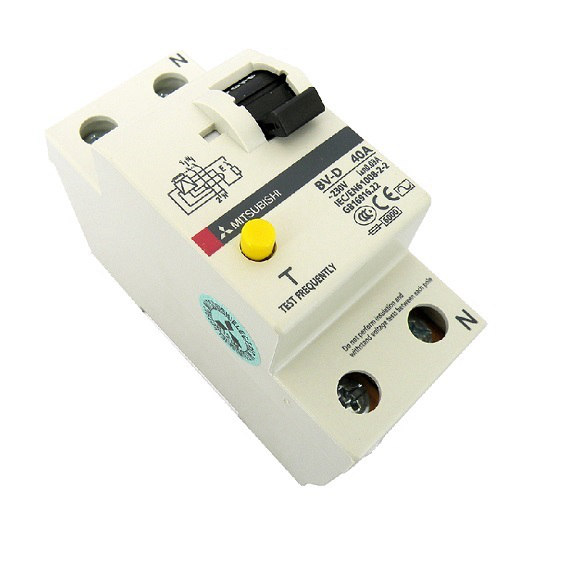

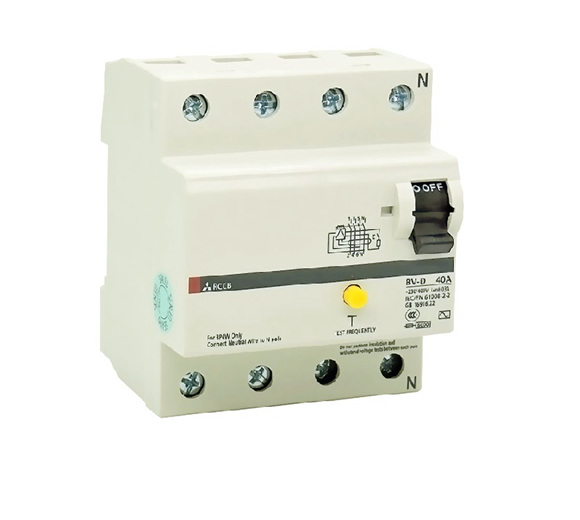

Image |
|
|
No. of poles [P] | 2(1+N)*1 | 4(3+N)*1 *3 |
Rated current [A]
at ambient temperature 30: |
25, 40, 63 | |
Rated voltage [VAC] | 230 | 230/400 |
Rated current sensitivity IDn [mA] | 30, 300 | |
Max. operating time at 5IDn [s] | 0.04 | |
Pulsating current sensitivity | Type AC | |
Rated conditional short-circuit current [kA] | 6 | |
Mass [kg] | 0.2 | 0.35 |
Rated making and breaking capacity Im [A] | 500(In 25,40A), 630(In63A) | |
Rated conditional short-circuit current Inc [kA] | 6 | |
Rated residual making and breaking capacity IDm [A] | 500(In 25,40A), 630(In63A) | |
Rated conditional residual short-circuit current IDc [kA] | 6 | |
Number of operating cycles
Without current |
8,000 | |
Number of operating cycles
With current |
8,000 | |
Type of overcurrent release | – | |
Mounting | IEC35mm rail | |
Applicable wire size | 1 to 25mm2 | |
Terminal connection | Solderless | |
Based on standard | IEC61008-2-2 | |
CE marking | EN61008-2-2 : Self-declaration | |
CCC | GB16916.22 |
