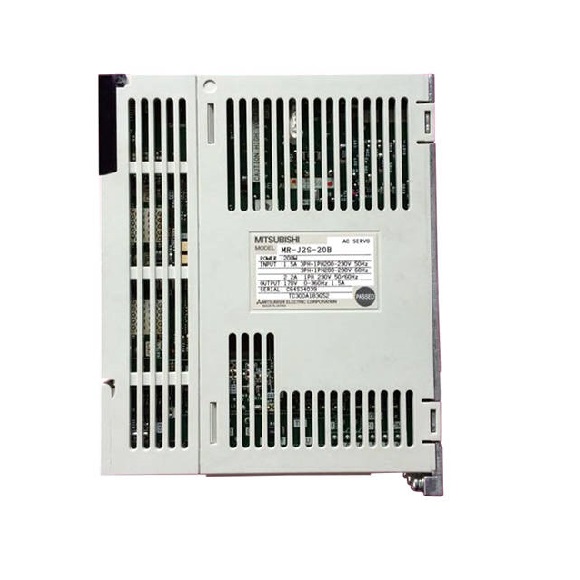

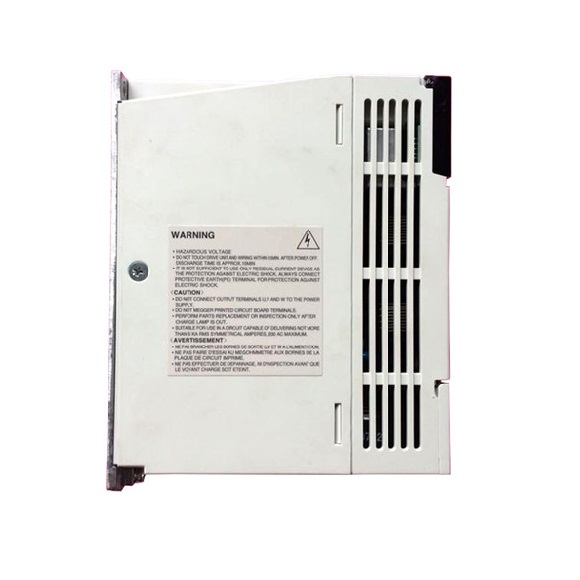

Mitsubishi Servo Drive MR-J2S 200W MR-J2S-20B

Series#: Mitsubishi Servo Drive

Product Details

  • Mitsubishi Servo Drive MR-J2S 200W MR-J2S-20B
  • We are First Class mitsubishi servo drive dealer and mitsubishi servo drive distributor in China.
  • We can Supply mitsubishi electric automation parts,such as Mitsubishi PLC,Mitsubishi Servo Motor&mitsubishi servo drive,Mitsubishi HMI,Mitsubishi VFD and So on.
  • 100% Original and new,In stock by Mitsubishi Automation
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Mitsubishi  Servo amplifier model MR-J2S-  10B  20B  40B  60B 70B(-UM)  100B  200B  350B  500B  700B  11KB  15KB  22KB  30KB  37KB  10B1  20B1  40B1
Mitsubishi Servo Drive MR-J2S MR-HP30KA


Control circuit power supply

Voltage/frequency

1-phase 200 to 230VAC 50/60Hz 1-phase 100 to 120VAC 50/60Hz
Permissible voltage fluctuation 1-phase 170 to 253VAC 1-phase  85 to 127VAC
Permissible frequency fluctuation ±5% maximum ±5% maximum
Power consumption (W) 50 50
Main circuit power supply  Voltage/frequency (Note 1) 3-phase 200 to 230VAC 50/60Hz or 1-phase 230VAC 50/60Hz (Note 2)  3-phase 200 to 230VAC 50/60Hz (Note 2) The servo amplifier’s main circuit power is supplied from the converter unit. 1-phase 100 to 120VAC 50/60Hz (Note 2)
Permissible voltage fluctuation 3-phase 200 to 230VAC:170 to 253VAC 1-phase 230VAC: 207 to 253VAC  3-phase 170 to 253VAC 1-phase  85 to 127VAC
Permissible frequency fluctuation ±5% maximum ±5% maximum
Control system Sine-wave PWM control/current control system
Dynamic brake Built-in (Note 3) External option Built-in (Note 3)
 Safety features Overcurrent shutdown, regeneration overvoltage shutdown, overload shutdown (electronic thermal), servo motor overheat protection, encoder fault protection, regeneration fault protection, undervoltage/sudden power outage protection, overspeed protection, excess error protection
Maximum command input at the position control Approximately 10Mpps
Structure Self-cooling, open (IP00) Fan cooling, open (IP00) Self-cooling, open (IP00)
Ambient temperature 0 to 55°C (32 to 131°F) (non freezing), storage: –20 to 65°C (–4 to 149°F) (non freezing)
Ambient humidity 90% RH maximum (non condensing), storage: 90% RH maximum (non condensing)
Atmosphere Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust
Elevation 1000m (3280ft) or less above sea level
Vibration 5.9m/s2 maximum
 Mass (kg [lb]) 0.7(1.5) 0.7(1.5) 1.1(2.4) 1.1(2.4) 1.7(3.7) 1.7(3.7) 2.0(4.4) 2.0(4.4) 4.9(10.8) 7.2(15.9) 15(33) 16(35.3) 20(44.1) 47(103.5) 47(103.5) 0.7(1.5) 0.7(1.5) 1.1(2.4)
Voltage/frequency (Note 1)  — 3-phase 200 to 230VAC50/60Hz

(Note 2)

 —
Permissible voltage fluctuation 3-phase 170 to 253VAC
Permissible frequency fluctuation ±5% max.


Control circuit power supply

Voltage/frequency

1-phase 200 to 230VAC50/60Hz
Permissible voltage fluctuation 1-phase 170 to 253VAC
Permissible frequency fluctuation ±5% max.
Power consumption (W) 50
Mass (kg [lb])
