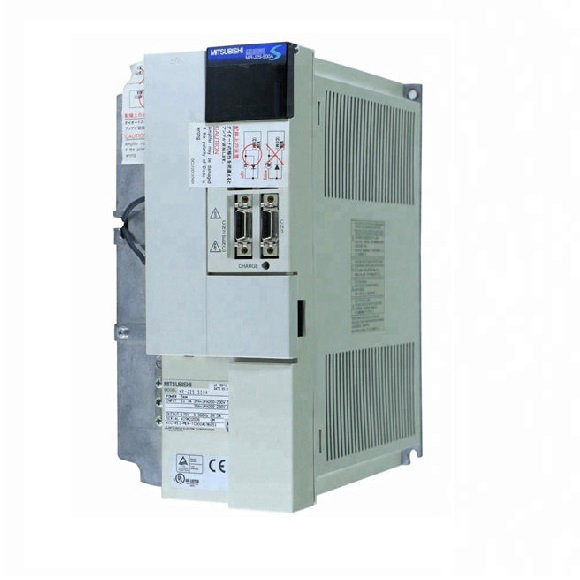

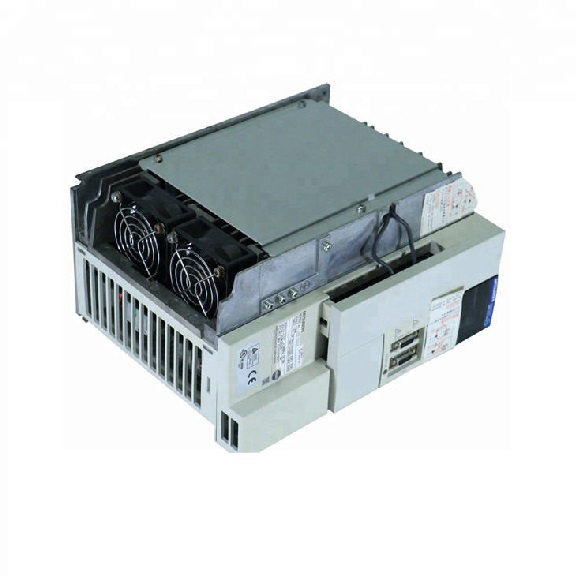

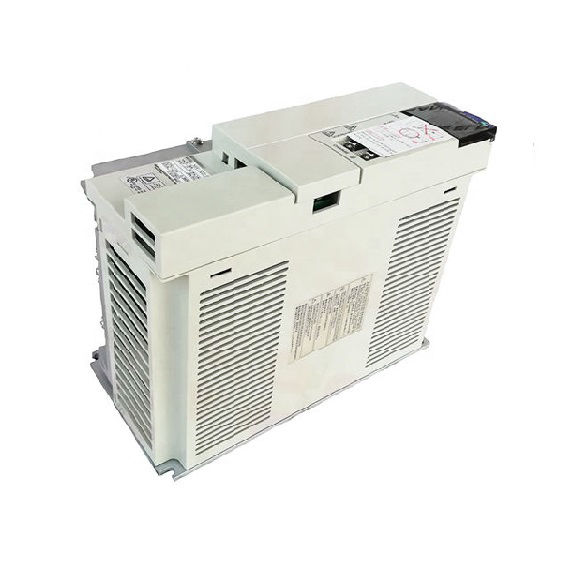

Mitsubishi Servo Drive MR-J2S 5kW MR-J2S-500A

Series#: Mitsubishi Servo Drive

Product Details

  • Mitsubishi Servo Drive MR-J2S 5kW MR-J2S-500A
  • We are First Class mitsubishi servo drive dealer and mitsubishi servo drive distributor in China.
  • We can Supply mitsubishi electric automation parts,such as Mitsubishi PLC,Mitsubishi Servo Motor&mitsubishi servo drive,Mitsubishi HMI,Mitsubishi VFD and So on.
  • 100% Original and new,In stock by Mitsubishi Automation
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Mitsubishi Servo amplifier MR-J2S-  10A  20A  40A  60A 70A(-UM)  100A  200A  350A  500A  700A  11KA  15KA  22KA  30KA  37KA  10A1  20A1  40A1
Mitsubishi Servo Drive MR-J2S MR-HP30KA
Servo amplifier

Voltage/frequency

1-phase 200 to 230VAC 50/60Hz 1-phase 100 to 120VAC
Control circuit power 50/60Hz
Permissible voltage fluctuation 1-phase 170 to 253VAC 1-phase 85 to 127VAC
Supply Permissible frequency fluctuation ±5% maximum ±5% maximum


Power consumption (W)

50 50
Main circuit power supply

Voltage/frequency (Note 1)

3-phase 200 to 230VAC 50/60Hz or 1-phase 230VAC 50/60Hz (Note 2)  3-phase 200 to 230VAC 50/60Hz (Note 2) 1-phase 100 to 120VAC 50/60Hz (Note 2)
Permissible voltage fluctuation 3-phase 200 to 230VAC: 170 to 253VAC 1-phase 230VAC: 207 to 253VAC  3-phase 170 to 253VAC  1-phase 85 to 127VAC
Permissible frequency fluctuation



±5% maximum unit. ±5% maximum
Control system Sine-wave PWM control/current control system
Dynamic brake Built-in (Note 3) External option Built-in (Note 3)
Overcurrent shutdown, regeneration overvoltage shutdown, overload shutdown (electronic thermal),
Safety features servo motor overheat protection, encoder fault protection, regeneration fault protection,
undervoltage/sudden power outage protection, overspeed protection, excess error protection


Maximum input pulse frequency

500kpps (when using differential receiver), 200 kpps (when using open collector)


Positioning feedback pulse

Resolution per encoder/servo motor rotation: 131072 p/rev
Position

Command pulse multiple

Electronic gear A/B multiple, A: 1 to 65535 or 131072, B: 1 to 65535 1/50 < A/B < 500


Torque limit

Set by parameters or external analog input (0 to +10VDC/maximum torque)


Speed control range

Analog speed command 1:2000, internal speed command 1:5000


Torque limit

Set by parameters or external analog input (0 to +10VDC/maximum torque)
Structure Self-cooling open (IP00) Fan cooling open (IP00) Self-cooling open (IP00)


Ambient temperature

0 to 55°C (32 to 131°F) (non freezing), storage: –20 to 65°C (–4 to 149°F) (non freezing)
Environ-

Ambient humidity

90% RH maximum (non condensing), storage: 90% RH maximum (non condensing)
ment

Atmosphere

Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust


Elevation

1000m (3280ft) or less above sea level


Vibration

5.9m/s2 maximum
