Mitsubishi VFDs Inverter 2.2kW FR-CS82S-100-60

Series#: Mitsubishi VFD

Product Details

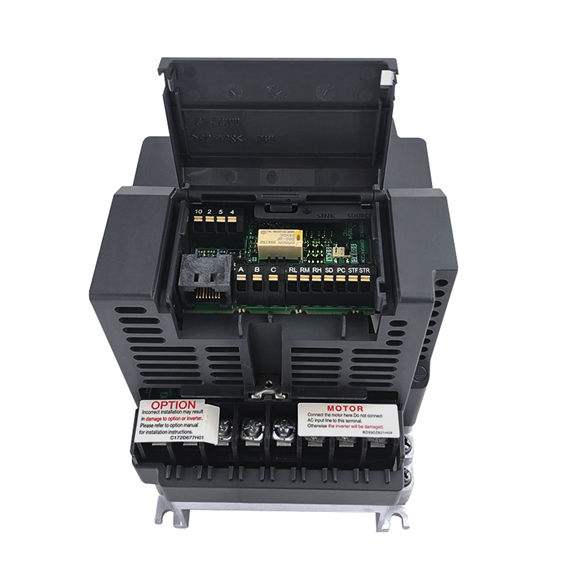

Mitsubishi VFDs Inverter 2.2kW FR-CS82S-100-60
Mitsubishi VFDs Inverter FR-CS84 0.4kW to 15kW
We are First Class Mitsubishi VFDs Inverter dealer and Mitsubishi VFDs Inverter distributor in China.
We can Supply mitsubishi electric automation parts,such as Mitsubishi PLC,Mitsubishi Servo Motor,Mitsubishi HMI,Mitsubishi VFD and So on,
100% Original and new,In stock by Mitsubishi Electric.
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Mitsubishi VFDs Inverter 2.2kW FR-CS82S-100-60

Mitsubishi VFDs Inverter FR-CS84 0.4kW to 15kW

Three-phase 400 V class

Model FR-CS84-[]		012	022	036	050	080	120	160	230	295
Applicable motor capacity (kW) *1		0.4	0.75	1.5	2.2	3.7	5.5	7.5	11	15
Output	Rated capacity (kVA) *2	0.9	1.7	2.7	3.8	6.1	9.1	12.2	17.5	22.5
	Rated current (A)*3	1.2(1.0)	2.2(1.9)	3.6(3.1)	5.0(4.3)	8.0(6.8)	12.0(10.2)	16.0(13.6)	23.0(19.6)	29.5(25.1)
	Overload current rating *4	150% 60 s, 200% 0.5 s (inverse-time characteristics).
	Rated voltage *5	Three-phase 380 to 480 V.
Power supply	Rated input AC voltage/frequency	Three-phase 380 to 480 V, 50/60 Hz.
	Permissible AC voltage fluctuation	325 to 528 V, 50/60 Hz.
	Permissible frequency fluctuation	±5%
	Power supply capacity (kVA) *6	1.5	2.5	4.5	5.5	9.5	12.0	17.0	20.0	28.0
Protective structure (IEC 60529)		Open type (IP20).
Cooling system		Natural.					Forced air.
Approx. mass (kg)		0.6	0.6	0.9	0.9	1.4	1.9	1.9	3.5	3.5

Single-phase 200 V class

Model FR-CS82S-[]		025	042	070	100
Applicable motor capacity (kW) *1		0.4	0.75	1.5	2.2
Output	Rated capacity (kVA) *2	1.0	1.7	2.8	4.0
	Rated current (A)*3	2.5(2.1)	4.2(3.6)	7.0(6.0)	10.0(8.5)
	Overload current rating *4	150% 60 s, 200% 0.5 s (inverse-time characteristics).
	Rated voltage *5	Three-phase 200 to 240 V
Power supply	Rated input AC voltage/frequency	Single-phase 200 to 240 V, 50/60 Hz
	Permissible AC voltage fluctuation	170 to 264 V, 50/60 Hz
	Permissible frequency fluctuation	±5%
	Power supply capacity (kVA) *6	1.5	2.3	4.0	5.2
Protective structure (IEC 60529)		Open type (IP20).
Cooling system		Natural.			Forced air.
Approx. mass (kg)		0.6	0.6	1.4	1.4

*1 The applicable motor capacity indicated is the maximum capacity applicable for use of the Mitsubishi Electric 4-pole standard motor.

*2 The rated output capacity at an output voltage of 230 V.

*3 When using the inverter in a surrounding air temperature of 50°C, the rated current is decreased to the value shown in the parentheses.

*4 The percentage of the overload current rating is the ratio of the overload current to the inverter’s rated output current. For repeated duty, allow time for the inverter and motor to return to or below the temperatures under 100% load. If the automatic restart after instantaneous power failure function (Pr. 57) or power failure stop function (Pr. 261) is set and power supply voltage is low while load becomes bigger, the bus voltage decreases to power failure detection level and load of 100% or more may not be available.

*5 The maximum output voltage does not exceed the power supply voltage. The maximum output voltage can be changed within the setting range. However,

the maximum point of the voltage waveform at the inverter output side is the power supply voltage multiplied by about 2 .

*6 The power supply capacity is the value at the rated output current. The input power impedances (including those of the input reactor and cables) affect the value.
