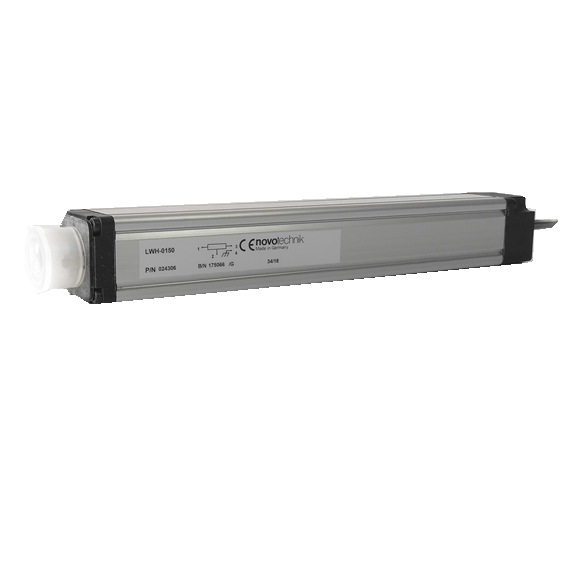

  • LWH 0150 1
  • LWH
  • LWH
  • LWH 0150 1 1
  • LWH
  • LWH
  • LWH 0150 1
  • LWH
  • LWH
  • LWH 0150 1 1
  • LWH

Novotechnik Potentiometric Linear Position Transducers TLH Series

Series#: Novotechnik Linear Position Transducers

Product Details

  • Novotechnik Linear Position Transducers TLH Series
  • Novotechnik Position Transducers potentiometric Series TLH  up to 3000 mm
  • We are First Class Novotechnik Transducer sensor dealer and Novotechnik Transducer sensor distributor in China.
  • We can Supply all kinds of  Novotechnik Transducer sensor parts,such as Novotechnik Linear Position Transducers,Novotechnik Rotary Sensor,Novotechnik Signal Conditioners and ect.
  • All parts are 100% Original and new in stock by novotechnik and fast delivery time within 1 day
  • 100% after sale service and technology Support
  • MOQ: 1pcs
Qty:

Specification

Type designations TLH-0100 TLH-0130 TLH-0150 TLH-0225 TLH-0300 TLH-0360 TLH-0450 TLH-0500 TLH-0600 TLH-0750 TLH-0900 TLH-1000 TLH-1250 TLH-1500 TLH-1750 TLH-2000 TLH-2250 TLH-2500 TLH-2750 TLH-3000
P/N Code 025304  025305  025306 025309  025312  025314  025318  025320  025324  025330  025336  025340  025350  025360  025370  025380  025381  025383  025384  025385
Defined electrical range 100 130 150 225 300 360 450 500 600 750 900 1000 1250 1500 1750 2000 2250 2500 2750 3000 mm
Electrical stroke 102 132 152 228 304 366 457 508 610 762 914 1016 1270 1520 1770 2020 2270 2520 2770 3020 mm
Nominal resistance 3 3 5 5 5 5 5 5 5 10 10 10 10 20 20 20 20 20 20 20 kΩ
Resistance tolerance 20 ±%
Independent linearity 0.1 0.09 0.08 0.07 0.06 0.05 0.05 0.05 0.05 0.04 0.04 0.04 0.03 0.03 0.03 0.02 0.02 0.02 0.02 0.02 ±%
Repeatability 0.01 mm
Recommended operating wiper current < 1 µA
Maximum wiper current (due to system malfunction) 10 mA
Maximum permissible applied voltage 42 V
Effective temperature coefficient of the output-to-applied voltage ratio typical 5 ppm/K
Insulation resistance (500 VDC) > 10
Dielectric strength (500 VAC, 50 Hz) < 100 µA
Mechanical Data
Body length (dimension A) 250 280 300 376 452 514 605 656 758 910 1062 1164 1418 1668 1918 2168 2418 2668 2918 3168 ±2 mm
Mechanical stroke (dimension B) 108 138 158 234 310 372 463 514 616 768 920 1022 1276 1526 1776 2026 2276 2526 2776 3026 ±2 mm
Total weight 440 480 500 620 730 820 950 1020 1170 1390 1600 1750 2110 2470 2830 3200 3560 3920 4280 4650 g
Weight of sliding part 45 g
