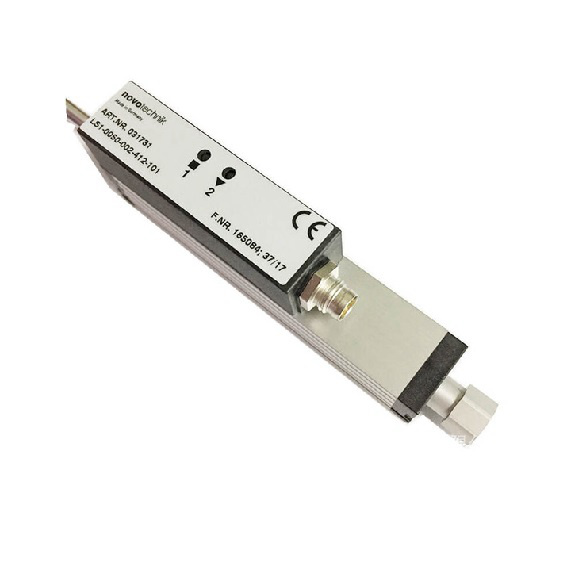

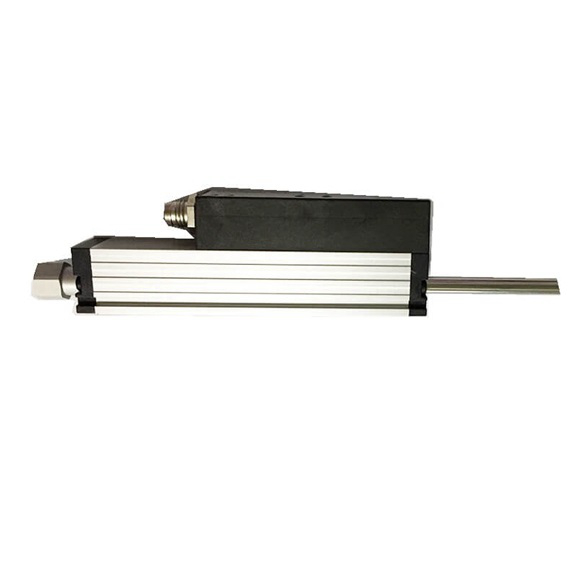

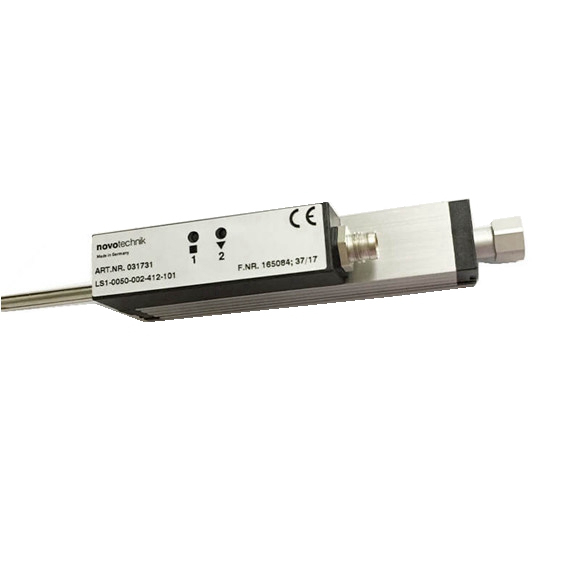

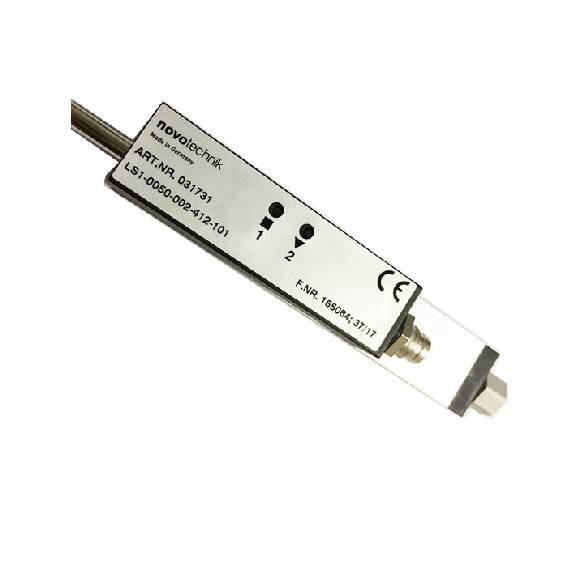

Novotechnik NOVOPAD Position Transducers Series LS1 with analog interface

Series#: Novotechnik Linear Position Transducers

Product Details

  • Novotechnik NOVOPAD Position Transducers Series LS1 with analog interface
  • We are First Class Novotechnik Transducer sensor dealer and Novotechnik Transducer sensor distributor in China.
  • We can Supply all kinds of  Novotechnik Transducer sensor parts,such as Novotechnik Linear Position Transducers,Novotechnik Rotary Sensor,Novotechnik Signal Conditioners and ect.
  • All parts are 100% Original and new in stock by novotechnik and fast delivery time within 1 day
  • 100% after sale service and technology Support
  • MOQ: 1pcs
Qty:

Specification

Type designations LS1 0025 LS1 0050 LS1 0075 LS1 0100 LS1 0150 LS1 0200
Electrical measuring range 25 50 75 100 150 200 mm
Absolute linearity < ± 0.1 < ± 0.15 % F.S.
Tolerance of electr. zero point ± 0.5 mm
Output signal voltage or current 0.1…10 VDC (by load 470 kΩ) allowed load > 10 kΩ 10. 0.1 VDC (by load 470 kΩ) allowed load > 10 kΩ

4.  20 mA (burden < 500 Ω)

20.  4 mA (burden < 500 Ω)

Internal resistance of voltage output 120
Output, short-circuit-proof against supply max. 30 VDC and GND (permanent)
Update Rate high speed mode > 950; low speed mode > 50 Hz
Repeatability high speed mode < 10 mV, typical < 3 mV low speed mode < 5 mV, typical < 2 mV high speed mode < 16 µA, typical < 5 µA low speed mode < 8 µA, typical < 3 µA mV mV

µA

µA

Supply voltage 16…30 VDC
Supply voltage ripple max. 10 % Vss
Power drain without load < 1 W
Temperature coefficient < 50 ppm/K
Overvoltage protection < 40 (permanent) VDC
Polarity protection up to Umax VDC
Insulation resistance (500 VDC) > 10 MΩ
Mechanical Data
Body length (dimension A) 63 88 113 138 188 238 +1 mm
Mechanical stroke (dimension B) 30 55 80 105 155 205 ±1,5 mm
Weight approx. with cable

140



160



170



190



220



260



g

with connector 86 107 132 150 190 230 g
Operating force (horizontal) ≤ 0.3 N
Mobility of ball coupling ± 1 mm parallel offset, ± 2.5° angular offset
Maximum permitted tightening torque for fixing screws

140



Ncm



Environmental Data

Operating temperature range -40…+85 with connector

-30…+100 with cable

°C

°C

Operating humidity range 0…95 (no condensation) %RH
Shock per DIN IEC 100 (11 ms) (single hit) g
Vibration per DIN IEC 20 (10…2000 Hz, Amax = 0.75 mm) g
Protection class IP 40 DIN EN 60529
Adjustment speed max. 5 m/s
Acceleration speed max. 5 g
Life > 100×106 movements
MTTF (ISO 13849-1,

parts count method, w/o load)

24 years
