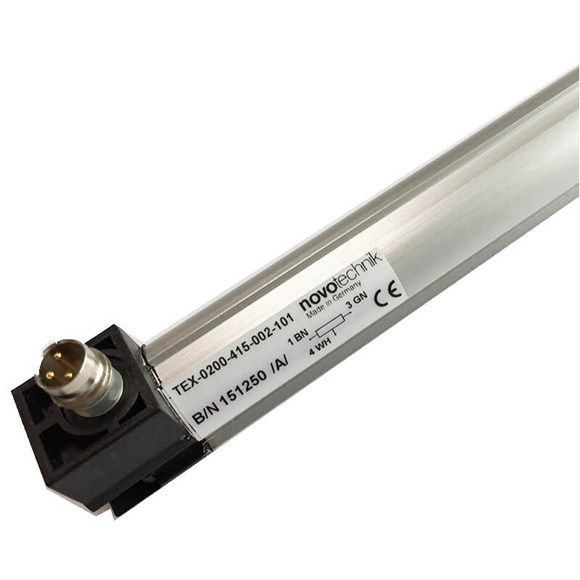

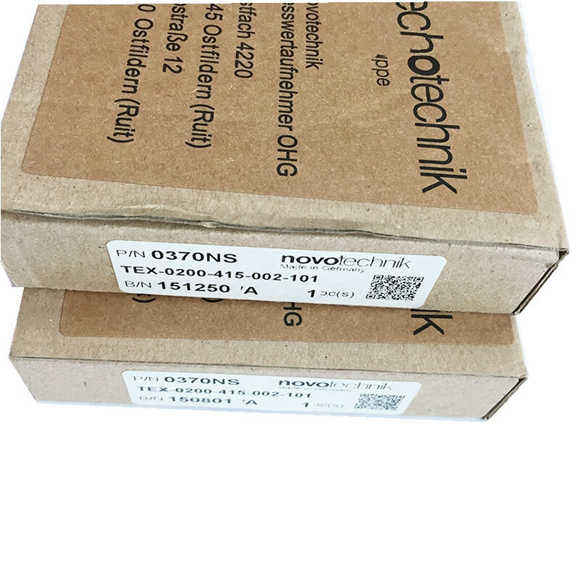

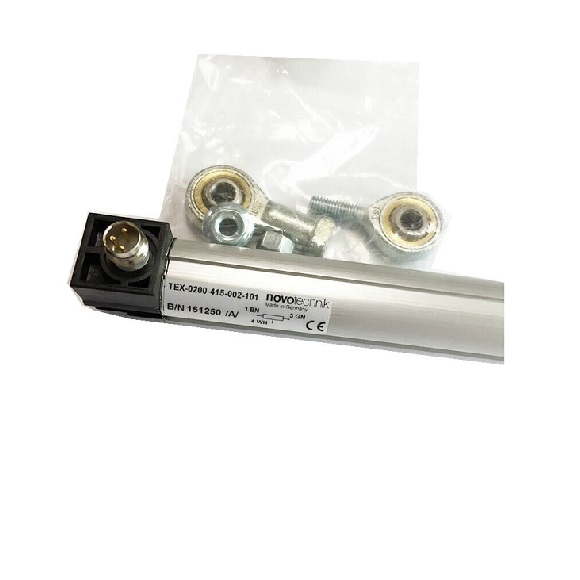

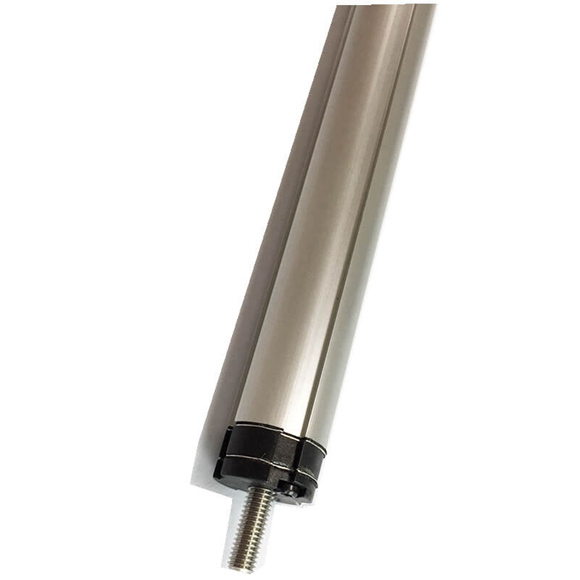

Novotechnik Potentiometric position transducer TEX Pivot Head Mounting

Series#: Novotechnik Linear Position Transducers

Product Details

  • Novotechnik Potentiometric position transducer TEX Pivot Head Mounting
  • We are First Class Novotechnik Transducer sensor dealer and Novotechnik Transducer sensor distributor in China.
  • We can Supply all kinds of  Novotechnik Transducer sensor parts,such as Novotechnik Linear Position Transducers,Novotechnik Rotary Sensor,Novotechnik Signal Conditioners and ect.
  • All parts are 100% Original and new in stock by novotechnik and fast delivery time within 1 day
  • 100% after sale service and technology Support
  • MOQ: 1pcs
Qty:

Specification

Type designations TEX-0010 TEX-0025 TEX-0050 TEX-0075 TEX-0100 TEX-0125 TEX-0150 TEX-0175 TEX-0200 TEX-0250 TEX-0300
Defined electrical range 10 25 50 75 100 125 150 175 200 250 300 mm
Electrical range 12 27 52 77 102 130 155 180 205 255 305 mm
Nominal resistance 1 1 2 3 4 5 6 7 8 10 12 kΩ
Resistance tolerance 20 ±%
Independent linearity 0.25 0.2 0.1 0.1 0.1 0.05 0.05 0.05 0.05 0.05 0.05 ±%
Repeatability 0.01 mm
Recommended operating wiper current < 1 µA
Max. wiper current in case of mulfunction 10 mA
Max. permissible applied voltage 42 V
Effective temperature coefficient of the output-to-applied voltage ration

typical 5



ppm/K

Insulation resistance (500 VDC)

>10



MΩ

Dielectric strength (500 VAC, 50 Hz)

<100



µA

Mechanical Data
Body length (dimension A) 63 78 103 128 153 194 219 244 269 319 369 ±2 mm
Mechanical stroke (dimension B) 14 29 54 79 104 132 157 182 207 257 307 ±2 mm
Min. distance between pivot heads

nominal (dim. C), version_15, dim. D=18 mm



114.5



129.5



154.5



179.5



204.5



245.5



270.5



295.5



320.5



370.5



420.5

Min. distance between pivot heads

nominal (dim. C), version_13, dim. D=25 mm



121.5



136.5



161.5



186.5



211.5



252.5



277.5



302.5



327.5



377.5



427.5

Weight approx.
cable version TEX- -_1_-002-202 111 116 126 136 146 186 196 206 216 236 256 g
connector version TEX- -_1_-002-101 79 84 94 104 114 154 164 174 184 204 224 g
Operating force
horizontal < 3.0 (at RT 20° C) N
Environmental Data
Temperature range -40 …+85 °C
Operating humidity range 0…95 (no condensation) % R.H.
Vibration 5…2000 Hz
Amax = 0.75

amax = 20

mm g
Shock 50 g
6 ms
Life > 100 x 106 typ. movements
Operating speed 10 m/s max.
Protection class IP54 DIN EN 60529
