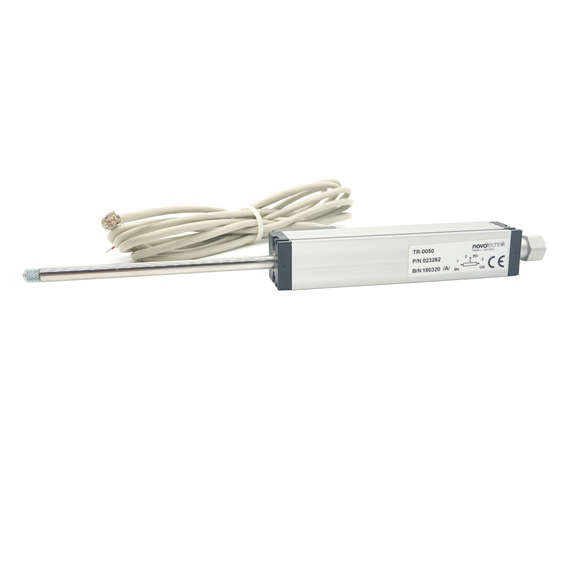

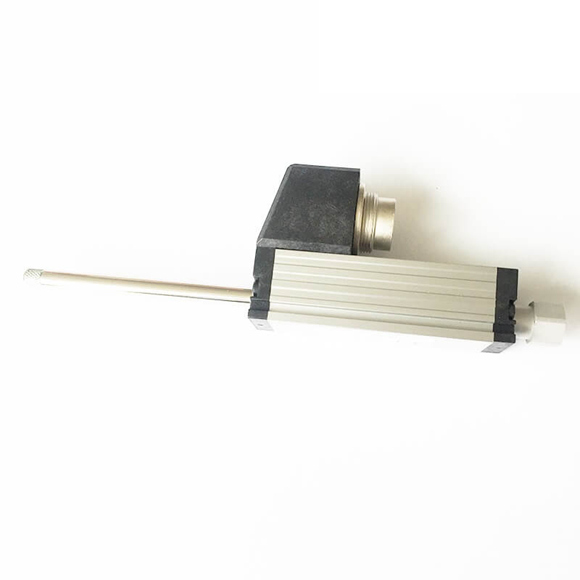

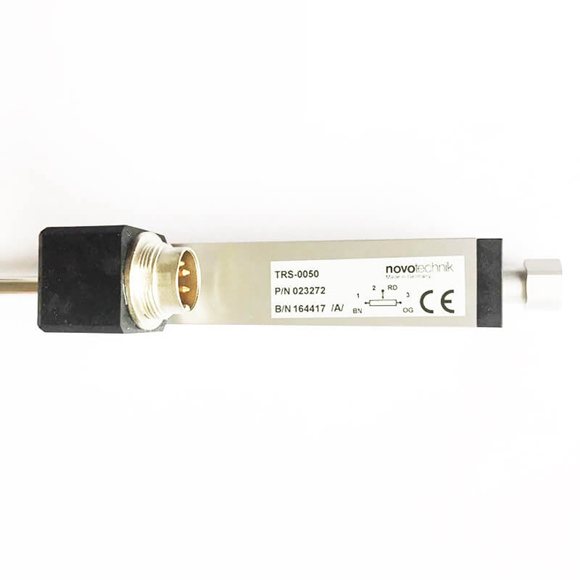

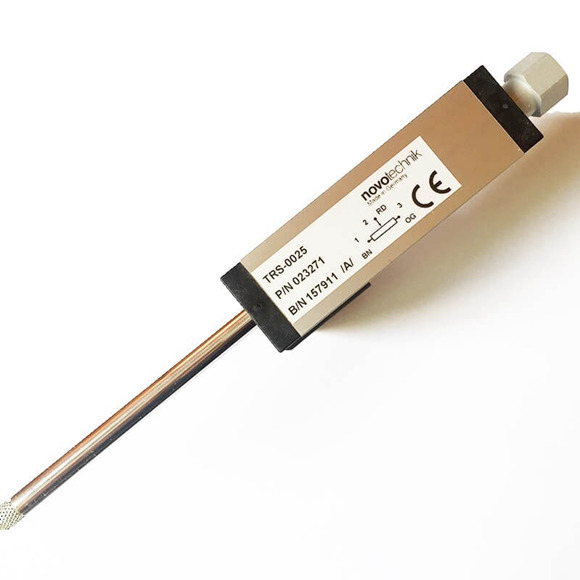

Novotechnik Potentiometric position transducer TR / TRS Series with Return Spring
We are First Class Novotechnik Transducer sensor dealer and Novotechnik Transducer sensor distributor in China.
We can Supply all kinds of Novotechnik Transducer sensor parts,such as Novotechnik Linear Position Transducers,Novotechnik Rotary Sensor,Novotechnik Signal Conditioners and ect.
All parts are 100% Original and new in stock by novotechnik and fast delivery time within 1 day
100% after sale service and technology Support
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Type	TR/TRS-0010…	TR/TRS-0025…	TR/TRS-0050…	TR/TRS-0075…	TR/TRS-0100…
Dimensions	See dimension drawing
Length of housing (dimension A +1 mm)	48 mm	63 mm	94.4 mm	134.4 mm	166 mm
Mechanical travel (dim. B ±1.5 mm)	15 mm	30 mm	55 mm	80 mm	105 mm
Flange nut SW-10 (dimension C)	7 mm	12 mm	12 mm	12 mm	12 mm
Excess length of push rod in end position (dimension D)	6 mm	32 mm	32 mm	32 mm	32 mm
Weight (cable/connector version)	80/- g	120/74 g	150/100 g	180/128 g	200/150 g
Weight actuating rod with wiper	18 g	25 g	36 g	48 g	57 g
Operating force, horizontal (extended/retracted)	≤ 3.5 / 5 N	≤ 2.5 / 5 N	≤ 2.5 / 5 N	≤ 2.5 / 5 N	≤ 2.5 / 5 N
Operating force to end stop	max 5 N
Max. operating frequency*	20 Hz	18 Hz	14 Hz	11 Hz	10 Hz

P/N	Type	Defined electr. measuring range	Electrical connection	Independent linearity
400023260	TR-0010	0 … 10 mm	Cable	≤ ±0.25 %FS	Preferred type
400023261	TR-0025	0 … 25 mm	Cable	≤ ±0.2 %FS	Preferred type
400023262	TR-0050	0 … 50 mm	Cable	≤ ±0.15 %FS	Preferred type
400023263	TR-0075	0 … 75 mm	Cable	≤ ±0.1 %FS	Preferred type
400023264	TR-0100	0 … 100 mm	Cable	≤ ±0.075 %FS	Preferred type
400107044	TRS-0010-101	0 … 10 mm	Connector M8	≤ ±0.25 %FS	Preferred type
400107045	TRS-0025-101	0 … 25 mm	Connector M8	≤ ±0.2 %FS	Preferred type
400107047	TRS-0050-101	0 … 50 mm	Connector M8	≤ ±0.15 %FS	Preferred type
400107051	TRS-0075-101	0 … 75 mm	Connector M8	≤ ±0.1 %FS	Preferred type
400107053	TRS-0100-101	0 … 100 mm	Connector M8	≤ ±0.075 %FS	Preferred type
400023271	TRS-0025	0 … 25 mm	Connector M16	≤ ±0.2 %FS	Preferred type
400023272	TRS-0050	0 … 50 mm	Connector M16	≤ ±0.15 %FS	Preferred type
400023273	TRS-0075	0 … 75 mm	Connector M16	≤ ±0.1 %FS	Preferred type
400023274	TRS-0100	0 … 100 mm	Connector M16	≤ ±0.075 %FS	Preferred type
400023265	TR-0025-.1	0 … 25 mm	Cable	≤ ±0.1 %FS
400023266	TR-0050-1	0 … 50 mm	Cable	≤ ±0.1 %FS
400023267	TR-0050-05	0 … 50 mm	Cable	≤ ±0.05 %FS
400023268	TR-0075-05	0 … 75 mm	Cable	≤ ±0.05 %FS
400023269	TR-0100-05	0 … 100 mm	Cable	≤ ±0.05 %FS
400107046	TRS-0025-1-101	0 … 25 mm	Connector M8	≤ ±0.1 %FS
400107050	TRS-0050-1-101	0 … 50 mm	Connector M8	≤ ±0.1 %FS
400107049	TRS-0050-05-101	0 … 50 mm	Connector M8	≤ ±0.05 %FS
400107052	TRS-0075-05-101	0 … 75 mm	Connector M8	≤ ±0.05 %FS
400107054	TRS-0100-05-101	0 … 100 mm	Connector M8	≤ ±0.05 %FS
400023275	TRS-0025-1	0 … 25 mm	Connector M16	≤ ±0.1 %FS
400023276	TRS-0050-1	0 … 50 mm	Connector M16	≤ ±0.1 %FS
400023277	TRS-0050-05	0 … 50 mm	Connector M16	≤ ±0.05 %FS
400023278	TRS-0075-05	0 … 75 mm	Connector M16	≤ ±0.05 %FS
400023279	TRS-0100-05	0 … 100 mm	Connector M16	≤ ±0.05 %FS
