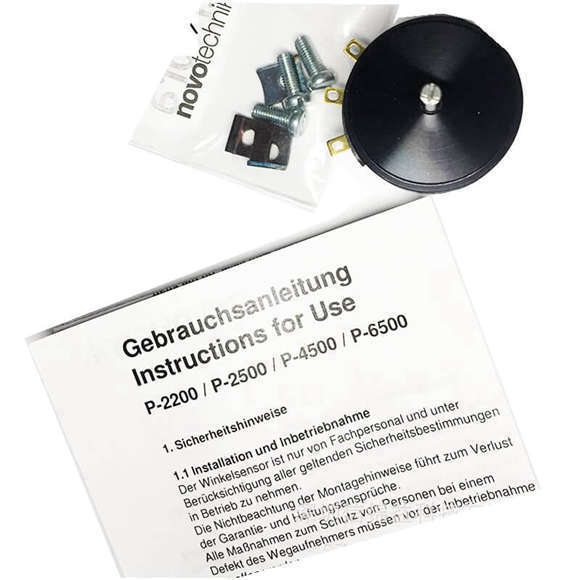

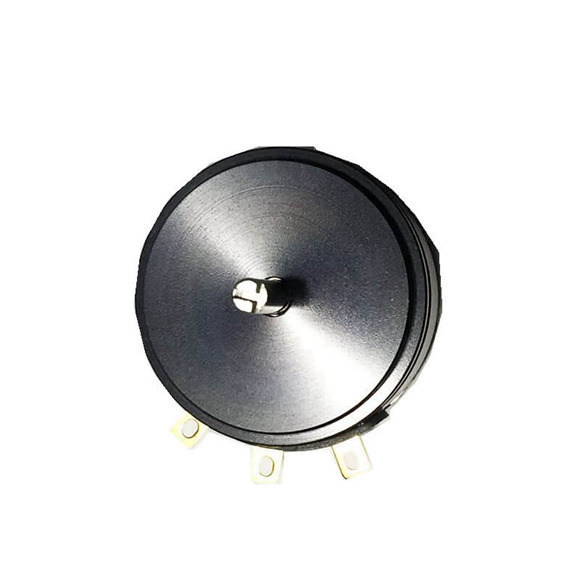

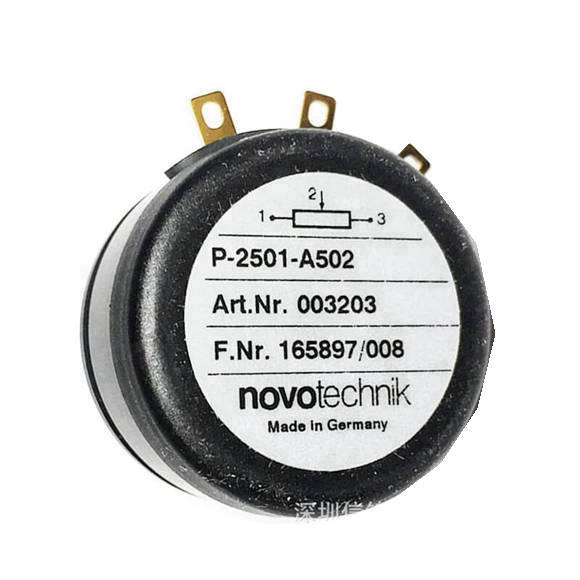

Type | P-2501-A102 | P-2501-A202 | P-2501-A502 |
Measuring range | 345° ±2° | ||
Defined electr. measuring range | 339° | ||
Output signal | Voltage divider | ||
Resistance value | 1 kΩ | 2 kΩ | 5 kΩ |
Resistance tolerance | ± 10 % | ||
Independent linearity | ≤ ±0.2 %FS | ||
Repeatability | ≤ ±0.003 % (0,01°) | ||
Recommended operating wiper current | ≤ 1 µA | ||
Max. wiper current in case of malfunction | 10 mA | ||
Max. permissible supply voltage Ub | 42 VDC | ||
Effective temp. coefficient of
the output-to-applied voltage ratio |
typ. 5 ppm/K | ||
Insulation resistance (500 VDC) | ≥ 10 MΩ | ||
Environmental Data | |||
Max. operational speed | 10,000 rpm | ||
Vibration IEC 60068-2-6 | 20 g, 5 … 2000 Hz, Amax = 0.75 mm | ||
Shock IEC 60068-2-27 | 50 g, 11 ms | ||
Protection class DIN EN 60529 | IP40 | ||
Operating temperature | -40 … +100°C | ||
Life | typ. > 100 Mio. movements |
