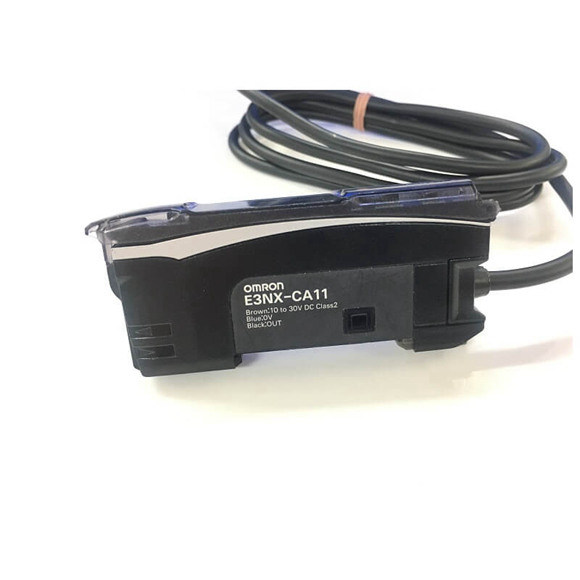

PNP output | E3NX-CA41 | E3NX-CA8 | E3NX-CA51 | E3NX-CA0 | ||||||||
Connecting method | Pre-wired | Wire-saving Connector | Pre-wired | Connector for Sensor Communications Unit | ||||||||
Outputs | 1 output | 2 outputs | — *3 | |||||||||
External input | — | 1 input *2 | ||||||||||
Light source (wavelength) | White LED (420 to 700 nm) | |||||||||||
Supply voltage | 10 to 30 VDC, including 10% ripple (p-p) | Supplied from the connector through the Sensor Communications Unit. | ||||||||||
Power consumption *4 | At Power Supply Voltage of 24 VDCNormal mode: 960 mW max. (Current consumption: 40 mA max.) Eco function ON: 720 mW max. (Current consumption: 30 mA max.) Eco function LO: 800 mW max. (Current consumption: 33 mA max.) | |||||||||||
Control output |
Load power supply voltage: 30 VDC max., open-collectoroutput
Load current: Groups of 1 to 3 Amplifiers: 100 mA max., Groups of 4 to 30 Amplifiers: 20 mA max. (Residual voltage: At load current of less than 10 mA: 1 V max.) At load current of 10 to 100 mA: 2 V max. OFF current: 0.1 mA max. |
— |
||||||||||
Indications | 7-segment displays (Sub digital display: green, Main digital display: white) Display direction: Switchable between normal and reversed.OUT indicator (orange), NO/NC indicator (orange), Smart Tuning indicator (blue), and OUT selection indicator (orange, only on models with 2 outputs) | |||||||||||
Protection circuits | Power supply reverse polarity protection, output short-circuit protection, and output reverse polarity protection | Power supply reverse polarity protection | ||||||||||
Sensing method | Contrast Mode: Light intensity discrimination for RGB (initial state/after 2-point tuning) (R+G+B light intensity discrimination for 1-point tuning)Color Mode: RGB ratio discrimination | |||||||||||
Super-high-speed Mode (SHS) *5 | Operate or reset: 50 ms (only in Contrast Mode) | |||||||||||
High-speed Mode (HS) | Operate or reset: 250 ms | |||||||||||
Standard Mode (Stnd) | Operate or reset: 1 ms | |||||||||||
Giga-power Mode (GIGA) | Operate or reset: 16 ms | |||||||||||
Sensitivity adjustment | Smart Tuning (2-point tuning, full autotuning, or 1-point tuning (1% to 99%)) or manual adjustment | |||||||||||
Maximum connectable Units | 30 Units | 30 Units (When connected to OMRON NJ-series Unit) | ||||||||||
Super-high-speed Mode (SHS) *5 | — | |||||||||||
High-speed Mode (HS) | 10 Units | |||||||||||
Standard Mode (Stnd) | 10 Units | |||||||||||
Giga-power Mode (GIGA) | 10 Units |
