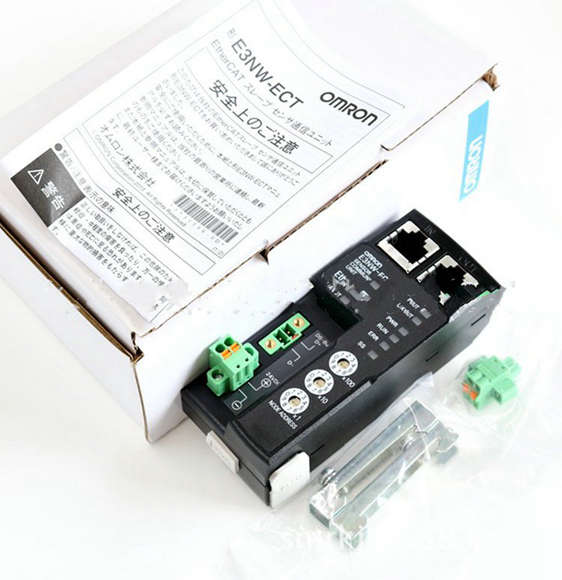

Omron Communications Sensor Unit E3NW-ECT

Series#: Omron Fiber Sensors

Product Details

Qty:

Specification

Item Model E3NW-ECT








Connectable Sensor Amplifier Units

N-Smart

Smart Fiber Amplifier Unit: E3NX-FA0

Smart Fiber Amplifier Unit (Infrared models): E3NX-FAH0 Smart Fiber Amplifier Unit (2-channel models): E3NX-MA0 Color Fiber Amplifier Unit: E3NX-CA0 *1

Smart Laser Amplifier Unit: E3NC-LA0

Smart Laser Amplifier Unit (CMOS type): E3NC-SA0 Smart Proximity Amplifier Unit: E2NC-EA0

E2NC-EA10 E2NC-EA40

Contact-Type Smart Amplifier Unit: E9NC-TA0 *2

Power supply voltage 24 VDC (20.4 to 26.4 V)
Power and current consumption 2.4 W max. (Not including the power supplied to Sensors.), 100 mA max. (Not including the current supplied to Sensors.)
Indicators L/A IN indicator (green), L/A OUT indicator (green), PWR indicator (green),

RUN indicator (green), ERROR indicator (red), and SS (Sensor Status) indicator (green/red)

Vibration resistance (destruction) 10 to 60 Hz with a 0.7-mm double amplitude, 50 m/s2 at 60 to 150 Hz, for 1.5 hours each in X, Y, and Z directions
Shock resistance (destruction) 150 m/s2 for 3 times each in X, Y, and Z directions
Ambient temperature range Operating: 0 to 55°C; *3 Storage: -30 to 70°C (with no icing or condensation)
Ambient humidity range Operating and storage: 25% to 85% (with no condensation)
Maximum connectable Sensors *3 *4 30 (when connected to an OMRON NJ-series Controller, 16 for E2NC-EA10/EA40)
Maximum connectable Distributed Sensor Units 8
Insulation resistance 20 MΩ min. (at 500 VDC)
Dielectric strength 500 VAC at 50/60 Hz for 1 min
Mounting method 35-mm DIN track – mounting
Weight (packed state/Unit only) Approx. 185 g/approx. 95 g
Materials Polycarbonate
Accessories Power supply connector, communications connector for E3NW-DS connection, DIN Track End Plates (2 pieces), and instruction manual
