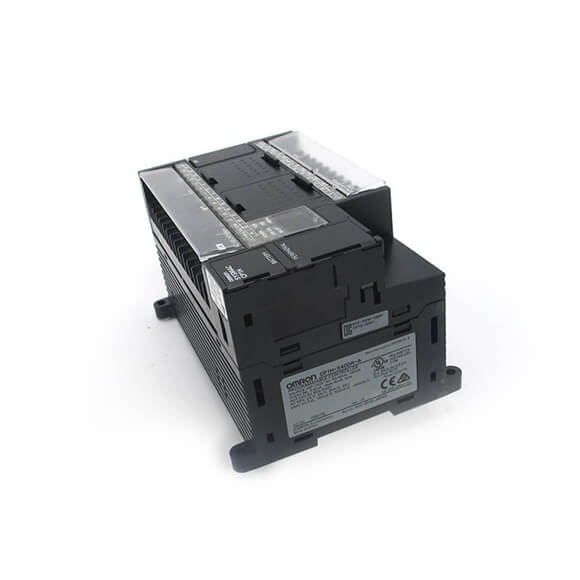

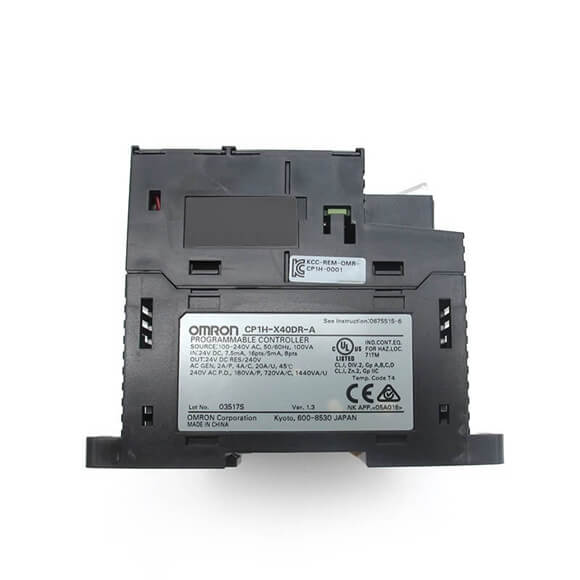

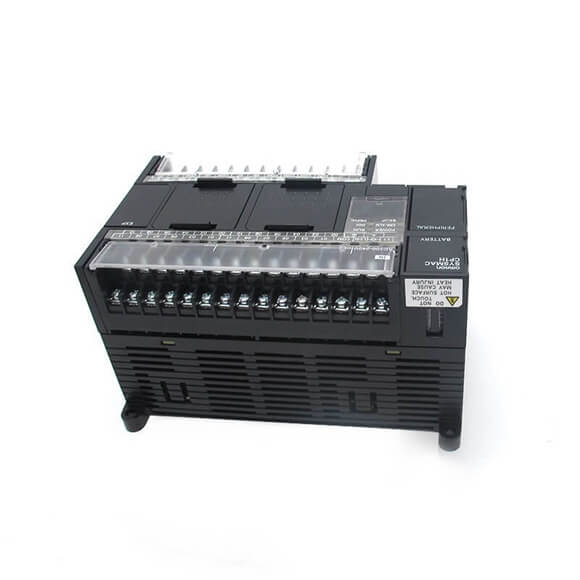

| AC power supply models | DC power supply models | ||
| Model | CP1H-@@@-A | CP1H-@@@-D | |
| Power supply | 100 to 240 VAC 50/60 Hz | 24 VDC | |
|
Operating voltage range |
85 264 VAC |
20.4 to 26.4 VDC
(with 4 or more Expansion Units and Expansion I/O Units: 21.6 to 26.4 VDC) |
|
| Power consumption | 100 VA max. (CP1H-@@@-A)(page 28) | 50 W max. (CP1H-@@@-D)(page 28) | |
|
Inrush current (See note.) |
100 to 120 VAC inputs:
20 A max. (for cold start at room temperature) 8 ms max. 200 to 240 VAC inputs: 40 A max. (for cold start at room temperature), 8 ms max. |
30 A max. (for cold start at room temperature) 20 ms max. |
|
| External power supply | 300 mA at 24 VDC | None | |
| Insulation resistance | 20 MΩ min. (at 500 VDC) between the external AC terminals and GR terminals | No insulation between primary and secondary for DC power supply | |
| Dielectric strength | 2,300 VAC at 50/60 Hz for 1 min between the external AC and GR terminals, leakage current: 5 mA max. | No insulation between primary and secondary for DC power supply | |
| Noise immunity | Conforms to IEC 61000-4-4. 2 kV (power supply line) | ||
| Vibration resistance | Conforms to JIS C60068-2-6. 10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, acceleration: 9.8 m/s2 in X, Y, and Z directions for 80 minutes each. Sweep time: 8 minutes ´ 10 sweeps = total time of 80 minutes) | ||
| Shock resistance | Conforms to JIS C60068-2-27. 147 m/s2 three times each in X, Y, and Z directions | ||
| Ambient operating tempera- ture | 0 to 55°C | ||
| Ambient humidity | 10% to 90% (with no condensation) | ||
| Ambient operating environ- ment | No corrosive gas | ||
| Ambient storage temperature | -20 to 75°C (Excluding battery.) | ||
| Power holding time | 10 ms min. | 2 ms min. | |
