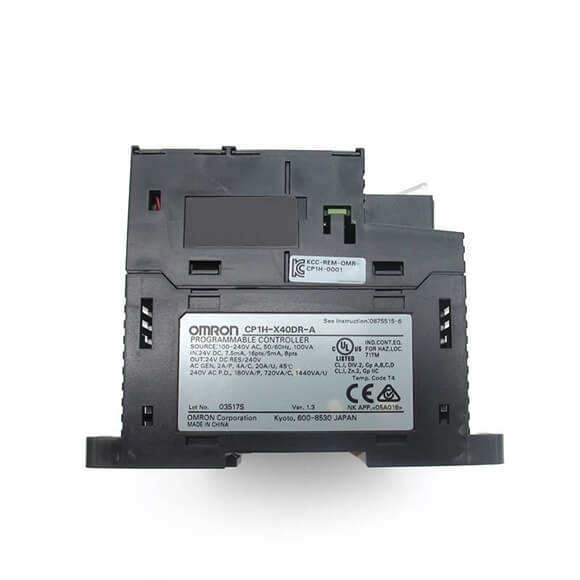

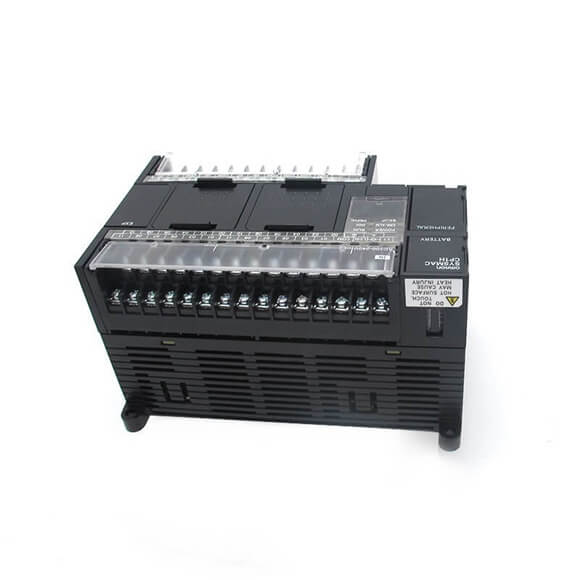

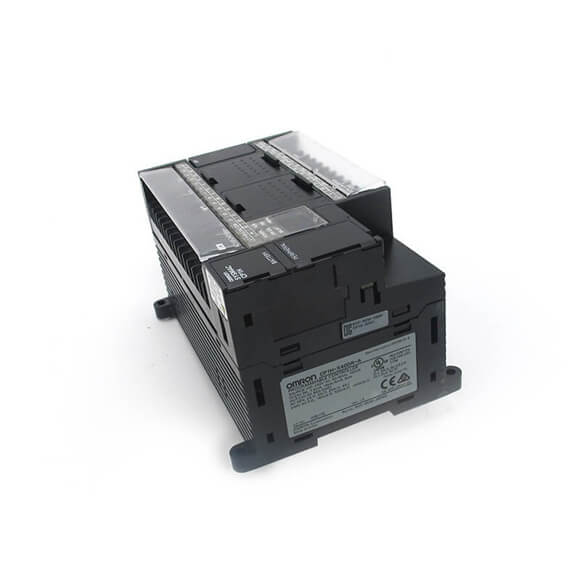

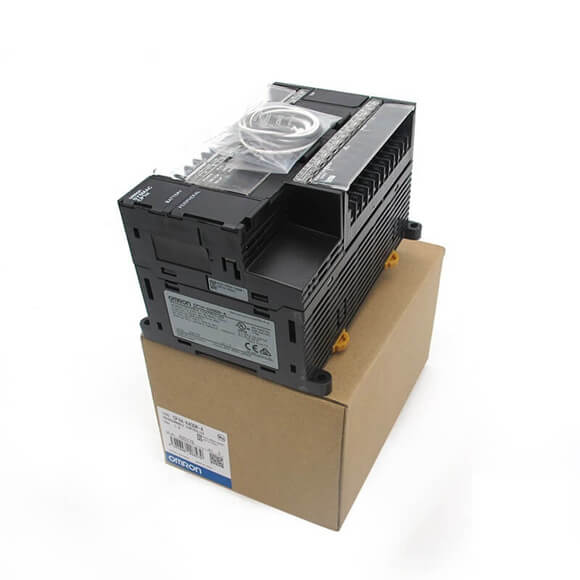

Omron CP series CP1H CPU Unit CP1H-X40DT-D-SC

Series#: Omron PLC

Product Details

Omron CP series CP1H CPU Unit CP1H-X40DT-D-SC CP1H-XA40DR-A CP1H-XA40DT-D
Omron PLC Controller Module CP-series
We are First Class Omron plc dealer and omron plc distributor in China.
We can Supply Omron automation parts,such as Omron PLC,Omron Servo Motor,Omron HMI,Omron VFD and Omron Relay and Omron Sensor and ect.
100% Original and new,In stock by Omron Automation
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Model	AC power supply models	DC power supply models
Model	CP1H-@@@-A	CP1H-@@@-D
Power supply	100 to 240 VAC 50/60 Hz	24 VDC
Operating voltage range	85 264 VAC	20.4 to 26.4 VDC(with 4 or more Expansion Units and Expansion I/O Units: 21.6 to 26.4 VDC)
Power consumption	100 VA max. (CP1H-@@@-A)(page 28)	50 W max. (CP1H-@@@-D)(page 28)
Inrush current (See note.)	100 to 120 VAC inputs:20 A max. (for cold start at room temperature) 8 ms max. 200 to 240 VAC inputs: 40 A max. (for cold start at room temperature), 8 ms max.	30 A max. (for cold start at room temperature) 20 ms max.
External power supply	300 mA at 24 VDC	None
Insulation resistance	20 MΩ min. (at 500 VDC) between the external AC terminals and GR terminals	No insulation between primary and secondary for DC power supply
Dielectric strength	2,300 VAC at 50/60 Hz for 1 min between the external AC and GR terminals, leakage current: 5 mA max.	No insulation between primary and secondary for DC power supply
Noise immunity	Conforms to IEC 61000-4-4. 2 kV (power supply line)
Vibration resistance	Conforms to JIS C60068-2-6. 10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, acceleration: 9.8 m/s2 in X, Y, and Z directions for 80 minutes each. Sweep time: 8 minutes ´ 10 sweeps = total time of 80 minutes)
Shock resistance	Conforms to JIS C60068-2-27. 147 m/s2 three times each in X, Y, and Z directions
Ambient operating tempera- ture	0 to 55°C
Ambient humidity	10% to 90% (with no condensation)
Ambient operating environ- ment	No corrosive gas
Ambient storage temperature	-20 to 75°C (Excluding battery.)
Power holding time	10 ms min.	2 ms min.

Note: The above values are for a cold start at room temperature for an AC power supply, and for a cold start for a DC power supply.

A thermistor (with low-temperature current suppression characteristics) is used in the inrush current control circuitry for the AC power The thermistor will not be sufficiently cooled if the ambient temperature is high or if a hot start is performed when the power supply has been OFF for only a short time. In those cases the inrush current values may be higher (as much as two times higher) than those shown above. Always allow for this when selecting fuses and breakers for externalcircuits.

A capacitor charge-type delay circuit is used in the inrush current control circuitry for the DC power supply. The capacitor will not be charged if a hot start is performed when the power supply has been OFF for only a short time, so in those cases the inrush current values may be higher (as much as two times higher) than those shown above
