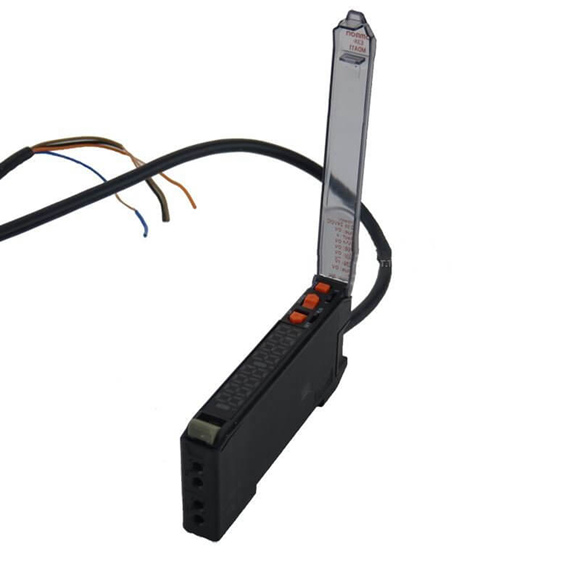

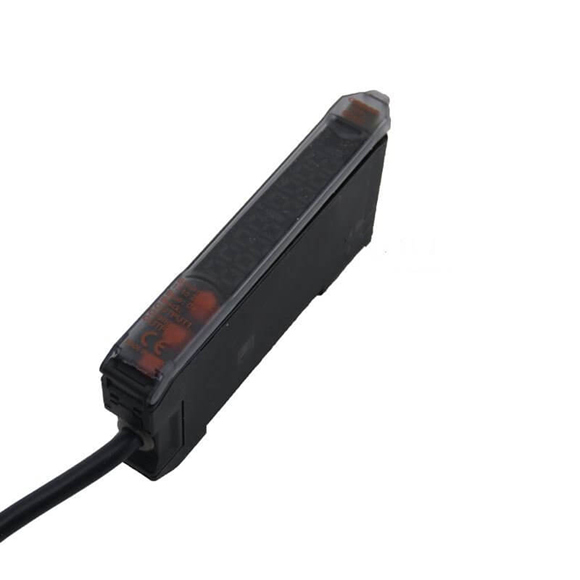

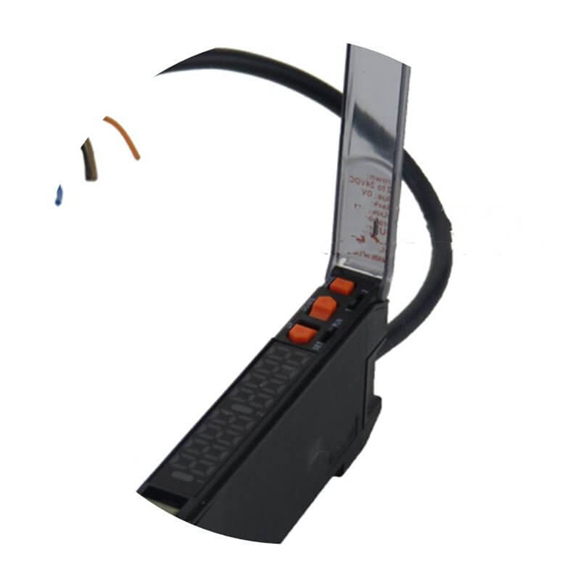

Omron Fiber Amplifier Unit E3X-MDA11 E3X-MDA41 2M

Series#: Omron Fiber Sensors

Product Details

Qty:

Specification

Item Single-function models Single-function models Green LED Blue LED Infrared LED
Model E3X-DA@SE-S E3X-DA@-S E3X-DAG@-S E3X-DAB@-S E3X-DAH@-S
Light source (wavelength) Red LED (635 nm) Green LED (525 nm) Blue LED (470 nm) Infrared LED (870nm)
Power supply voltage 12 to 24 VDC ±10%, ripple (p-p) 10% max.
Power consumption 960 mW max. (current consumption: 40 mA max. at power supply voltage of 24 VDC)
Control output Load power supply voltage: 26.4 VDC; NPN/PNP open collector; load current: 50 mA max.; residual voltage: 1 V max.
Remote control input No-voltage input (contact/non-contact)
Protection circuits Reverse polarity for power supply connection, output short-circuit
Super-high- speed mode Operate: 48 ms, reset: 50 ms *1, *2
High-speed mode Operate/reset: 250 ms
Standard mode Operate or reset: 1 ms
High-resolution mode Operate or reset: 4 ms
Sensitivity setting Teaching or manual method
Power tuning Light emission power and reception gain, digital control method


Timer function



Select from OFF-delay, ON-delay, or one-shot timer.

1 ms to 5 s (1 to 20 ms set in 1-ms increments, 20 to 200 ms set in 10-ms increments, 200 ms to 1 s set in 100-ms increments, and 1 to 5 s set in 1 s-increments)

Automatic power control (APC) High-speed control method for emission current
Zero-reset Negative values can be displayed. (Threshold value is shifted.)
Initial reset Settings can be returned to defaults as required.
Mutual interfer- ence prevention Possible for up to 10 Units *3
Display Operation indicator (orange) Operation indicator (orange), Power Tuning indicator (orange)
Digital display incident level + threshold Select from incident level + threshold or other 6 patterns
Display orientation Switching between normal/reversed display is possible.
Ambient illumination (Receiver side) Incandescent lamp: 10,000 lux max. Sunlight: 20,000 lux max.


Ambient temperature range

Operating: Groups of 1 to 2 Amplifiers: -25°C to 55°C Groups of 3 to 10 Amplifiers: -25°C to 50°C Groups of 11 to 16 Amplifiers: -25°C to 45°C

Storage:    -30°C to 70°C (with no icing or condensation)

Ambient humidity range Operating and storage: 35% to 85% (with no condensation)
Insulation resistance 20 MΩ min. (at 500 VDC)
Dielectric strength 1,000 VAC at 50/60 Hz for 1 minute
Vibration resistance Destruction: 10 to 55 Hz with a 1.5-mm double amplitude for 2 hrs each in X, Y and Z directions
Shock resistance Destruction: 500 m/s2, for 3 times each in X, Y and Z directions
Degree of protection IEC 60529 IP50 (with Protective Cover attached)
Connection method Pre-wired or amplifier unit connector
Weight (packed state) Pre-wired model: Approx. 100 g, Amplifier unit connector model: Approx. 55 g
Case Polybutylene terephthalate (PBT)
Cover Polycarbonate (PC)
Accessories Instruction manual
