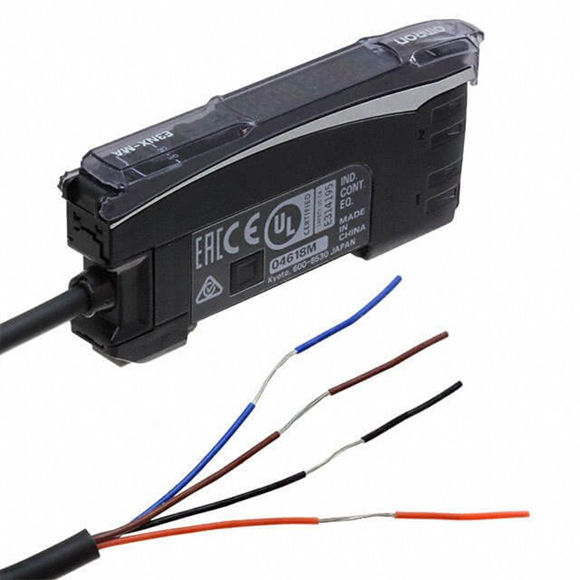

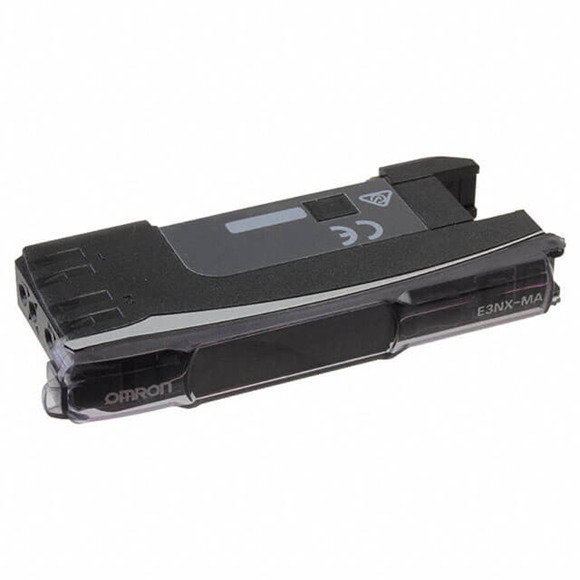

Omron Fiber Amplifier Units E3NX-MA Sensors

Series#: Omron Fiber Sensors

Product Details

Qty:

Specification

Type Standard Type Model for Sensor Communications Unit
NPN output E3NX-MA11 E3NX-MA6 E3NX-MA0
PNP output E3NX-MA41 E3NX-MA8 E3NX-MA0
Connecting method Pre-wired Wire-saving Connector Connector for Sensor Communications Unit
Outputs 2 outputs — *1
External inputs
Light source (wavelength) Red, 4-element LED (625 nm)
Power supply voltage 10 to 30 VDC, including 10% ripple (p-p) Supplied from the connector through the Sensor Communications Unit


Power consumption *2

At Power supply voltage of 24 VDC

Normal mode : 960 mW max. (Current consumption at 40 mA max.) Eco function ON: 770 mW max. (Current consumption at 32 mA max.) Eco function LO : 870 mW max. (Current consumption at 36 mA max.)







Control output

Load power supply voltage: 30 VDC max., open-collector output (depends on the NPN/PNP output format)

Load current: Groups of 1 to 3 Amplifier Units: 100 mA max., Groups of 4 to 30 Amplifier Units: 20 mA max.

(Residual voltage: )

At load current of less than 10 mA: 1 V max.

At load current of 10 to 100 mA: 2 V max.

OFF current: 0.1 mA max.









Indicators

7-segment displays (Sub digital display: green, Main digital display: white) Display direction: Switchable between normal and reversed.

OUT indicator (orange), L/D indicator (orange), ST indicator (blue), DPC indicator (green), and OUT selection indicator (orange)



Protection circuits

Power supply reverse polarity protection, output short-circuit protection, and output reverse polarity protection Power supply reverse polarity protection and output shortcircuit protection
Super-high-speed mode (SHS) Operate or reset: 100 ms
High-speed mode (HS) Operate or reset: 450 ms
Standard mode (Stnd) Operate or reset: 1ms
Giga-power mode (GIGA) Operate or reset: 16ms
Sensitivity adjustment Smart Tuning (2-point tuning, full auto tuning, position tuning, maximum sensitivity tuning, power tuning, or percentage tuning (-99% to 99%)) or manual adjustment
Maximum connectable Units 30 With E3NW-ECT: 30 units *3 With E3NW-CCL: 16 units
No. of Units for mutual interference prevention *4 9

Note: The mutual interference prevention function is disabled if the detection mode is set to super-high-speed mode.
