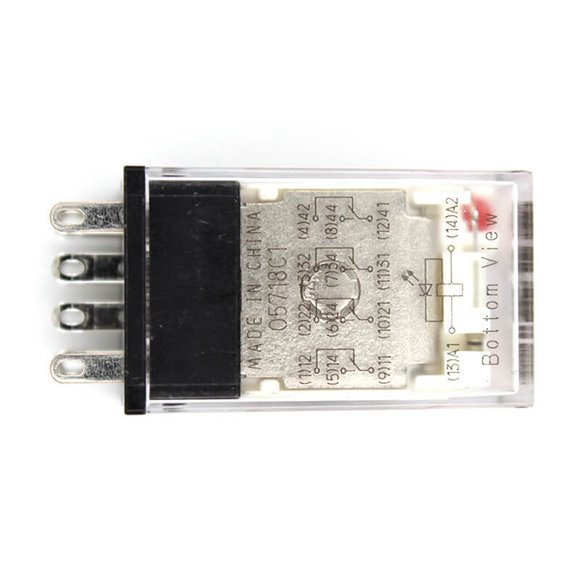

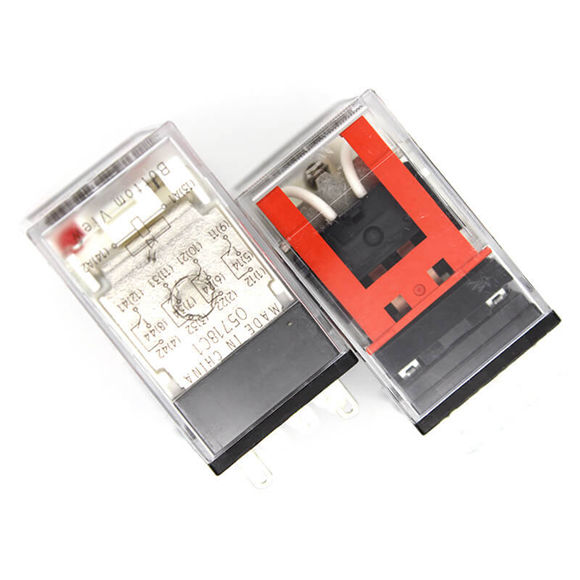

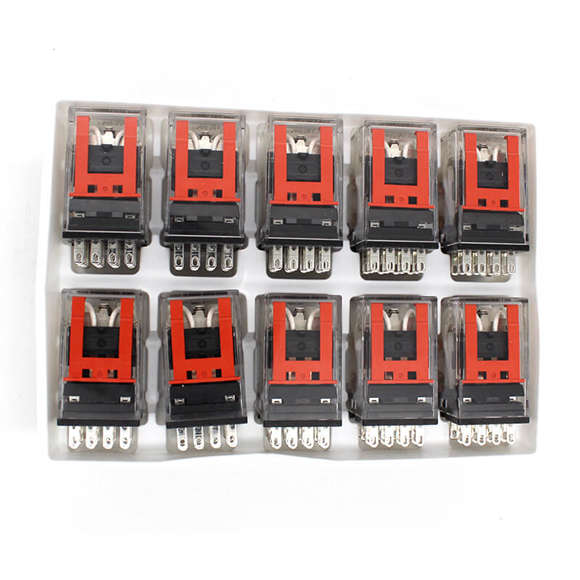

Omron Miniature Power Relays MY2N-D2 MY4N-D2 MY4ZN-D2
We are First Class Omron Relays dealer and Omron Relays distributor in China.
We can Supply All kinds of Omron Relays,such as Omron Signal Relays ,Omron Safety Relays ,Omron Power Relays ,Omron Solid State Relays and Omron Terminal Relays.
100% Original and new,In stock by Omron Automation.
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

[h]ggg
Contact structure	Single	Bifurcated	Single	Single	Bifurcated	Crossbar bifurcated (CBG)
*Contact resistance1 2*	50 mΩ max.					100 mΩ max.
*Operate time3**	20 ms max.
*Release time3**	20 ms max.
Mechanical	18,000 operations/h
Rated load	1,800 operations/h
Insulation *resistance4**	100 MΩ min.
Between coil and contacts	2,000 VAC, 50/60 Hz for 1 min
Between contacts of the same polarity	1,000 VAC at 50/60 Hz for 1 min					700 VAC at 50/60 Hz for 1 min
Destruction	10 to 55 to 10 Hz, 0.5-mm single amplitude (1.0-mm double amplitude)
Malfunction	10 to 55 to 10 Hz, 0.5-mm single amplitude (1.0-mm double amplitude)
Destruction	1,000 m/s2
Malfunction	200 m/s2
Mechanical	AC: 50,000,000 operations min. DC: 100,000,000 operations min. (switching frequency: 18,000 operations/h)	AC: 50,000,000 operations min. DC: 50,000,000 operations min. (switching frequency: 18,000 operations/h)	AC: 50,000,000 operations min. DC: 100,000,000 operations min. (switching frequency: 18,000 operations/h)	AC: 50,000,000 operations min. DC: 100,000,000 operations min. (switching frequency: 18,000 operations/h)	AC: 20,000,000 operations min. DC: 20,000,000 operations min. (switching frequency: 18,000 operations/h)	AC: 50,000,000 operations min. DC: 50,000,000 operations min. (switching frequency: 18,000 operations/h)
*Electrical5**	500,000 operations min. (rated load, switching frequency: 1,800 operations/h)	200,000 operations min. (rated load, switching frequency: 1,800 operations/h)	500,000 operations min. (rated load, switching frequency: 1,800 operations/h)	200,000 operations min. (rated load, switching frequency: 1,800 operations/h)	100,000 operations min. (rated load, switching frequency: 1,800 operations/h)	50,000 operations min. (rated load, switching frequency: 1,800 operations/h)
*Failure rate P value (reference value)6**	1 mA at 5 VDC	100 ?A at 1 VDC	1 mA at 5 VDC	1 mA at 1 VDC	100 ?A at 1 VDC	100 ?A at 1 VDC
Weight	Approx. 35 g	Approx. 35 g	Approx. 35 g	Approx. 35 g	Approx. 35 g	Approx. 35 g
