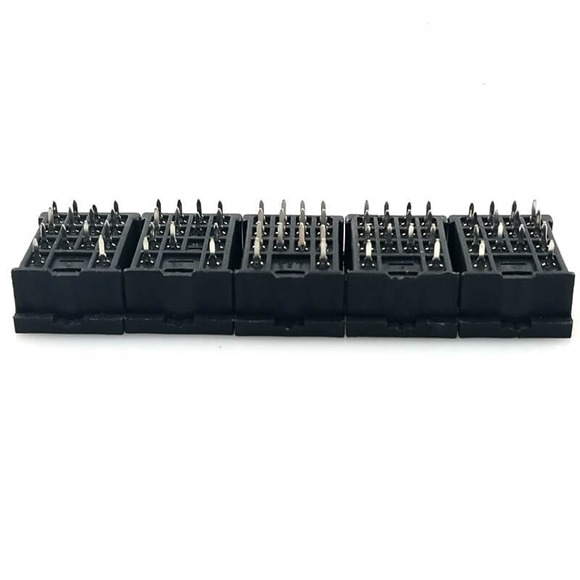

Omron Miniature Power Relays Sockets PY08-02 PY14-02

Series#: Omron Power Relay

Product Details

Qty:

Specification

2 poles 4 poles
Contact resistance *1 100 mΩ max.
Operation time *2 20 ms max.
Release time *2 20 ms max.
Mechanical 18, 000 operations/h
Rated load 2,400 operations/h
Insulation resistance *3 1,000 MΩ min.
Between coil and contacts 2,000 VAC at 50/60 Hz for 1 min.
Between contacts of different polarity 2,000 VAC at 50/60 Hz for 1 min.
Between contacts of the same polarity 1,000 VAC at 50/60 Hz for 1 min.
Destruction 10 to 55 to 10 Hz, Double amplitude: 1.0 mm
Malfunction 10 to 55 to 10 Hz, Double amplitude: 1.0 mm
Destruction 1,000 m/s2 (approx. 100 G)
Malfunction 200 m/s2 (Approx. 20 G)
Mechanical 50,000,000 operations (switching frequency: 18,000 operations/h)
Electrical *4 500,000 operations (switching frequency: 2,400 operations/h) 200,000 operations (switching frequency: 2,400 operations/h)
Ambient operating temperature Standard models: -55 to 70°C (with no icing or condensation)Models with LED operation indicators: -40 to 70°C (with no icing or condensation)
Ambient humidity 5% to 85%
Weight Approx. 35 g
