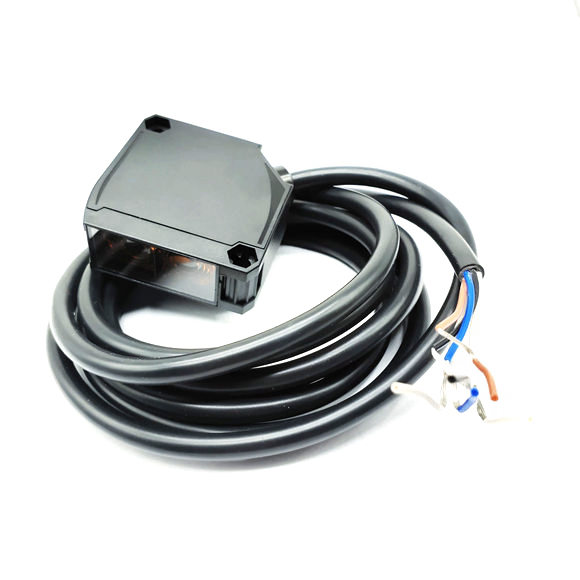

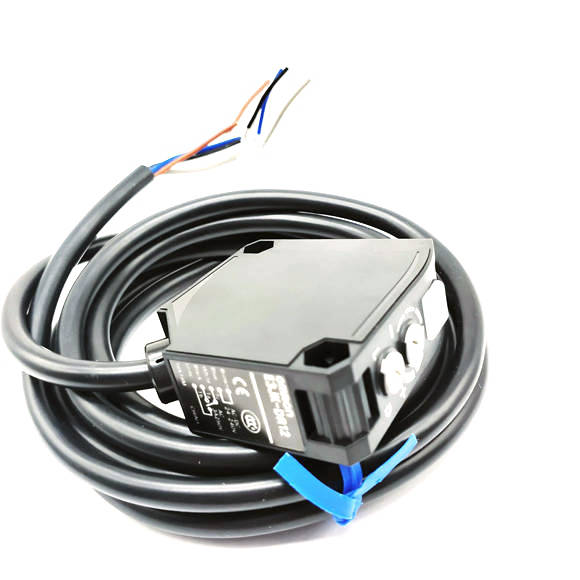

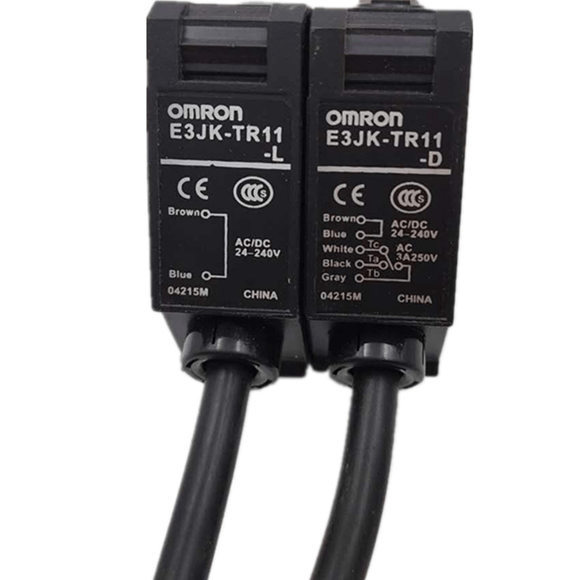

Omron Photoelectric Sensor E3JK-DN11/-DN12/-DN13 E3JK-DP11/-DP12/-DP13

Series#: Omron Photoelectric Sensor

Product Details

Qty:

Specification

Sensing method Diffuse-reflective
NPN output E3JK-DN11 E3JK-DN12 E3JK-DN13 E3JK-DN14
PNP output E3JK-DP11 E3JK-DP12 E3JK-DP13 E3JK-DP14
Sensing distance White paper
(300 × 300 mm): 2.5 m
White paper
(100 × 100 mm): 300 mm
White paper
(300 × 300 mm): 2.5 m
White paper
(100 × 100 mm): 300 mm
Standard sensing object
Differential travel 20% max. of sensing distance
Directional angle
Light source (wavelength) Red LED (624 nm) Infrared LED (850 nm)
Power supply voltage 10 to 30 VDC, including ripple (p-p): 10%
DC 30 mA max.
Control output Load power supply voltage: 30 V max., Load current: 100 mA max., Residual voltage: 3 V max., opencollector output (NPN/PNP output depending on model), Light-ON/Dark-ON selectable
Protection circuits Power supply reverse polarity protection, Output short-circuit protection, Mutual interference prevention function, and Output reverse polarity protection
Response time 1 ms max.
Sensitivity adjustment One-turn adjuster
Ambient illumination
(Receiver side)
Incandescent lamp: 3,000 lx max., Sunlight: 11,000 lx max.
Ambient temperature range Operating: -25°C to 55°C, Storage: -40°C to 70°C (with no icing or condensation)
Ambient humidity range Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Insulation resistance 20 MΩ min. at 500 VDC
Dielectric strength 1,500 VAC, 50/60 Hz for 1 min
Destruction 10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
Malfunction 10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
Destruction 500 m/s2 for 3 times each in X, Y, and Z directions
Malfunction 500 m/s2 for 3 times each in X, Y, and Z directions
Degree of protection IEC 60529 IP64
Connection method Pre-wired (standard length: 2 m)
Weight (packed state) Approx. 160 g
Bending radius of cable R18
Accessories Instruction manual
