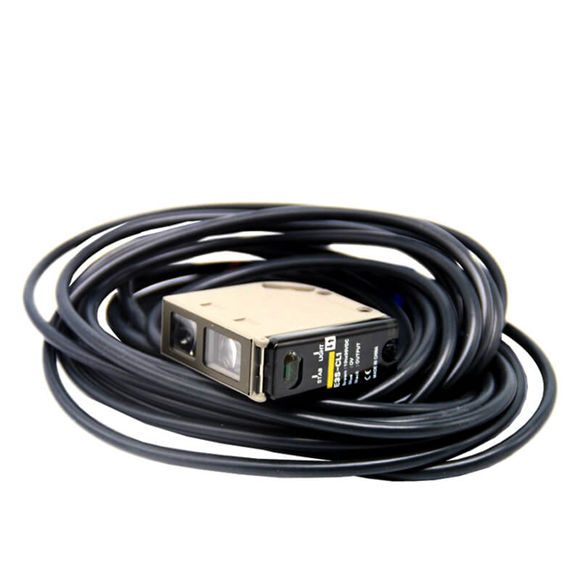

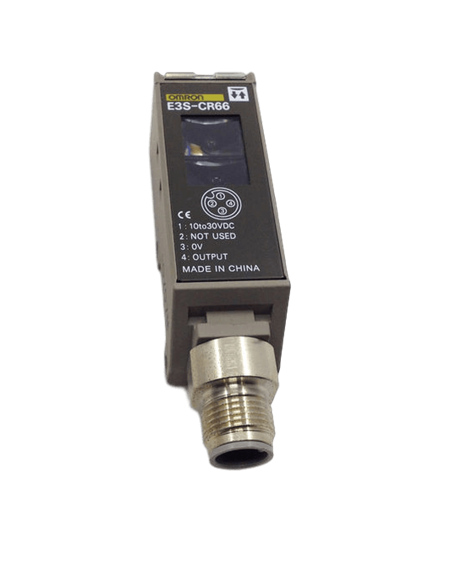

Omron Photoelectric Sensor E3S-CD11 2M E3S-CD12 2M E3S-CD11-M1J E3S-CD12-M1J

Series#: Omron Photoelectric Sensor

Product Details

Qty:

Specification

Sensing method Through-beam Retro-reflective (with M.S.R. function) *1 Diffuse reflective
Model Horizontal E3S-CT11(-M1J) Horizontal E3S-CR11(-M1J) Horizontal E3S-CD11(-M1J) Horizontal E3S-CD12(-M1J)
Model Vertical E3S-CT61(-M1J) Vertical E3S-CR61(-M1J) Vertical E3S-CD61(-M1J) Vertical E3S-CD62(-M1J)


Sensing distance



30 m



3 m (when using E39-R1)

700 mm

(300 ´ 300 mm white paper)

2 m

(300 ´ 300 mm white paper)

Standard sensing object Opaque, 15-mm dia. min. Opaque, 75-mm dia. min.
Differential travel 20% max. of sensing distance
Directional angle Emitter and Receiver: 3° to15° 3° to 10°
Light source (wavelength) Infrared LED (880 nm) Red LED (700 nm) Infrared LED (880 nm)
Power supply voltage 10 to 30 VDC including 10% (p.p) ripple
Current consumption 50 mA max. (Emitter 25 mA max. Receiver 25 mA max.) 40 mA max.


Control output

Load power supply voltage: 30 VDC max.

Load current: 100 mA max. (Residual voltage: NPN output: 1.2 V max., PNP output: 2.0 V max.) Open controller output (NPN/PNP selectable)

Light-ON/Dark-ON selectable



Protection circuits

Power supply reverse polari- ty circuit protection, Output short-circuit protection Power supply reverse polarity protection, Output short-circuit protection, Mutual interference prevention
Response time Operate or reset: 1 ms max. Operate or reset 2 ms max.
Sensitivity adjustment One-turn adjuster Two-turn endless adjuster with an indicator
Ambient illumination (Receiver side) Incandescent lamp: 5,000 lx max. Sunlight: 10,000 lx max.
Ambient temperature range Operating: -25°C to 55°C, Storage: -40°C to 70°C (with no icing or condensation)
Ambient humidity range Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Insulation resistance 20 MΩ min. (at 500 VDC)
Dielectric strength 1,000 VAC, 50/60 Hz for 1 min
Vibration resistance Destruction: 10 to 2,000 Hz, 1.5-mm double amplitude or 300 m/s2 for 0.5 hours each in X, Y, and Z directions
Shock resistance Destruction: 1,000 m/s2 3 times each in X, Y, and Z directions
Degree of protection IEC 60529: IP67 (in-house standards: oil-resistant), NEMA: 6P (indoors only) *2
Connection method Pre-wired (standard cable length: 2 m) or Pre-wired M12 Connector (standard cable length: 0.3 m)


Weight (packed state)

Approx. 270 g (Pre-wired cable)

Approx. 230 g

(Pre-wired Connector (M12))

Approx. 160 g (Pre-wired cable)

Approx. 130 g

(Pre-wired Connector (M12))

Approx. 150 g (Pre-wired cable)

Approx. 110 g

(Pre-wired Connector (M12))

Case Zinc die-cast
Operation panel cover PES (polyether sulfone)
Lens Methacrylic resin
Mounting Bracket Stainless steel (SUS304)

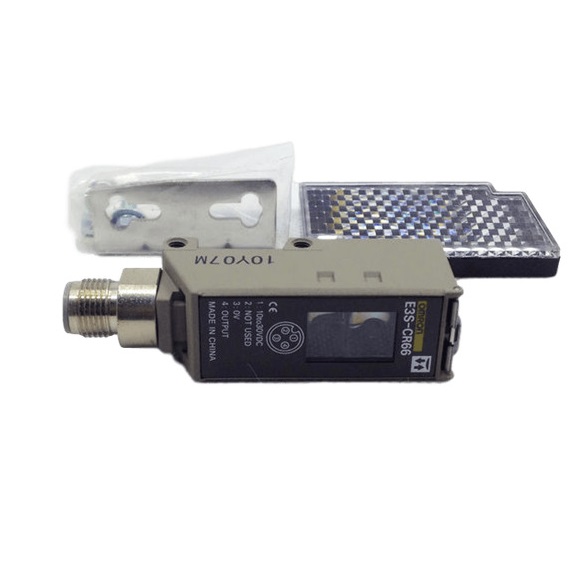

Accessories Mounting Bracket (with screws), Adjustment screwdriver, Instruction manual, and Reflector (only for Retro-reflective Sensors)
