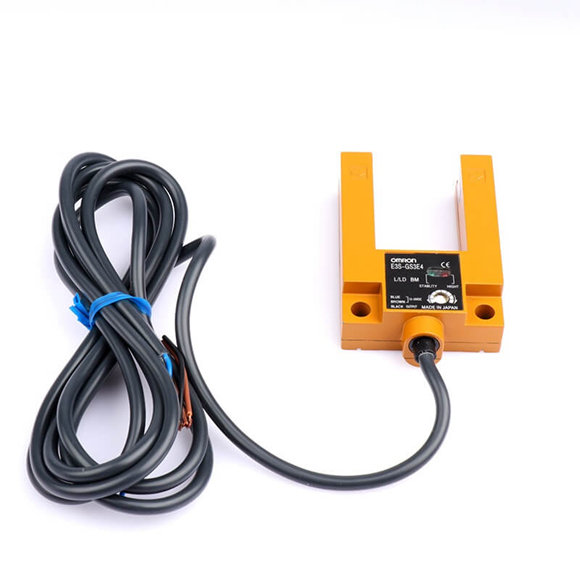

Omron Photoelectric Sensor E3S-DS10E4 E3S-DS10E41 E3S-DS30E41 E3S-DS30E4S

Series#: Omron Photoelectric Sensor

Product Details

Qty:

Specification

Sensing method Through-beam Retro-re- flective Diffuse-reflective Convergent-reflective
 Model

Item

 E3S-2E4 E3S-2E41  E3S-5E4 E3S-5E41  E3S-R2E4 E3S-R2E41 E3S- DS10E4 E3S- DS10E41  E3S- DS30E41  E3S- DS30E4S  E3S- LS10XE4  E3S- LS20XE4
 Sensing distance  2 m  5 m  0.1 to 2 m 100 mm (white paper 50 x 50 mm)  300 mm

(white paper 100 x 100)

30 to 100 mm Continuously variable(10 x 10 mm) 50 to 250 mm Continuously variable(50 x 75 mm)
Standard sensing object Opaque: 7- mm dia. min. Opaque: 11- mm dia. min. Opaque: 30- mm dia. min. Transparent, opaque


Differential travel





20% max. of setting distance

1.5 mm max. at 30 mm10 mm max.

at 100 mm

 5% max. at 50

to 250 mm

Directional angle Both emitter and receiver: 3° to 10° 3° to 10°
Light source (wavelength) Infrared LED (950 nm) RED LED (660 nm) Infrared LED (950 nm)
Power supply voltage 12 to 24 VDC ±10%, ripple (p-p): 10% max.
Current consumption 50 mA max.(Emitter: 25 mA max., Receiver: 25 mA max.)  40 mA max.
Control output (solid-state out- put)  Output current: 1.5 to 4 mA, Load current: 80 mA max. (residual voltage: 2 V max.) ➜ Refer to page 4.
Response time Operate or reset: 3 ms max. Operate or reset: 1 ms max.
Sensitivity adjustment With an indicator
Ambient illumination (Receiver side) * Incandescent lamp: 3,000 lx max. Sunlight: 10,000 lx max.
Ambient temperature Operating: -25 to 55°C, Storage: -40 to 70°C (with no icing or condensation)
Ambient humidity Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Insulation resistance 20 MΩ min. at 500 VDC
Dielectric strength 1,000 VAC, 50/60 Hz for 1 min
Vibration resistance (destruction)  10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction) 500 m/s2 3 times each in X, Y, and Z directions
Degree of protection IEC IP65 IEC IP67 IEC IP65 IEC IP67
Connection method Pre-wired cable (standard length: 2 m)
Indicators Light indicator (red), Stability indicator (green)
