| Sensing method | Diffuse-reflective | Convergent-reflective | ||

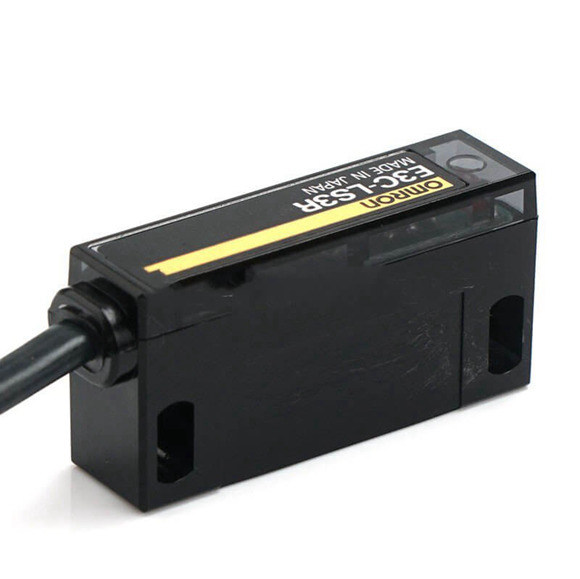

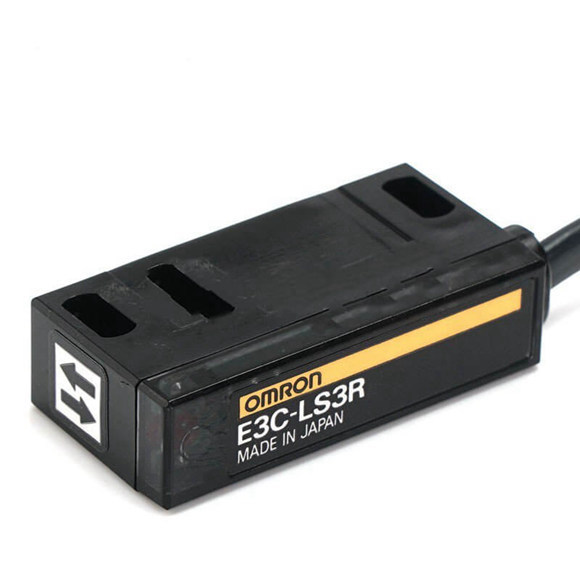

| Item Model | E3C-DS5W | E3C-DS10T | E3C-DS10 | E3C-LS3R |
| Sensing distance | 50 mm (White paper 100 ´
100 mm) |
100 mm (White paper 100
´ 100 mm) |
100 mm (White paper 50 ´
50 mm) |
30 ± 3 mm (White paper 10
´ 10 mm) |
| Differential travel | 20% max. of sensing distance | 10% max. | ±3% max. | |
| Light source (wavelength) | Infrared LED (950 nm) | Infrared LED (950 nm) | Red LED (680 nm) | |
| Ambient illuminance (Receiver side) | Incandescent lamp: 3,000 lx max., Sunlight 10,000 lx max. | |||
| Ambient temperature range | Operating/Storage: -25 to 70°C (with no icing or condensation) | |||
| Ambient humidity range | Operating/Storage: 35% to 85%RH (with no condensation) | |||
| Insulation resistance | 20 MΩ min. at 500 VDC | |||
| Dielectric strength | 500 VAC at 50/60 Hz for 1 minute | |||
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions | |||
| Shock resistance | Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions | |||
| Degree of protection | IEC 60529 IP50 (Limited to indoor use) | IEC 60529 IP64 (Limited to indoor use) | ||
| Connection method | Pre-wired models (standard length: 2 m) | |||
| Weight (packed state) | Approx. 50 g | Approx. 55 g | ||
|
Accessories |
Phillips screw M2´8, spring washer, flat washer, M2 nut, instruction manual |
