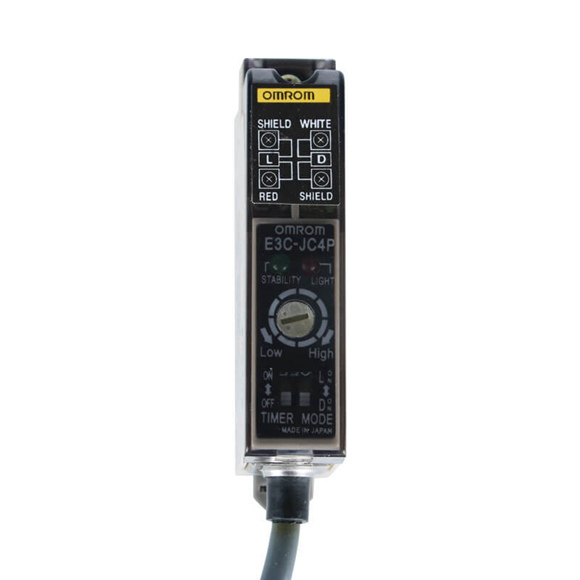

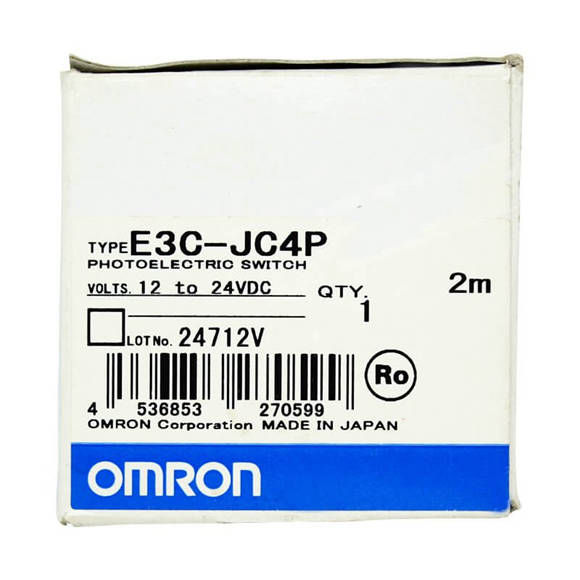

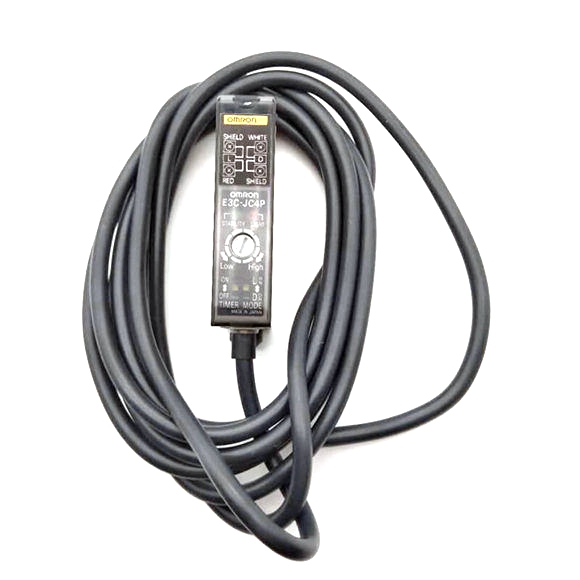

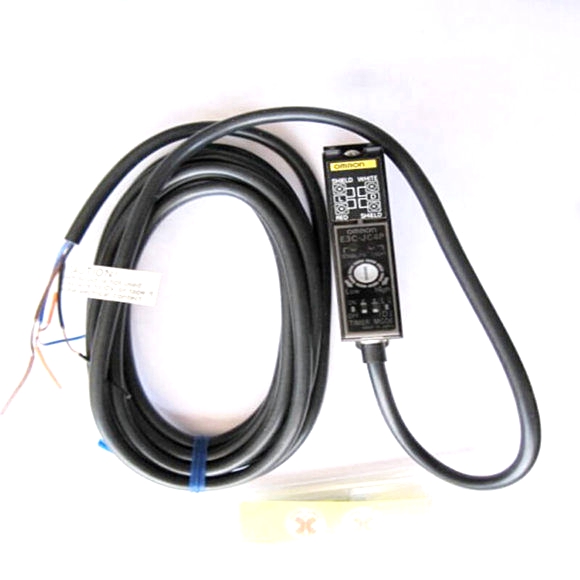

Omron Photoelectric Sensors E3C-JC4P

Series#: Omron Photoelectric Sensors

Product Details

Qty:

Specification

Item Model E3C-JC4P
Power supply voltage 12 to 24 VDC±10%, ripple (p-p): 1 V max.
Power (current) consumption 40 mA max.


Control output

Load power supply voltage: 24 VDC max., load current: 100 mA max., NPN open collector output type (residual voltage: 1 V max.)

Light-ON/Dark-ON switch selectable

Timer function OFF-delay 0/40 ms (switch selectable)
Ambient temperature range Operating: -10° to 55°C, Storage: -25° to 70°C (with no icing or condensation)
Ambient humidity range Operating: 35% to 85%, Storage: 35% to 85% (with no condensation)
Insulation resistance 20 MΩ min. at 500 VDC
Dielectric strength 1,000 VAC at 50/60 Hz for 1 minute
Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance Destruction: 300 ms2 three times in each of X, Y and Z directions
Degree of protection IEC IP40 (limited to indoor use)
Protection Reverse polarity protection, output short-circuit protection, mutual interference prevention
Response time Operate or reset: 1 ms max.
Connection method Terminal block input cable pullout (standard cable length: 2 m)
Weight (packed state) Approx. 80 g
Accessories Mounting Bracket, Adjustment screwdriver, Caution label, Instruction manual
