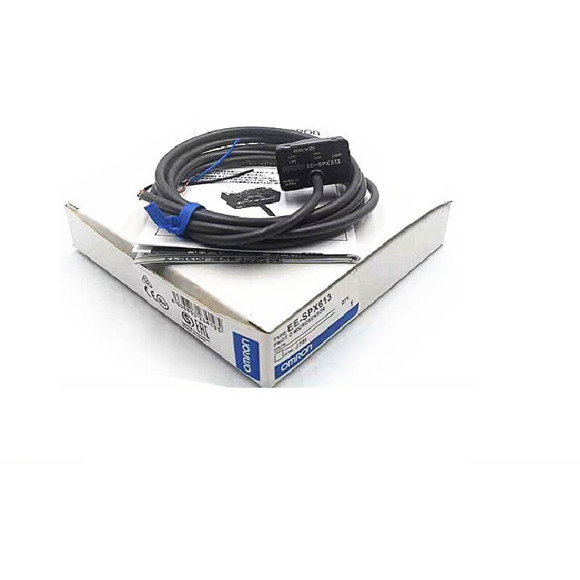

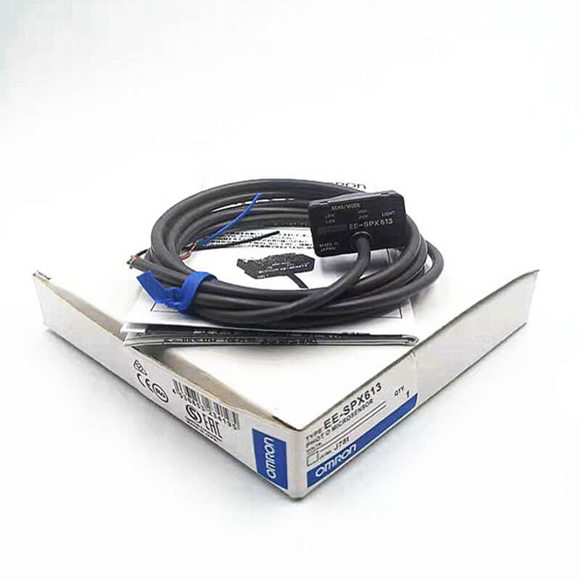

Omron Photomicro sensor EE-SPX613

Series#: Omron Photomicro sensor

Product Details

Qty:

Specification

Models EE-SPX613
Applicable pipe Any 6- to 13-mm-diameter pipe with a wall thickness of 1 mm that is made of FEP or any
other material as transparent as FEP.
Sensing object Liquids in pipes (High-viscosity liquids or liquids with floating materials may not be detected.)
Light source GaAs infrared LED with a peak wavelength of 940 nm
Indicator Light indicator GaP (Red LED: Peak wavelength of 700 nm)
Supply voltage 12 to 24 VDC ±10%, ripple (p-p): 5% max.
Current consumption Average: 30 mA max., Peak: 80 mA max.
Control output NPN open collector:
Load power supply voltage: 5 to 24 VDC
Load current: 100 mA max.
OFF current: 0.5 mA max.
100 mA load current with a residual voltage of 0.8 V max.
40 mA load current with a residual voltage of 0.4 V max.
Ambient illumination 3,000 lx max. with incandescent light or sunlight on the surface of the receiver
Ambient temperature
range
Operating: – 10 to +55 ° C
Storage: – 25 to +65 ° C (with no icing or condensation)
Ambient humidity
range
Operating: 5% to 85%
Storage: 5% to 95% (with no condensation)
Vibration resistance Destruction: 10 to 500 Hz, 1.0-mm single amplitude or 150 m/s2 in X, Y, and Z directions
3 times and for 11 min each
Shock resistance Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions
Degree of protection IEC 60529 IP50
Connecting method Pre-wired (Standard length: 1 m)
Weight (packed state) Approx. 55 g
