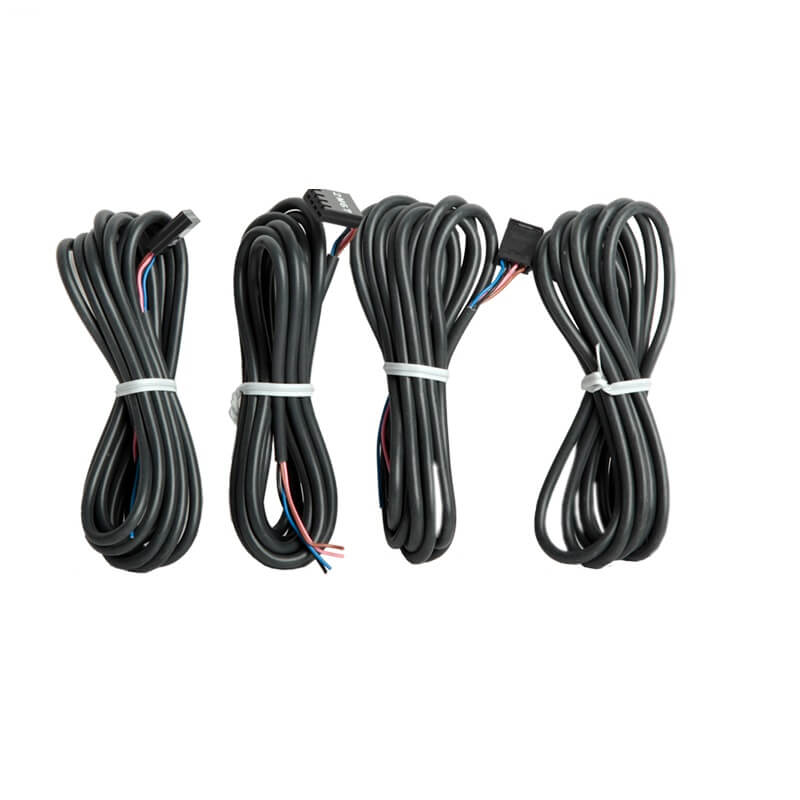

Omron Photomicro sensors EE-1013 EE-1016-R EE-1017 EE-1017-R

Series#: Omron Photomicro sensors

Product Details

  • Omron Connectors and Connector Hold-down Clips
  • Omron Photomicro Sensors Accessories

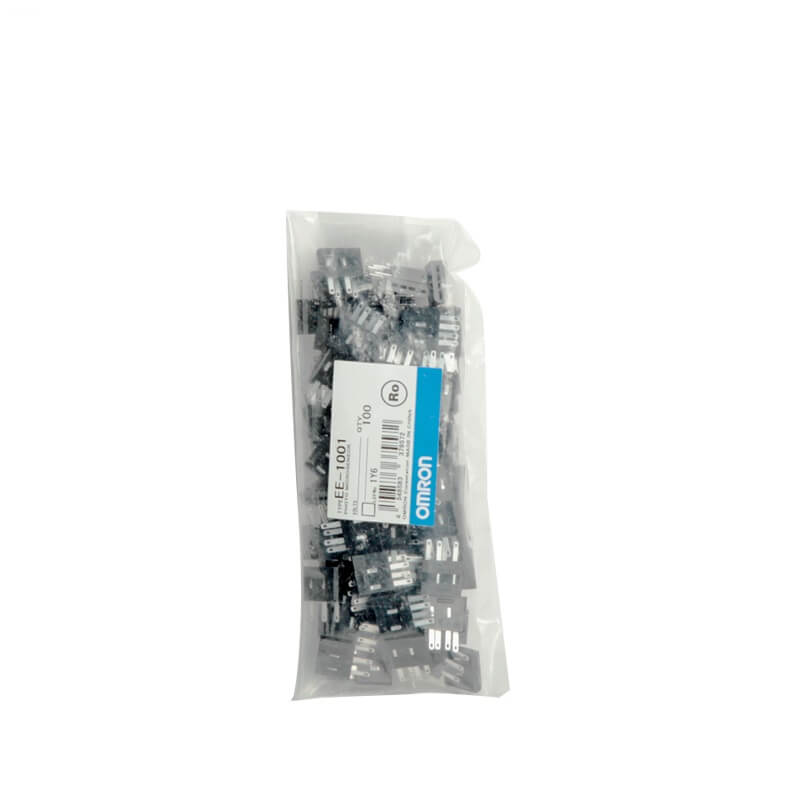

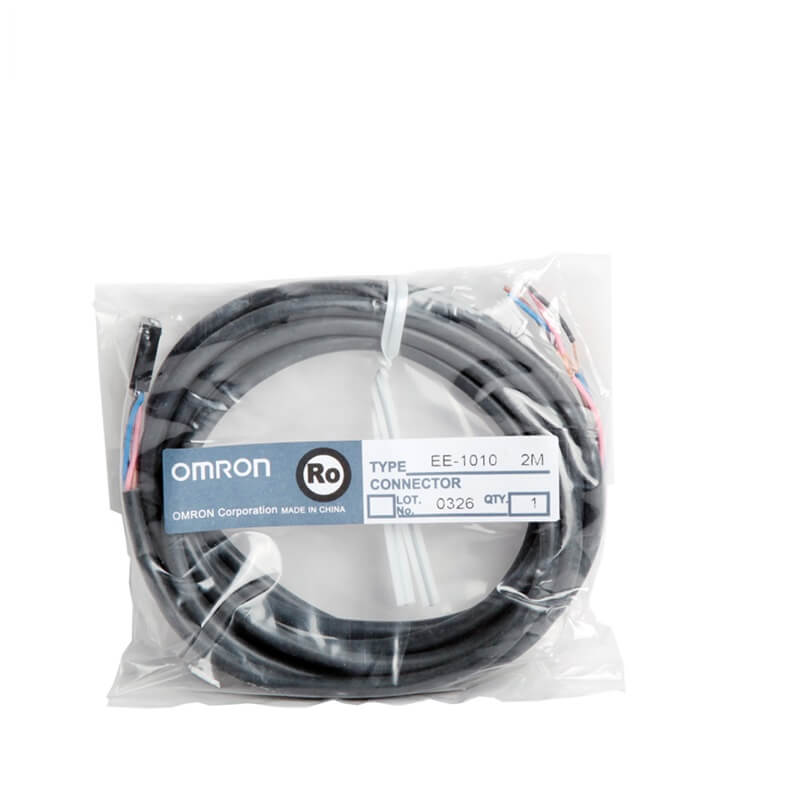

  • Omron EE-1009 EE-1010 EE-1010-R EE-1001 EE-1001-1 EE-1006
  • Omron EE-1002 EE-1003 EE-1013 EE-1016-R EE-1017 EE-1017-R
Qty:

Specification

Product Connector
*1 *4
Connector
with Cable
*1
Connector
with Robot
Cable *1
Connector
*4
Connector
(short-
circuited
between
positive (+)
and L ter-
minals) *2 *4
Connector
with Cable
Model EE-1009 EE-1010 EE-1010-R EE-1001 EE-1001-1 EE-1006
Contact resistance 20 mΩ max.
(at 20 mV max., 100 mA max.)
15 mΩ max. (at 100 VDC max.) 10 mΩ max.
(100 VDC max.)
Insertion/removal
durability *3
50 times min.
Insertion strength No. of poles ✕ 6 N max. 68.6 N max. 50 N max.
Surplus strength
(housing holding
strength)
No. of poles ✕ 0.4 N max. 20 N max.
Standard cable length 1 m, 2 m 1 m, 2 m
Lock strength *3 No. of poles ✕ 29 N min.
Ambient humidity – 10 to +60 °C – 10 to +75 °C – 10 to 60 °C
Applicable
Photomicrosensors
EE-SX67[] (A, P, R) (Connector Models only), EE-SX47[], EE-SY67[], EE-SPY31[]/41[],
EE-SPX303N/403N, EE-SPW311/411



Product Connector *4 Connector
with Cable
Connector
with Cable
Connector with
Robot Cable
Connector
with Cable
Connector with
Robot Cable
Model EE-1002 EE-1003 EE-1013 EE-1016-R EE-1017 EE-1017-R
Contact resistance 10 mΩ max.
(at 10 mADC
and 1 ADC)
20 mΩ max. (at minute
current of 1 kHz and
500 VDC)
25 mΩ max.
(at 10 mA DC and 20 mV max.)
Insertion strength 20 N max. 23.5 N max. 40 N max. 20 N max.
Surplus strength
(housing holding
strength)
15 N max. (initial)
10 N max. (ten
times)
3.5 N max. 10 N max. 15 N min. 1.5 N min.
Cable length 1 m 2 m 1 m, 3 m
Ambient humidity -10 to +75°C -10 to +60°C -10 to +55°C -25 to +85°C -10 to +60°C
Housing Nylon
Contact Phosphor bronze (solder plating)
Applicable
Photomicrosensors
EE-SPX301/401,
EE-SPY30[]/40[],
EE-SPZ301-A/401-A
EE-SPX74[]/84[] EE-SX95[]-C1J-R EE-SX97[]C1,
EE-SX97[]P-C1
