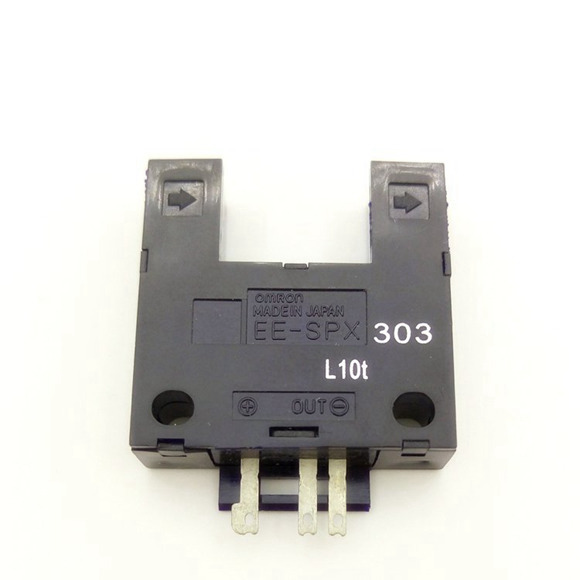

Omron Photomicro sensors EE-SPX303N EE-SPX403N

Series#: Omron Photomicro sensors

Product Details

Qty:

Specification

Models EE-SPX303N, EE-SPX403N
Sensing distance 13 mm (slot width)
Sensing object Opaque: 2.2 × 0.5 mm min.
Differential distance 0.05 mm max.
Light source Infrared LED (pulse lighting) with a peak wavelength of 940 nm
Indicator Light indicator (red)
Supply voltage 12 to 24 VDC ±10%, ripple (p-p): 5% max.
Current consumption 15 mA max.
Control output NPN voltage output:
Load power supply voltage: 12 to 24 VDC
Load current: 80 mA max.
OFF current: 0.5 mA max.
80 mA load current with a residual voltage of 2.0 V max.
10 mA load current with a residual voltage of 1.0 V max.
Protection circuits Power supply reverse polarity protection, Output reverse polarity protection
Response frequency * 100 Hz min.
Ambient illumination 3,000 lx max. with incandescent light or sunlight on the surface of the receiver.
Ambient temperature range Operating: -10 to +55°C
Storage: -25 to +65°C
Ambient humidity range Operating: 5% to 85%
Storage: 5% to 95%
Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 h each in X, Y, and Z directions
Shock resistance Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions
Degree of protection IEC IP50
Connecting method Special connector (soldering not possible)
Weight Approx. 4 g
Material Polycarbonate
