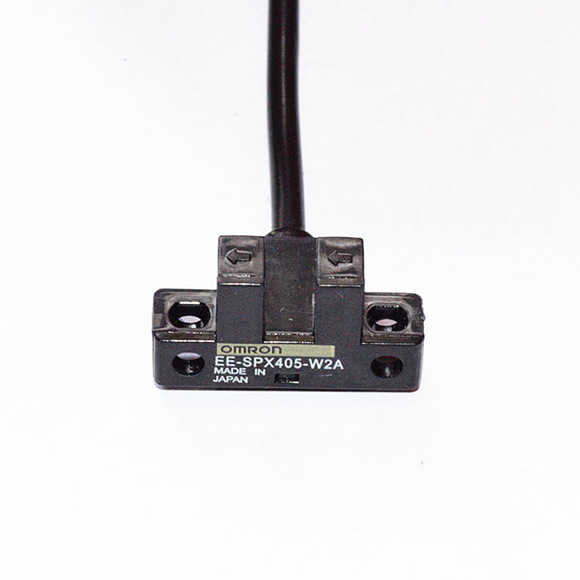

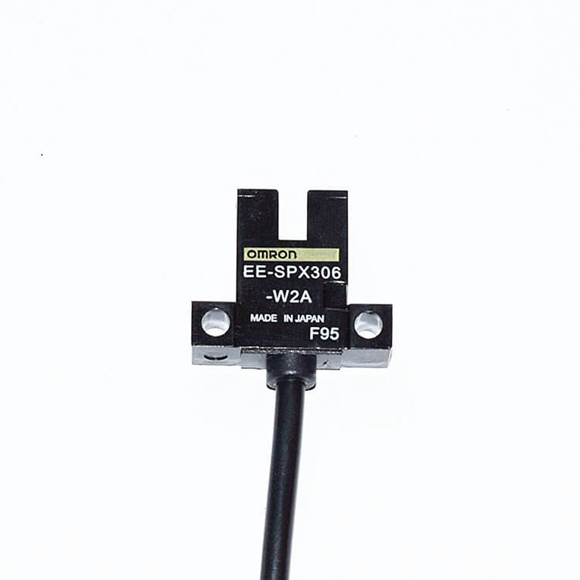

Models | EE-SPX302-W2A, EE-SPX402-W2A EE-SPX304-W2A, EE-SPX404-W2A EE-SPX306-W2A, EE-SPX406-W2A |
EE-SPX305-W2A EE-SPX405-W2A |
Sensing distance | 3.6 mm (slot width) | 5 mm (slot width) |
Sensing object | Opaque: 1 × 0.5 mm min. | Opaque: 2 × 0.8 mm min. |
Differential distance | 0.05 mm max. | |
Light source | GaAs infrared LED (pulse lighting) with a peak wavelength of 940 nm | |
Indicator *1 | Light indicator (red) | |
Supply voltage | 5 to 24 VDC ±10%, ripple (p-p): 5% max. | |
Current consumption | Average: 15 mA max.; Peak: 50 mA max. | |
Control output | NPN voltage output: Load power supply voltage: 5 to 24 VDC Load current: 80 mA max. OFF current: 0.5 mA max. 80 mA load current with a residual voltage of 1.0 V max. 10 mA load current with a residual voltage of 0.4 V max. |
|
Response frequency *2 | 500 Hz min. | |
Ambient illumination | 3,000 lx max. with incandescent light or sunlight on the surface of the receiver | |
Ambient temperature range |
Operating: – 10 to +55 ° C Storage: – 25 to +65 ° C |
|
Ambient humidity range | Operating: 5% to 85% Storage: 5% to 95% |
|
Vibration resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 h each in X, Y, and Z directions | |
Shock resistance | Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions | |
Degree of protection | IEC IP50 | |

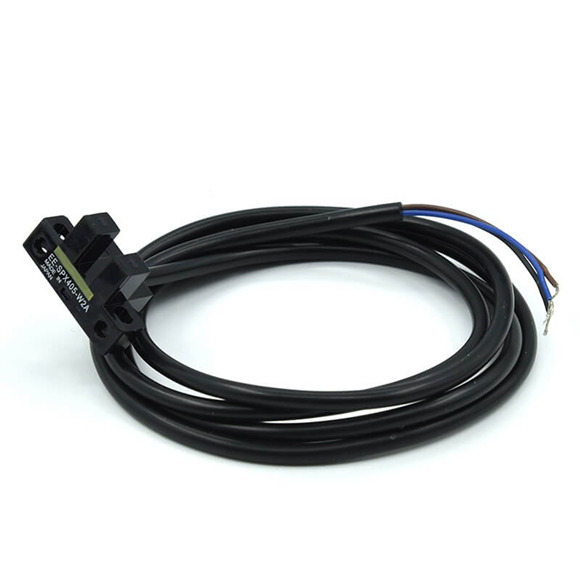

Connecting method | Pre-wired (standard cable length: 1 m) | |
Weight | 18.5 g |
