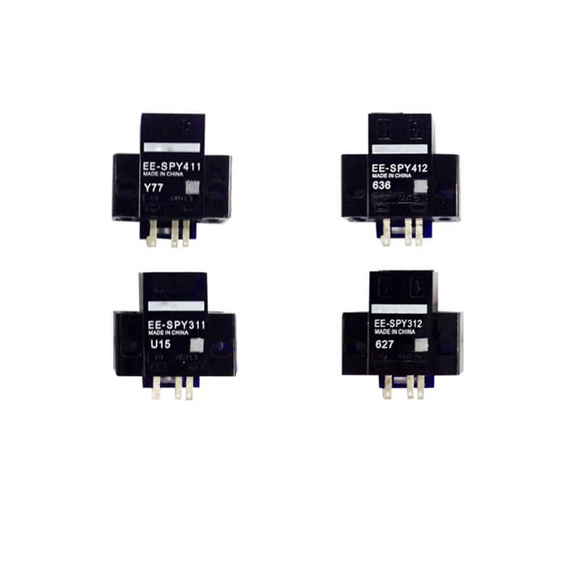

Models | EE-SPY311, EE-SPY411, EE-SPY312, EE-SPY412 |
Sensing distance | 2 to 5 mm (Reflection factor: 90%; white paper 15 × 15 mm) |
Minimum sensing object | Pure copper wire (0.05 mm dia.) |
Distance to background *1 | 20 mm max. (glass with aluminum deposition) |
Differential distance | 0.2 mm (with a sensing distance of 3 mm, horizontally) |
Light source | GaAs infrared LED with a peak wavelength of 940 nm |
Indicator *2 | Light indicator (red) |
Supply voltage | 5 to 24 VDC ±10%, ripple (p-p): 5% max. |
Current consumption | Average: 15 mA max., Peak: 50 mA max. |
Control output | NPN voltage output: Load power supply voltage: 5 to 24 VDC Load current: 80 mA max. OFF current: 0.5 mA max. 80 mA load current with a residual voltage of 1.0 V max. 10 mA load current with a residual voltage of 0.4 V max. |
Response frequency *3 | 100 Hz min. |
Ambient illumination | 3,000 lx max. with incandescent light or sunlight on the surface of the receiver |
Ambient temperature range |
Operating: – 10 to +55 ° C Storage: – 25 to +65 ° C |
Ambient humidity range | Operating: 5% to 85% Storage: 5% to 95% |
Vibration resistance | Destruction: 10 to 50 Hz, 1.5-mm double amplitude for 2 h each in X, Y, and Z directions |
Shock resistance | Destruction: 500m/s2 for 3 times each in X, Y, and Z directions |
Degree of protection | IEC IP50 |
Connecting method | Special connector (soldering not possible) |
Weight | Approx. 2.6 g |
