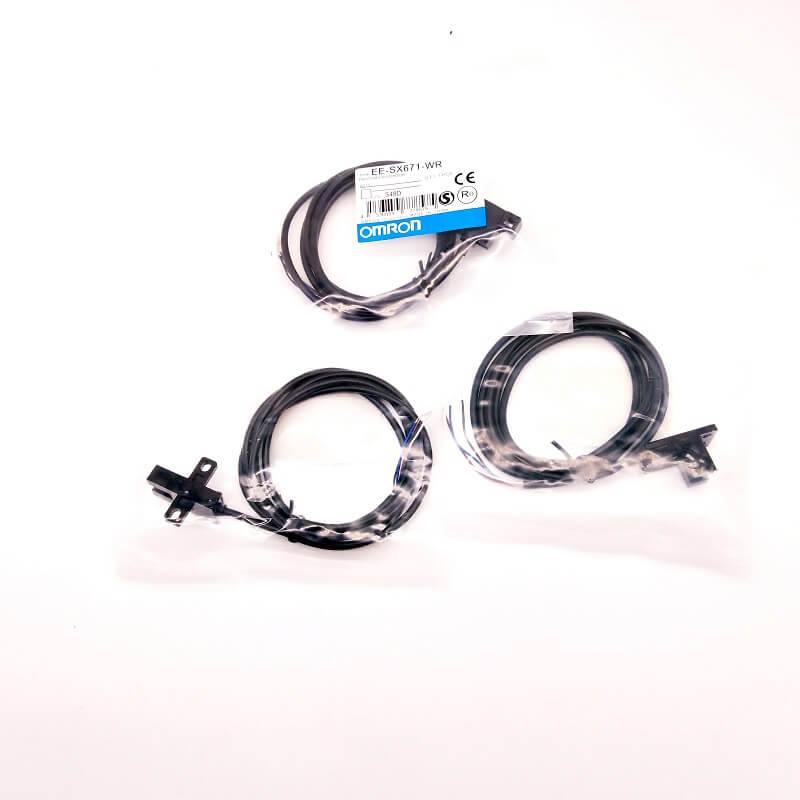

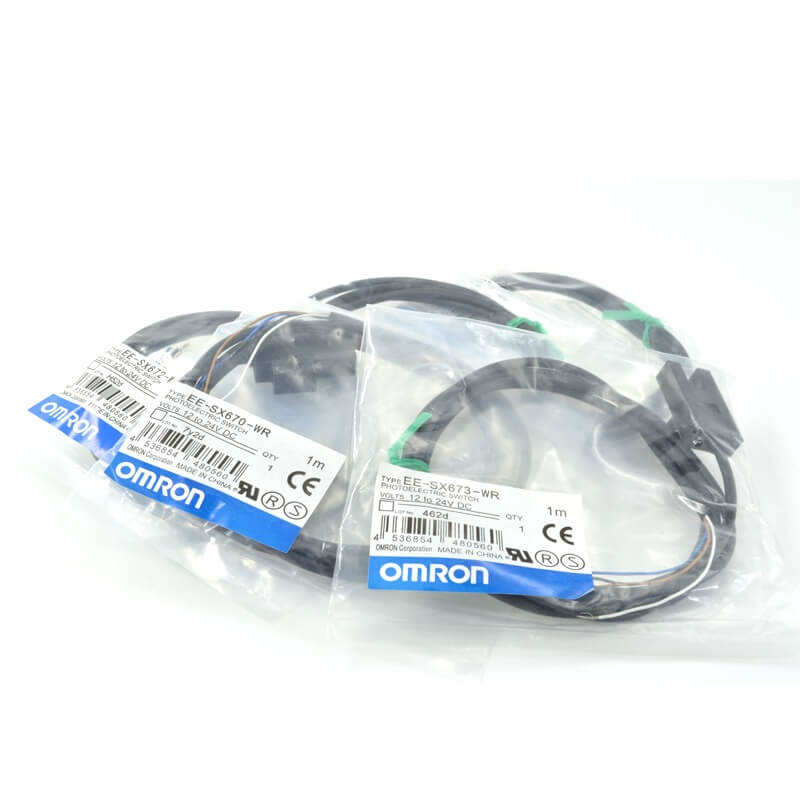

Omron Photomicro sensors EE-SX670-WR EE-SX671-WR EE-SX672-WR EE-SX673-WR

Series#: Omron Photomicro sensors

Product Details

  • Omron Photomicro sensors EE-SX670-WR EE-SX671-WR EE-SX672-WR EE-SX673-WR

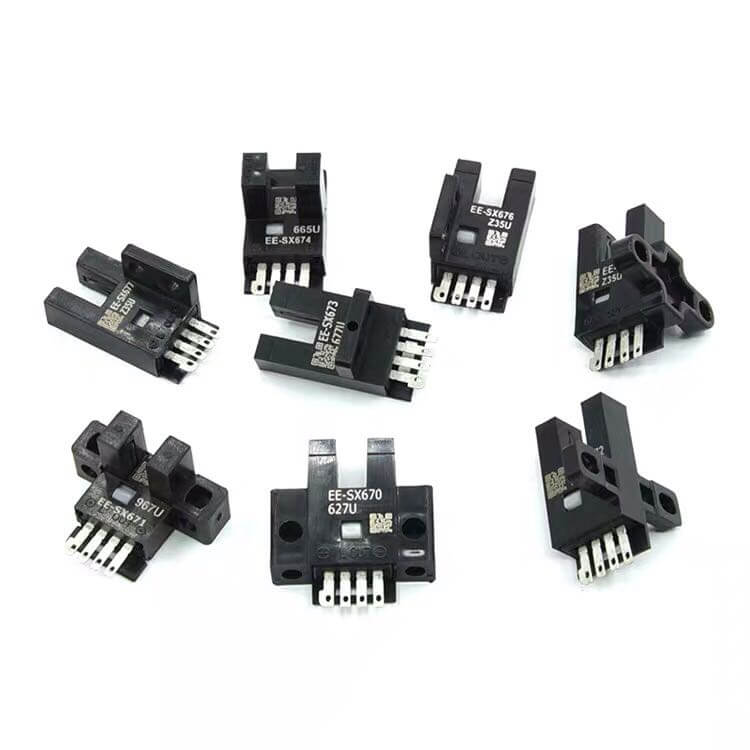

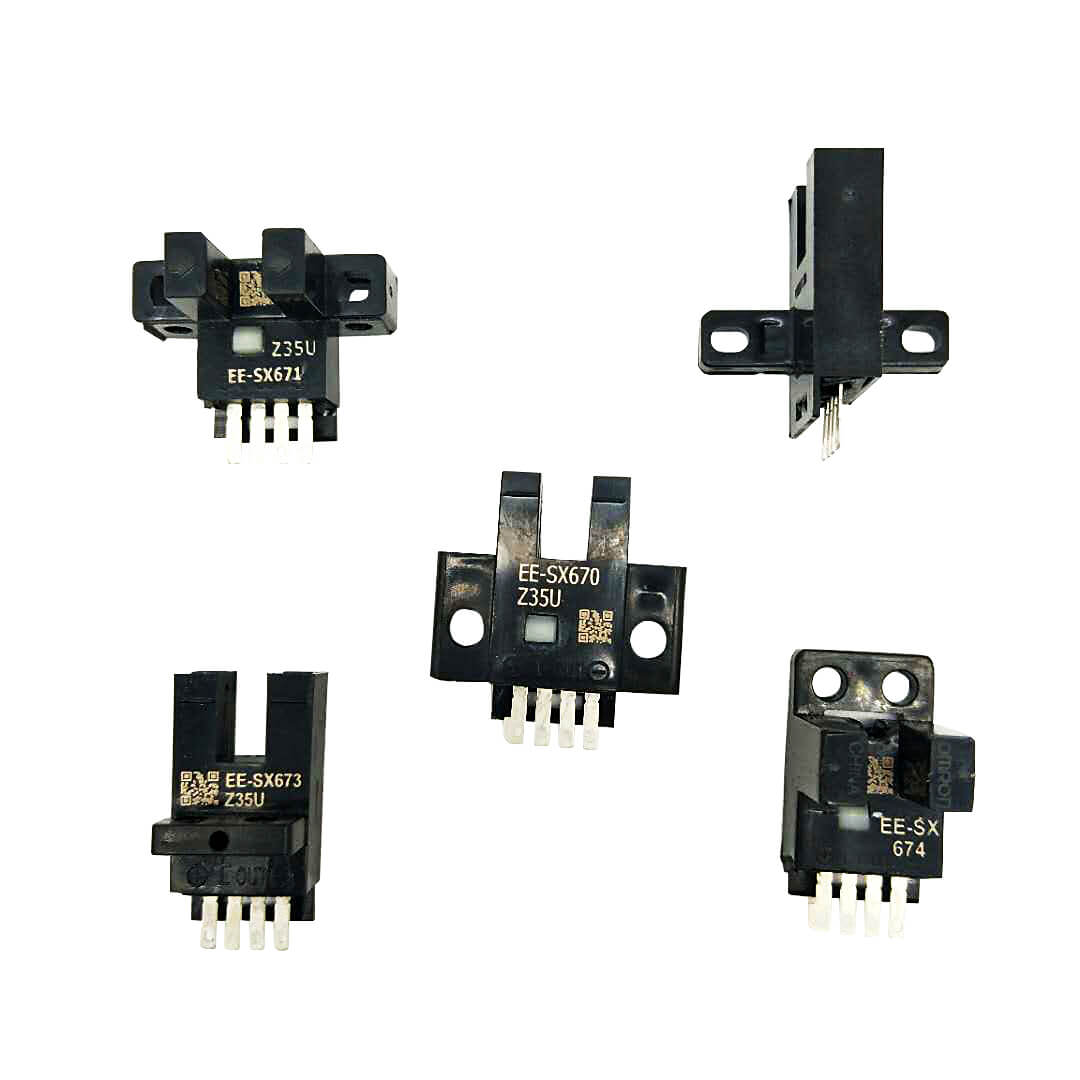

  • Omron Slot-type Photomicrosensor (Non-modulated)  EE-SX47/67
  • Global Standard Slot-type photomicrosensors with 50- to100-mA direct switching capacity.
  • Series includes models that enable switching betweendark-ON and light-ON operation.
  • Response frequency as high as 1 kHz.
  • Easy operation monitoring with bright light indicator.
  • Wide operating voltage range: 5 to 24 VDC
  • Models in which the light indicator turns ON for dark-ON
  • operation are also available.
  • A wide range of variations in eight different shapes.
  • Flexible robot cable is provided as a standard feature
Qty:

Specification

Type

Standard



L-shaped

T-shaped, slot center 7 mm

Close-mounting

T-shaped, slot center 10 mm

F-shaped



R-shaped

NPN Connector models EE-SX670

EE-SX670A EE-SX470

EE-SX671

EE-SX671A EE-SX471

EE-SX672

EE-SX672A EE-SX472

EE-SX673

EE-SX673A EE-SX473

EE-SX674

EE-SX674A EE-SX474



EE-SX675



EE-SX676



EE-SX677

NPN Pre-wired models EE-SX670- WR EE-SX671- WR EE-SX672- WR EE-SX673- WR EE-SX674- WR EE-SX675- WR EE-SX676- WR EE-SX677- WR
PNP Connector models EE-SX670P EE-SX670R EE-SX671P EE-SX671R EE-SX672P EE-SX672R EE-SX673P EE-SX673R EE-SX674P EE-SX674R EE-SX675P EE-SX676P EE-SX677P
PNP Pre-wired models EE-SX670P- WR EE-SX671P- WR EE-SX672P- WR EE-SX673P- WR EE-SX674P- WR EE-SX675P- WR EE-SX676P- WR EE-SX677P- WR
Sensing distance 5 mm (slot width)
Sensing object Opaque: 2 ´ 0.8 mm min.
Differential distance 0.025 mm
Light source Infrared LED with a peak wavelength of 940 nm
Indicator *1 Light indicator (red) (turns ON when light is interrupted for models with A or R suffix)
Supply voltage 5 to 24 VDC ±10%, ripple (p-p): 10% max.
Current consumption 12 mA max. (Connector models, L terminal open), 35 mA max. (NPN pre-wired models), 30 mA max. (PNP pre-wired models)




Control output

NPN open collector: 5 to 24 VDC, 100 mA max.

100 mA load current with a residual voltage of 0.8 V max. 40 mA load current with a residual voltage of 0.4 V max. OFF current (leakage current): 0.5 mA max.

PNP open collector: 5 to 24 VDC, 50 mA max.

50 mA load current with a residual voltage of 1.3 V max. OFF current (leakage current): 0.5 mA max.

Protection circuits Load short circuit protection (Connector models), No circuit protection (Pre-wired models)
Response frequency *2 1 kHz min. (3 kHz average)
Ambient illumination 1,000 lx max. with fluorescent light on the surface of the receiver.
Ambient temperature range Operating: -25 to +55°C, Storage: -30 to +80°C (with no icing or condensation)
Ambient humidity range Operating: 5% to 85%, Storage: 5% to 95% (with no icing or condensation)
Vibration resistance Destruction: 20 to 2,000 Hz (peak acceleration: 100 m/s2)

1.5-mm double amplitude for 2 h (4-min periods) each in X, Y, and Z directions

Shock resistance Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions
Degree of protection IEC60529 IP50
Connecting method Connector Models (direct soldering possible), Pre-wired Models (Standard cable length: 1 m), Models with Connectors (Standard cable length: 0.1 m)
Weight Connector models Approx. 3.1 g Approx. 3 g Approx. 2.4 g Approx. 2.3 g Approx. 3 g Approx. 2.7 g Approx. 2.2 g Approx. 2.2 g
Weight Pre-wired models Approx. 18.9 g Approx. 17.3 g Approx. 17.8 g Approx. 16.8 g Approx. 17.1 g Approx. 18.3 g Approx. 16.9 g Approx. 16.9 g
