Omron Photomicro sensors EE-SX975-C1 EE-SX976-C1 EE-SX977-C1 EE-SX970P-C1

Series#: Omron Photomicro sensors

Product Details

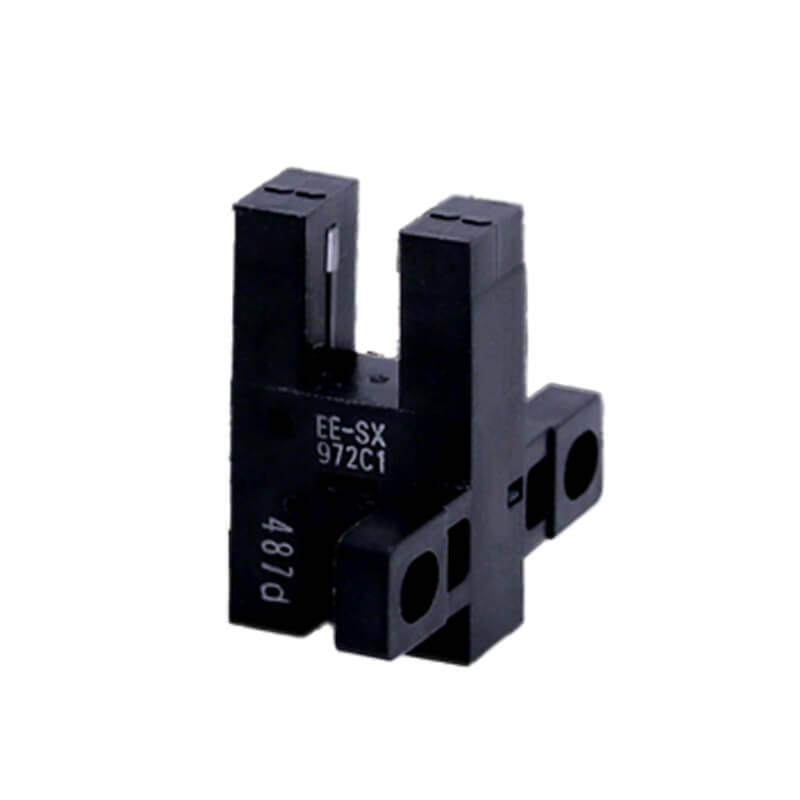

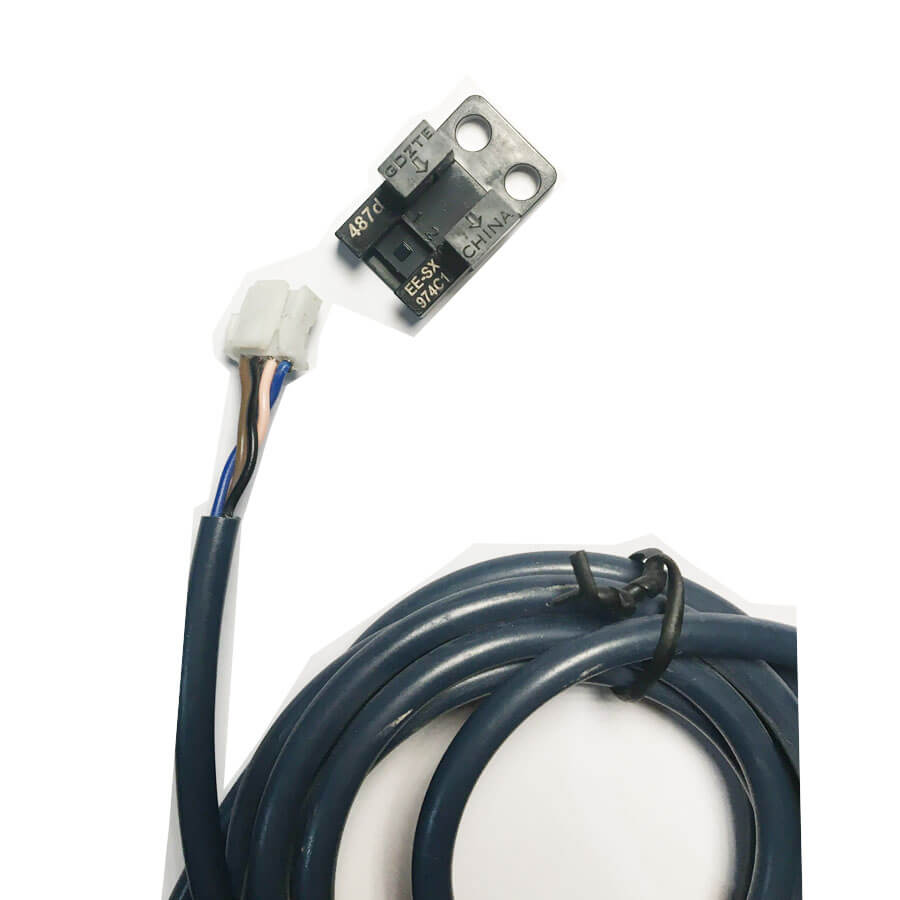

  • Omron Photomicro sensors EE-SX975-C1 EE-SX976-C1 EE-SX977-C1 EE-SX970P-C1
  • Built-in connector enables downsizing and easier connection. Protective circuit for safe operation.
  • A built-in connector minimizes the shape and dimensional requirements.
  • Two outputs: light-ON anddark-ON.
  • Complete lineup including seven different shapes.
  • Safer operation with built-in power supply reversepolarity protection.
  • output overcurrent protection with a thermal shutdown circuit (patent pending). *1
  • The indicator can be seen from many directions toenable installation in more

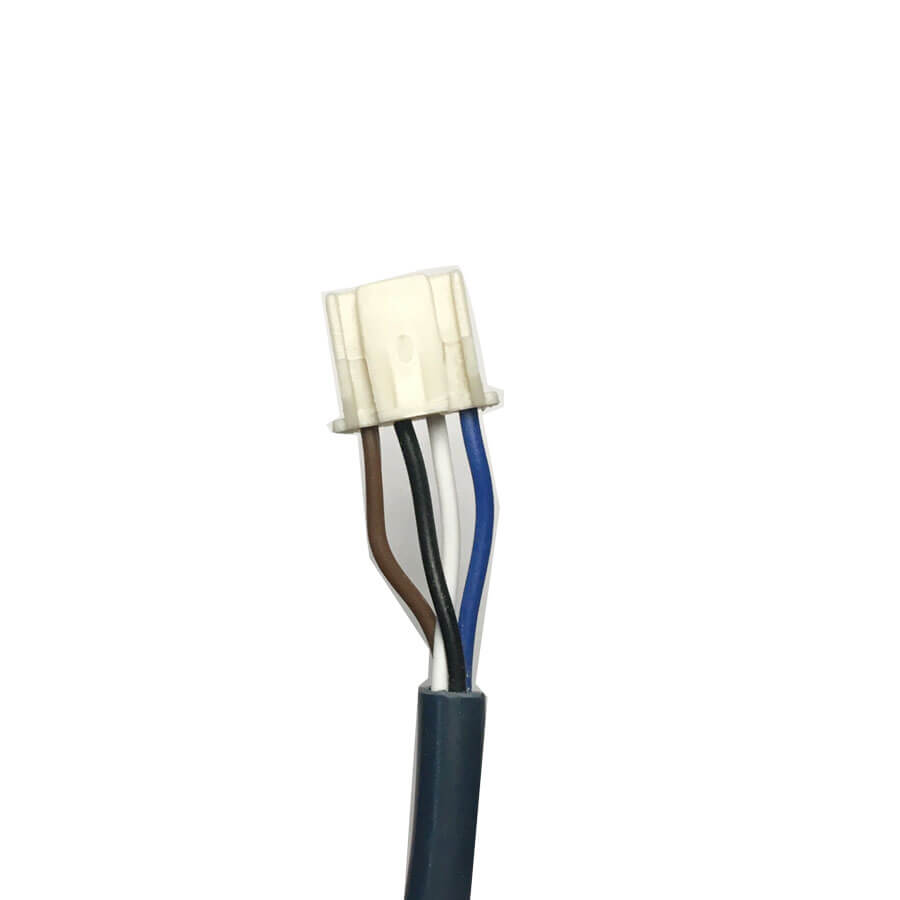

  • Connector with lock that mates with commercially available connectors. *2
Qty:

Specification

Type

Standard



L-shaped

T-shaped, slot center 7 mm Close-mount- ing T-shaped, slot center 10 mm

F-shaped



R-shaped

NPN EE-SX970-C1 EE-SX971-C1 EE-SX972-C1 EE-SX974-C1 EE-SX975-C1 EE-SX976-C1 EE-SX977-C1
PNP EE-SX970P-C1 EE-SX971P-C1 EE-SX972P-C1 EE-SX974P-C1 EE-SX975P-C1 EE-SX976P-C1 EE-SX977P-C1
Sensing distance 5 mm (slot width)
Sensing object Opaque: 2 ´ 0.8 mm min.
Differential distance 0.025 mm max. *1
Light source (Peak wave- length) Infrared LED with a peak wavelength of 940 nm
Indicator Light indicator (orange LED)
Supply voltage 5 to 24 VDC ±10%, ripple (p-p): 10% max.
Current consumption 21 mA max.


Control output

Load power supply voltage: 5 to 24 VDC, Load current: 50 mA max., Off-state current : 0.5mA max,

50 mA load current with a residual voltage of 1.0 V max., 5 mA load current with a residual voltage of 0.4 V max.

Protection circuit Power supply reverse polarity protection; output reverse polarity protection; overcurrent protection (only OUT2 on models with NPN output)
Response frequency 1 kHz min. (3 kHz average) *2
Ambient illumination 1,000 lx max. with fluorescent light on the surface of the receiver
Ambient temperature range Operating: -25 to 55°C Storage: -30 to 80°C (with no icing or condensation)
Ambient humidity range Operating: 5% to 85% Storage: 5% to 95% (with no icing or condensation)
Vibration resistance (De- struction) 10 to 2,000 Hz 0.75-mm single amplitude (15-min periods, 10 cycles) each in X, Y, and Z directions
Shock resistance (De- struction) Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions
Degree of protection IEC 60529 IP50
Connecting method Connector
Weight (Packed state) Approx. 3 g
Case/Cover Polybutylene terephthalate (PBT)
Emitter/receiver Polycarbonate (PC)
