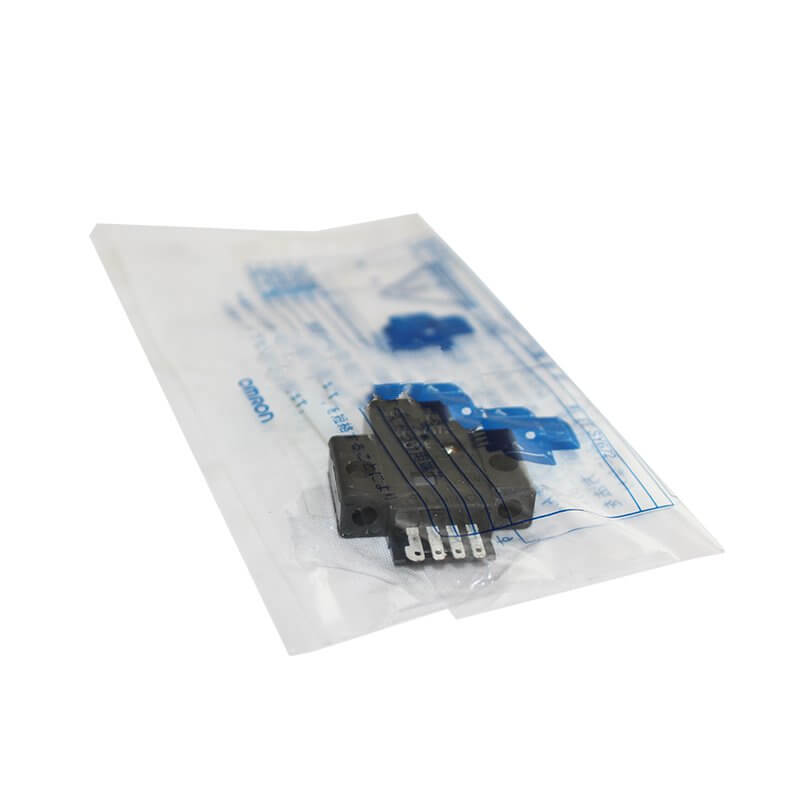

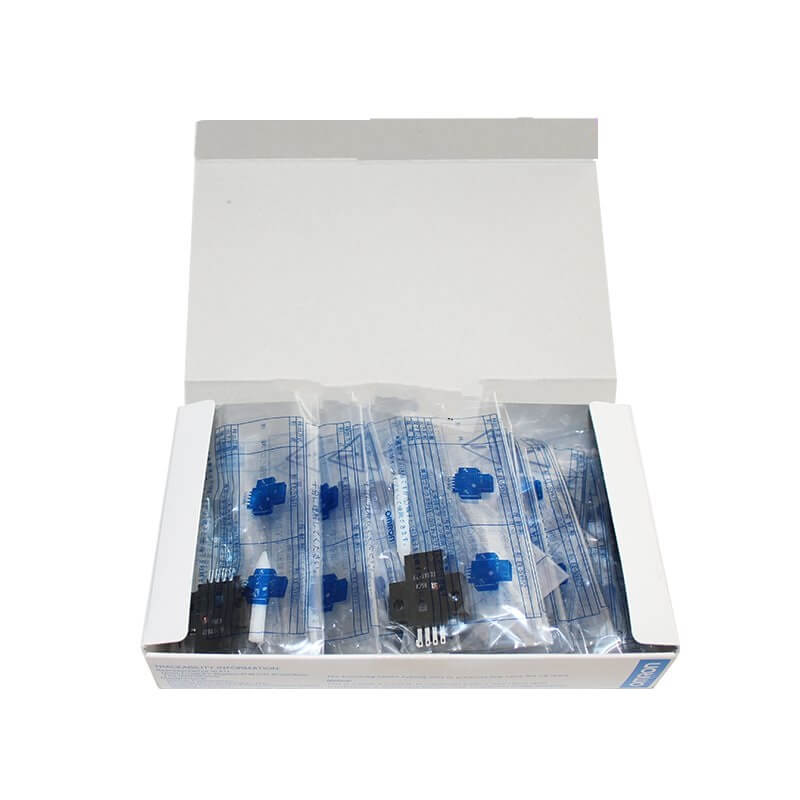

Omron Photomicro sensors EE-SY671 EE-SY672

Series#: Omron Photomicro sensors

Product Details

  • Reflective Photomicrosensor with Sensitivity Adjuster (Non-modulated) EE-SY671 / 672
  • Photomicrosensor with sensitivity adjuster.
  • Easy adjustment with a built-in sensitivity adjuster.
  •  Easy optical axis monitoring with a bright light indicator.
  •  Compact design incorporating a built-in amplifier and special IC enables direct switching capacity of up to 100 mA.
  •  Wide operating voltage range: 5 to 24 VDC
  •  Connection possible with a range of ICs, relays, and Programmable Controllers (PLCs).
Qty:

Specification

Models EE-SY671, EE-SY672
Sensing distance 1 to 5 mm (Reflection factor: 90%; white paper 15 × 15 mm)
Sensing object Transparent or opaque: 15 × 15 mm min.
Differential distance 0.5 max. (with a sensing distance of 3 mm, horizontally)
Light source GaAs infrared LED with a peak wavelength of 940 nm
Indicator *1 Light indicator (red)
Supply voltage 5 to 24 VDC ±10%, ripple (p-p): 10% max.
Current consumption 40 mA max.
Control output NPN open collector:
Load power supply voltage: 5 to 24 VDC
Load current: 100 mA max.
OFF current: 0.5 mA max.
100 mA load current with a residual voltage of 0.8 V max.
40 mA load current with a residual voltage of 0.4 V max.
Response frequency *2 50 Hz min. (Average: 500 Hz)
Ambient illumination *3 1,500 lx max. with fluorescent light on the surface of the receiver
Ambient temperature range Operating: – 25 to +55°C
Storage: – 30 to +80°C
Ambient humidity range Operating: 5% to 85%
Storage: 5% to 95%
Vibration resistance Destruction: 20 to 2,000 Hz (peak acceleration: 100 m/s2)
1.5-mm double amplitude for 2 h (4-min periods) each in X, Y, and Z directions
Shock resistance Destruction: 500m/s2 for 3 times each in X, Y, and Z directions
Degree of protection IEC IP50
Connecting method Special connector (direct soldering possible)
Weight Approx. 3.5 g (including screwdriver for adjustment)
Material Case Polybutylene phthalate (PBT)
  Emitter/receiver Polycarbonate
Accessories Screwdriver for adjustment
