Omron PLC Analog I/O Module CP1W-MAD42/MAD44 CP1W-MAD11

Series#: Omron PLC

Product Details

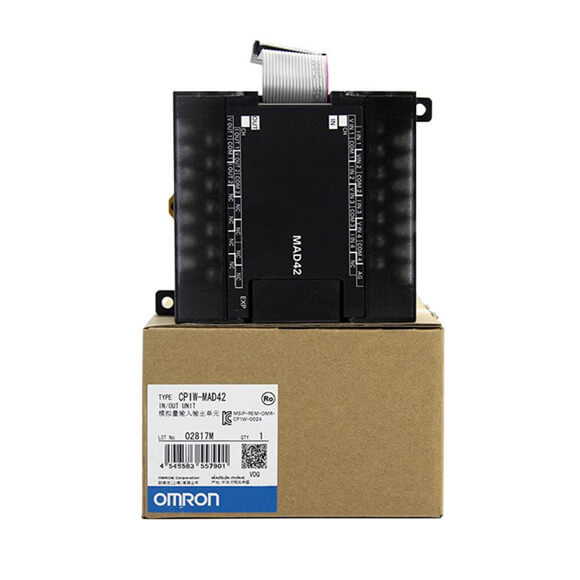

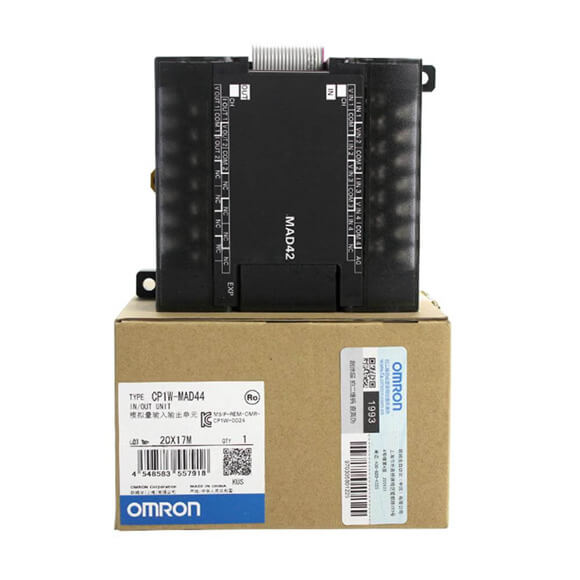

  • Omron PLC Analog I/O Module CP1W-MAD42/CP1W-MAD44 CP1W-MAD11
  • Omron PLC Controller Module CP-series
  • We are First Class Omron plc dealer and omron plc distributor in China.
  • We can Supply Omron automation parts,such as Omron PLC,Omron Servo Motor,Omron HMI,Omron VFD and Omron Relay and Omron Sensor and ect.
  • 100% Original and new,In stock by Omron Automation
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

model CP1W-MAD42/CP1W-MAD44 CP1W-MAD11
Item Voltage I/O Current I/O Voltage I/O Current I/O
Analog Input Section 4 inputs (4 words allocated) 2 inputs (2 words allocated)


Input signal range

0 to 5 VDC, 1 to 5

VDC, 0 to 10 VDC, or

–10 to 10 VDC



0 to 20 mA or 4 to 20 mA

0 to 5 VDC, 1 to 5 VDC,

0 to 10 VDC, or -10

to 10 VDC



0 to 20 mA or 4 to 20 mA

Max. rated input ±15 V ±30 mA ±15 V ±30 mA
External input impedance 1 MΩ min. Approx. 250 Ω 1 MΩ min. Approx. 250 Ω
Resolution 1/12000 (full scale) 1/6000 (full scale)
25°C

0 to 55°C

0.2% full scale 0.3% full scale 0.3% full scale 0.4% full scale
  0.5% full scale 0.7% full scale 0.6% full scale 0.8% full scale


A/D conversion data

16-bit binary (4-digit hexadecimal)

Full scale for –10 to 10 V: E890 to 1770 hex Full scale for other ranges: 0000 to 2EE0 hex

16-bit binary (4-digit hexadecimal)

Full scale for -10 to 10 V: F448 to 0BB8 hex Full scale for other ranges: 0000 to 1770 hex

Averaging function Supported Supported (Settable for individual inputs via DIP switch)
Open-circuit detection function Supported
Number of outputs CP1W-MAD42: 2 outputs (2 words allocated)

CP1W-MAD44: 4 outputs (4 words allocated)

1 output (1 word allocated)


Output signal range

1 to 5 VDC, 0 to 10 VDC, or

-10 to 10 VDC

0 to 20 mA or 4 to 20 mA 1 to 5 VDC, 0 to 10 VDC, or

-10 to 10 VDC

0 to 20 mA or 4 to 20 mA
Allowable external output load resistance 2 kΩ min. 350 Ω max. 1 kΩ min. 600 Ω max.
External output impedance 0.5 Ω max. 0.5 Ω max.
Resolution 1/12000 (full scale) 1/6000 (full scale)
25°C

0 to 55°C

0.3% full scale 0.4% full scale
  0.7% full scale 0.8% full scale


Set data (D/A conversion)

16-bit binary (4-digit hexadecimal)

Full scale for -10 to 10 V: E890 to 1770 hex Full scale for other ranges: 0000 to 2EE0 hex

16-bit binary (4-digit hexadecimal)

Full scale for -10 to 10 V: F448 to 0BB8 hex Full scale for other ranges: 0000 to 1770 hex

Conversion time CP1W-MAD42: 1 ms/point (6 ms/all points)

CP1W-MAD44: 1 ms/point (8 ms/all points)

2 ms/point (6 ms/all points)
Isolation method Photocoupler isolation between analog I/O terminals and internal circuits. No isolation between analog I/O signals.


Current consumption

CP1W-MAD42: 5 VDC: 120 mA max., 24

VDC: 120 mA max.

CP1W-MAD44: 5 VDC: 120 mA max., 24

VDC: 170 mA max.



5 VDC: 83 mA max., 24 VDC: 110 mA max.
