Omron PLC Analog I/O Unit CJ1W-MAD42

Series#: Omron PLC

Product Details

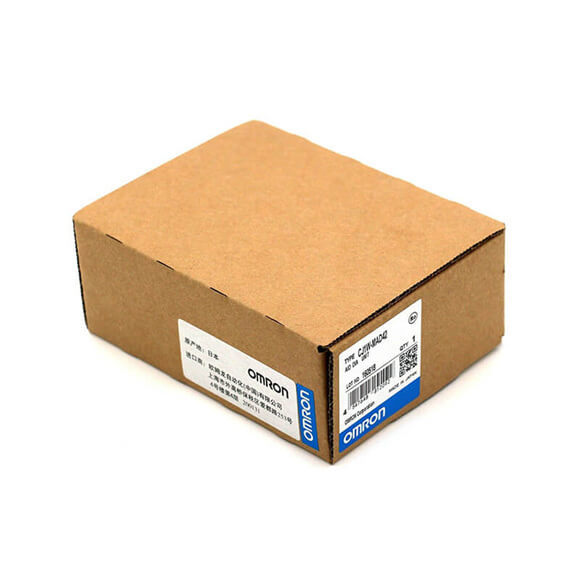

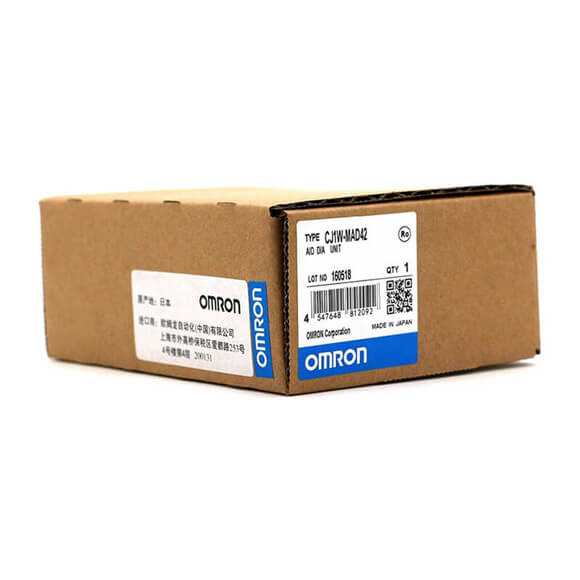

Omron PLC Analog I/O Unit CJ1W-MAD42
Omron PLC Controller Module CP-series
We are First Class Omron plc dealer and omron plc distributor in China.
We can Supply Omron automation parts,such as Omron PLC,Omron Servo Motor,Omron HMI,Omron VFD and Omron Relay and Omron Sensor and ect.
100% Original and new,In stock by Omron Automation
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Name	Specifications	Model
CJ Unit Adapter	Adapter for connecting CJ-series Special I/O Units and CPU Bus Units (includes CJ-series End Cover and 2 End Plates)	CP1W-EXT01
Analog Input Units	4 inputs (1 to 5 V (1/10,000), 0 to 10 V (1/20,000), -5 to 5 V (1/20,000),-10 to 10 V (1/40,000), and 4 to 20 mA (1/10,000)) Conversion Period: 20 µs/1 point, 25 µs/2 points, 30 µs/3 points, 35 µs/4 points	CJ1W-AD042
	8 inputs (1 to 5 V, 0 to 5 V, 0 to 10 V, –10 to 10 V, 4 to 20 mA) Resolution: 1/8,000, Conversion speed: 250 ms/input max. (Can be set to 1/4,000 resolution and 1 ms/input.)	CJ1W-AD081-V1
	4 inputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA) Resolution: 1/8,000, Conversion speed: 250 ms/input max. (Can be set to 1/4,000 resolution and 1 ms/input.)	CJ1W-AD041-V1
Analog Output Units	4 outputs (1 to 5 V (1/10,000), 0 to 10 V (1/20,000), and -10 to 10 V (1/40,000) Conversion Period: 20 µs/1 point, 25 µs/2 points, 30 µs/3 points, 35 µs/4 points	CJ1W-DA042V
	8 outputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V) Resolution: 1/4,000; Conversion speed: 1 ms/output max. (Can be set to 1/8000, 250 µs/output.)	CJ1W-DA08V
	8 outputs (4 to 20 mA)Resolution: 1/4,000; Conversion speed: 1 ms/output max. (Can be set to 1/8,000, 250 µs/ output.)	CJ1W-DA08C
	4 outputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA) Resolution: 1/4,000, Conversion speed: 1ms/point max.	CJ1W-DA041
	2 outputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA) Resolution: 1/4,000, Conversion speed: 1ms/point max.	CJ1W-DA021

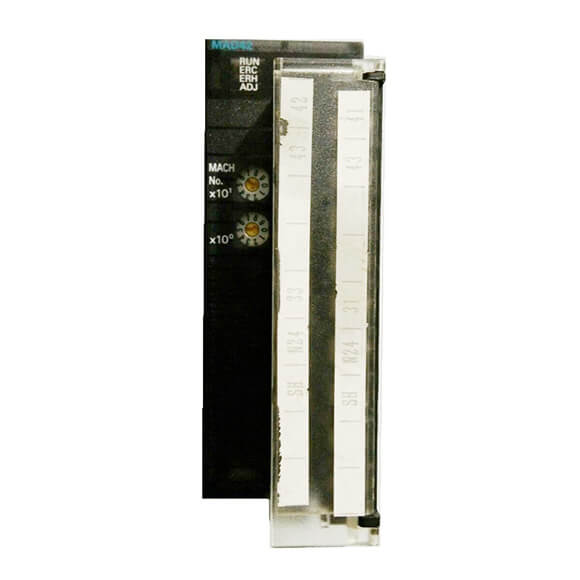

Analog I/O Unit	4 inputs, 2 outputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA) Resolution: 1/4000; Conversion speed: 1 ms/point max.(Can be set to 1/8,000, 500 µs/point.)	CJ1W-MAD42
Process Input Units	4 fully universal inputs: Pt100 (3-wire), JPt100 (3-wire), Pt1000 (3-wire), Pt100 (4 wire), K, J, T, E, L, U, N, R, S, B, WRe5-26, PLII, 4 to 20 mA,0 to 20 mA, 1 to 5 V, 0 to 1.25 V, 0 to 5 V, 0 to 10 V, ±100-mV selectable range, -1.25 to 1.25 V, -5 to 5 V, -10 to 10 V, ±10-V selectable range Potentiometer resolution/conversion speed: 1/256,000 (conversion cycle: 60 ms/4 points), 1/64,000 (conversion cycle: 10 ms/4 points), 1/16,000 (conversion cycle: 5 ms/4 points)	CJ1W-PH41U *
	4 fully universal inputs: Pt100, JPt100, Pt1000, K, J, T, L, R, S, B, 4 to 20 mA, 0 to 20 mA, 1 to 5 V, 0 to 5 V, 0 to 10 VConversion speed: 250 ms/4 points	CJ1W-AD04U
	4 inputs, B, J, K, L, R, S, T; Conversion speed: 250 ms/4 inputs	CJ1W-PTS51
	4 inputs, Pt100 Ω (JIS, IEC), JPt100 Ω, Conversion speed: 250 ms/4 inputs	CJ1W-PTS52
	2 inputs, B, E, J, K, L, N, R, S, T, U, W, Re5-26, PL ±100 mV,Resolution: 1/64,000; Conversion speed: 10 ms/2 inputs	CJ1W-PTS15
	2 inputs, 0 to 1.25 V, -1.25 to 1.25 V, 0 to 5 V, 1 to 5 V, -5 to 5 V, 0 to 10 V,-10 to 10 V, ±10-V selectable range, 0 to 20 mA, 4 to 20 mA	CJ1W-PDC15
Temperature Control Units	4 loops, thermocouple input, NPN output	CJ1W-TC001
	4 loops, thermocouple input, PNP output	CJ1W-TC002
	2 loops, thermocouple input, NPN output, heater burnout detection function	CJ1W-TC003
	2 loops, thermocouple input, PNP output, heater burnout detection function	CJ1W-TC004
	4 loops, platinum resistance thermometer input, NPN output	CJ1W-TC101
	4 loops, platinum resistance thermometer input, PNP output	CJ1W-TC102
	2 loops, platinum resistance thermometer input, NPN output, heater burnout detection function	CJ1W-TC103
	2 loops, platinum resistance thermometer input, PNP output, heater burnout detection function	CJ1W-TC104
High-speed Counter Unit	2 inputs, max. input frequency: 500 kpps	CJ1W-CT021
Position Control Units	Pulse train, open collector output, 1 axis	CJ1W-NC113
	Pulse train, open collector output, 2 axes	CJ1W-NC213
	Pulse train, open collector output, 4 axes	CJ1W-NC413
	Pulse train, line driver output, 1 axis	CJ1W-NC133
	Pulse train, line driver output, 2 axes	CJ1W-NC233
	Pulse train, line driver output, 4 axes	CJ1W-NC433
Space Unit	—	CJ1W-SP001
ID Sensor Units	For V680 Series, 1 R/W Head	CJ1W-V680C11
	For V680 Series, 2 R/W Heads	CJ1W-V680C12
	For V600 Series, 1 R/W Head	CJ1W-V600C11
	For V600 Series, 2 R/W Heads	CJ1W-V600C12
CompoNet Master Unit	Word slaves: 2,048 points, Bit slaves: 512 points	CJ1W-CRM21
CompoBus/S Master Unit	CompoBus/S remote I/O, 256 points max.	CJ1W-SRM21
