Omron PLC CJ1 Power Supply Units CJ1W-PA205C/PA205R

Series#: Omron PLC

Product Details

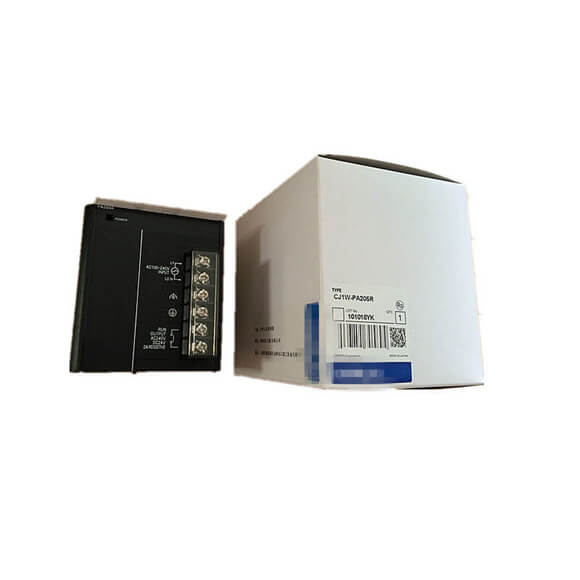

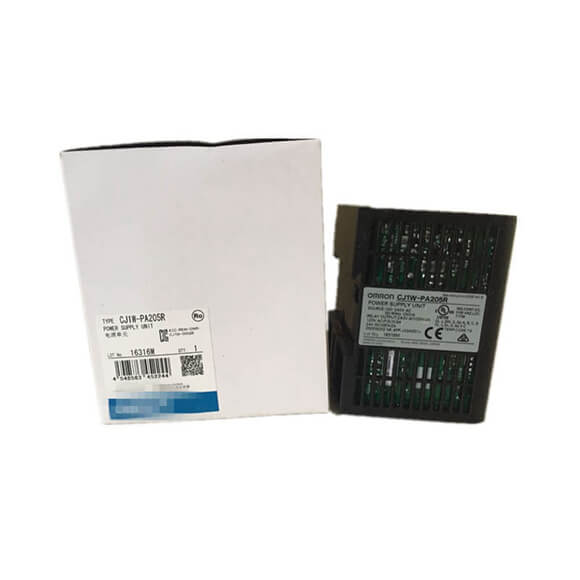

  • Omron PLC CJ1 Power Supply Units CJ1W-PA205C/PA205R /PA202/PD025/PD022
  • Omron PLC Controller Module CJ1W-series
  • We are First Class Omron plc dealer and omron plc distributor in China.
  • We can Supply Omron automation parts,such as Omron PLC,Omron Servo Motor,Omron HMI,Omron VFD and Omron Relay and Omron Sensor and ect.
  • 100% Original and new,In stock by Omron Automation
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Item Specifications
Power Supply Unit CJ1W-PA205R CJ1W-PA205C CJ1W-PA202 CJ1W-PD025 CJ1W-PD022
Supply voltage 100 to 240 V AC (wide-range), 50/60 Hz 24 VDC
Operating voltage and frequency ranges 85 to 264 V AC, 47 to 63 Hz 19.2 to 28.8 V DC 21.6 to 26.4 V DC
Power consumption 100 VA max. 50 VA max. 50 W max. 35 W max.




Inrush current (See note 1.)



At 100 to 120 V AC:

15 A/8 ms max. for cold start at room temperature At 200 to 240 V AC:

30 A/8 ms max. for cold start at room temperature

At 100 to 120 V AC:

20 A/8 ms max. for cold start at room temperature At 200 to 240 V AC:

40 A/8 ms max. for cold start at room temperature





At 24 V DC:

30 A/20 ms max. for cold start at room temperature



Output capacity (See note 7.)



5.0 A, 5 V DC (including supply to CPU Unit)

2.8 A, 5 V DC

(including supply to CPU Unit)

5.0 A, 5 V DC

(including supply to CPU Unit)

2.0 A, 5 V DC

(including supply to CPU Unit)

0.8 A, 24 V DC 0.4 A, 24 V DC 0.8 A, 24 V DC 0.4 A, 24 V DC
Total: 25 W max. Total: 14 W max. Total: 25 W max. Total: 19.6 W max.
Output terminal (service supply) Not provided.
Replacement notifica- tion function

Not provided.

With Alarm output (open- collector output)

30 V DC max., 50 mA max.



Not provided.









Insulation resistance





20 MΩ min. (at 500 V DC) between AC external and GR terminals

(See note 3.)

· 20 MΩ min. (at 500 V DC) between all external terminals and GR terminal (See note 3.), and between all alarm output terminals.

· 20 MΩ 1 min. (at 250 V DC) between all alarm output terminals and GR terminal (See note 3.).





20 MΩ min. (at 500 V DC) between AC external and GR terminals

(See note 3.)





20 MΩ min. (at 500 V DC) between DC external and GR terminals (See note 3.)







(See note 6.)















Dielectric strength (See note 4.)









2,300 V AC 50/60 Hz

for 1 min between AC external and GR terminals (See note 3.) Leakage current: 10 mA max.

· 2,300 VAC, 50/60 Hz

for 1 minute between all external terminals and GR terminal (See note 3.) and between all alarm output terminals with a leakage current of 10 mA max.

· 1,000 V AC, 50/60 Hz

for 1 minute between all alarm output terminals and GR terminal (See note 3.) with a leakage current of 10 mA max.









2,300 V AC 50/60 Hz

for 1 min between AC external and GR terminals (See not 3.) Leakage current: 10 mA max.









1,000 V AC, 50/60 Hz for

1 minute between DC external and GR terminals (See note 3.) Leakage current: 10 mA max.















(See note 6.)

1,000 V AC, 50/60 Hz for 1 minute between DC external and GR terminals (See note 3.) Leakage current: 10 mA max.
Noise immunity 2 kV on power supply line (conforming to IEC61000-4-4)


Vibration Resistance

Conforms to IEC60068-2-6

5 to 8.4 Hz with 3.5-mm amplitude, 8.4 to 150 Hz

Acceleration of 9.8 m/s2 for 100 min in X, Y, and Z directions (10 sweeps of 10 min each = 100 min total)

Shock Resistance Conforms to IEC60068-2-27

147 m/s2, 3 times in X, Y, and Z directions (100 m/s2 for Relay Output Units)

Ambient operating temperature 0 to 55°C
Ambient operating humidity 10% to 90% (with no condensation) 10% to 90% (with no condensation)

(See note 5.)



10% to 90% (with no condensation)

Atmosphere Must be free from corrosive gases.
Ambient storage temperature -20 to 70°C (excluding battery) -20 to 75°C (See note 5.) -20 to 75°C (excluding battery)
Grounding Less than 100 Ω
Enclosure Mounted in a panel.
Weight All models are each 5 kg max.
