Omron PLC CP-series CP1E CPU Units CP1E-E40SDR-A CP1E-E60SDR-A

Series#: Omron PLC

Product Details

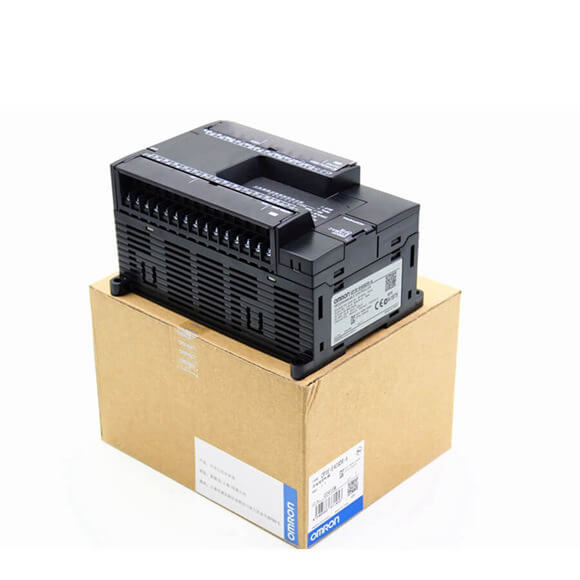

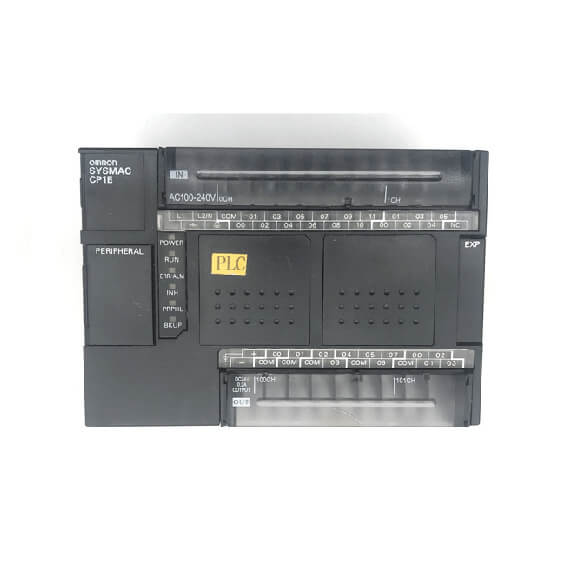

  • Omron PLC CP-series CP1E CPU Units CP1E-E40SDR-A CP1E-E60SDR-A
  • New CP1E CPU Units now available.
  • Omron PLC Controller Module CP1E-Series
  • We are First Class Omron plc dealer and omron plc distributor in China.
  • We can Supply Omron automation parts,such as Omron PLC,Omron Servo Motor,Omron HMI,Omron VFD and Omron Relay and Omron Sensor and ect.
  • 100% Original and new,In stock by Omron Automation
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Type AC power supply models DC power supply models
Model CP1E-@@@S@D@-A CP1E-@@@D@-A CP1E-@@@S@D@-D CP1E-@@@D@-D
Enclosure Mounted in a panel






Dimensions (H × × W)

E/N/NA@@-typeCPU Unit with 10 I/O points (CP1E-E10D@@): 90mm *1 × 85mm *2 × 66 mm

CPU Unit with 14 or 20 I/O points (CP1E-@14D@@/@20D@@): 90mm *1 × 85mm *2 × 86 mm CPU Unit with 30 I/O points (CP1E-@30D@@): 90mm *1 × 85mm *2 × 130 mm

CPU Unit with 40 I/O points (CP1E-@40D@@): 90mm *1 × 85mm *2 × 150 mm CPU Unit with 60 I/O points (CP1E-N60D@@): 90mm *1 × 85mm *2 × 195 mm

CPU Unit with 20 I/O points and built-in analog (CP1E-NA20D@@): 90mm *1 × 85mm *2 × 130 mm

E/N/@@S(1)-type

CPU Unit with 14 or 20 I/O points (CP1E-@14SD@@/@20SD@@): 90mm *1 × 79mm *2 × 86 mm CPU Unit with 30 I/O points (CP1E-@30S(1)D@@): 90mm *1 × 79mm *2 × 130 mm

CPU Unit with 40 I/O points (CP1E-@40S(1)D@@): 90mm *1 × 79mm *2 × 150 mm CPU Unit with 60 I/O points (CP1E-@60S(1)D@@): 90mm *1 × 79mm *2 × 195 mm





Weight

CPU Unit with 10 I/O points (CP1E-E10D@@): 300g max. CPU Unit with 14 I/O points (CP1E-@14(S)D@@): 360g max. CPU Unit with 20 I/O points (CP1E-@20(S)D@@): 370g max.CPU Unit with 30 I/O points (CP1E-@30(S@)D@@): 600g max. CPU Unit with 40 I/O points (CP1E-@40(S@)D@@): 660g max. CPU Unit with 60 I/O points (CP1E-@60(S@)D@@): 850g max.

CPU Unit with 20 I/O points and built-in analog (CP1E-NA20D@@): 680g max.

Supply voltage 100 to 240 VAC 50/60 Hz 24 VDC
Operating voltage range 85 to 264 VAC 20.4 to 26.4 VDC




Power consumption

15 VA/100 VAC max.25 VA/240 VAC max.

(CP1E-E10D@-A/@14(S)D@-A/@20(S)D@-A)

9 W max. (CP1E-E10D@-D)13 W max. (CP1E-N14D@-D/N20D@-D)
50 VA/100 VAC max.70 VA/240 VAC max.

(CP1E-NA20D@-A/@30(S@)D@-A/@40(S@)D@-A/ N60(S@)D@-A)

20 W max.(CP1E-NA20D@-D/N30(S@)D@-D/N40(S@)D@-D/ N60(S@)D@-D) *4
 Inrush current 120 VAC, 20 A for 8 ms max. for cold start at room temperature240 VAC, 40 A for 8 ms max. for cold start at room temperature  24 VDC, 30 A for 20 ms max. for cold start at room temperature
 External power supply

*3

Not provided.(CP1E-E10D@-A/@14(S)D@-A/@20(S)D@-A) 24 VDC, 300 mA

(CP1E-NA20D@-A/@30D@-A/@40D@-A/@60D@-A/

@30SDR-A/@40SDR-A/@60SDR-A)



Not provided

Insulation resistance 20 MΩ min. (at 500 VDC) between the external AC terminals and GR terminals Except between DC primary current and DC secondary current
Dielectric strength 2,300 VAC 50/60Hz for 1 min between AC external and GR terminals Leakage current: 5 mA max. Except between DC primary current and DC secondary current
Ambient operating temperature 0 to 55 °C
Ambient humidity 10% to 90%
Atmosphere No corrosive gas.
Ambient storage temperature -20 to 75 °C (excluding battery)
Altitude 2,000 m max.
Pollution degree 2 or less: Meets IEC 61010-2-201.
Noise resistance 2 kV on power supply line (Conforms to IEC61000-4-4.)
Overvoltage category Category II: Meets IEC 61010-2-201.
EMC Immunity Level Zone B
Vibration resistance Conforms to JIS 60068-2-6.5 to 8.4 Hz with 3.5-mm amplitude, 8.4 to 150 Hz

Acceleration of 9.8 m/s2 for 100 min in X, Y, and Z directions (10 sweeps of 10 min each = 100 min total)

Shock resistance Conforms to JIS 60068-2-27.147 m/s2, 3 times in X, Y, and Z directions
Terminal block Fixed (not removable)
Terminal screw size M3
Applicable standards Conforms to EC Directive
Grounding method Ground to 100 Ω or less.
