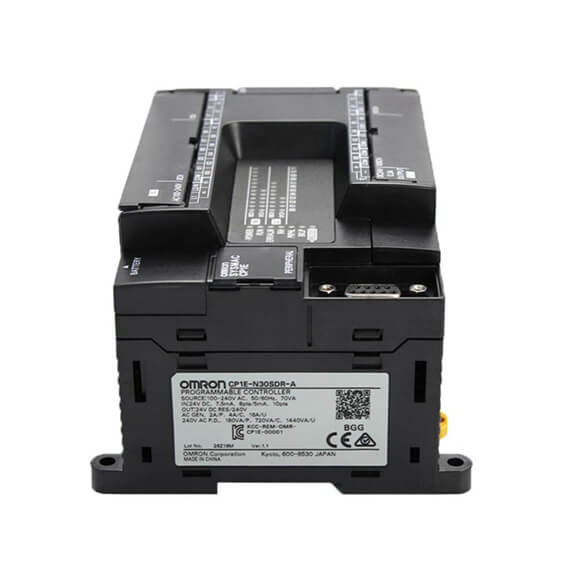

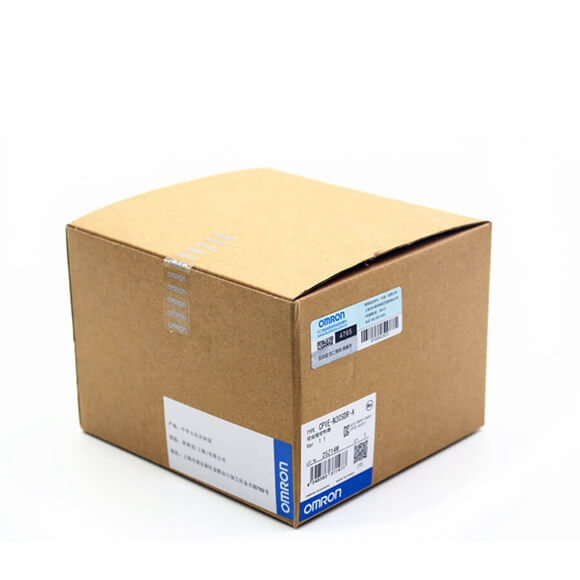

Omron PLC CP-series CP1E CPU Units CP1E-N30SDR-A CP1E-N30SDT-D/N30SDT1-D

Series#: Omron PLC

Product Details

  • Omron PLC CP-series CP1E CPU Units CP1E-N30SDR-A CP1E-N30SDT-D/N30SDT1-D
  • New CP1E CPU Units now available.
  • Omron PLC Controller Module CP1E-Series
  • We are First Class Omron plc dealer and omron plc distributor in China.
  • We can Supply Omron automation parts,such as Omron PLC,Omron Servo Motor,Omron HMI,Omron VFD and Omron Relay and Omron Sensor and ect.
  • 100% Original and new,In stock by Omron Automation
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Item CP1E-E@@SD@-@ CP1E-E@@D@-@ CP1E-N@@S@D@-@ CP1E-N@@D@-@ CP1E-NA@@D@-@
Transmission distance 5 m max.
Built-in RS-232C port







No built-in RS-232C port

Interface: Conforms to EIA RS-232C.
Communications method Half duplex
synchronization Start-stop
Baud rate 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6, or 115.2 kbps
Transmission distance 15 m max.
 Supported protocol · Host Link· 1:N NT Link

· No-protocol mode

· Serial PLC Links (master, slave)

· Modbus-RTU Easy Master

 Built-in RS-485 port









No built-in RS-485 port

N30/40/60S1-type onlyInterface: Conforms to EIA RS-485. 2-wire sensors No isolation
Communications method Half duplex
synchronization Start-stop
Baud rate 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6, or 115.2 kbps
Transmission distance 50 m max.
 Supported protocol · Host Link· 1:N NT Link

· No-protocol mode

· Serial PLC Links (master, slave)

· Modbus-RTU Easy Master

Serial Option port









Option Board cannot be mounted.

N30/40/60 and NA20-type only 1 port
 Mountable Option Boards · One RS-232C port: CP1W-CIF01· One RS-422A/485 port (not isolated): CP1W-CIF11

· One RS-422A/485 port (isolated): CP1W-CIF12-V1

· One Ethernet port: CP1W-CIF41

Communications method Depends on Option Board.
synchronization Depends on Option Board.
Baud rate 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6, or 115.2 kbps
 Compatible protocols · Host Link· 1:N NT Link

· No-protocol mode

· Serial PLC Links (master, slave)

· Modbus-RTU Easy Master

 Number of tasks 17· One cyclic execution task

· One scheduled interrupt task (always interrupt task 1)

· Six input interrupt tasks (interrupt tasks 2 to 7)

· Sixteen high-speed counter interrupt tasks (interrupt tasks 1 to 16)

Maximum subroutine number 128
Maximum jump number 128
Scheduled interrupt tasks 1 interrupt task
 Clock  Clock function not included.

The time of error occurrence displays 01-01-01 01:01:01 Sunday

Included.Accuracy (monthly deviation):

-4.5 min to -0.5 min at ambient temperature of 55oC,

-2.0 min to +2.0 min at ambient temperature of 25oC,

-2.5 min to +1.5 min at ambient temperature of 0oC

Built-in EEPROM Ladder programs and parameters are automatically saved to built-in EEPROM A section of the Data Memory Area can be saved to the built-in EEPROM.
 Battery backup With CP1W-BAT01  Battery (Sold separately)

Battery cannot be mounted.

CP1W-BAT01 can be used. Maximum battery service life: 5 years Backup TimeGuaranteed value (ambient temperature: Battery (Sold separately)Effective value (ambient temperature: 25oC): 43,000 hours (approx. 5 years)
Input Bits 1,600 bits (100 words): CIO 0.00 to CIO 99.15 (CIO 00 to CIO 99)
Output Bits 1,600 bits (100 words): CIO 100.00 to CIO 199.15 (CIO 100 to CIO 199)
Serial PLC Link Words 1,440 bits (90 words): CIO 200.00 to CIO 289.15 (words CIO 200 to CIO 289)
Work Area (W) 1,600 bits (100 words): W0.00 to W99.15 (W0 to W99)
Holding Area (H) 800 bits (50 words): H0.00 to H49.15 (H0 to H49)Bits in this area maintain their ON/OFF status when operating mode is changed.
Auxiliary Area (A) Read-only: 7,168 bits (448 words) A0 to A447Read/write: 4,896 bits (306 words) in words A448 to A753
Temporary Relay Area (TR) (TR Area) 16 bits: TR0 to TR15
Timer Area (T) 256 timer numbers (T0 to T255 (separate from counters))
Counter Area (C) 256 counter numbers (C0 to C255 (separate from timers))
