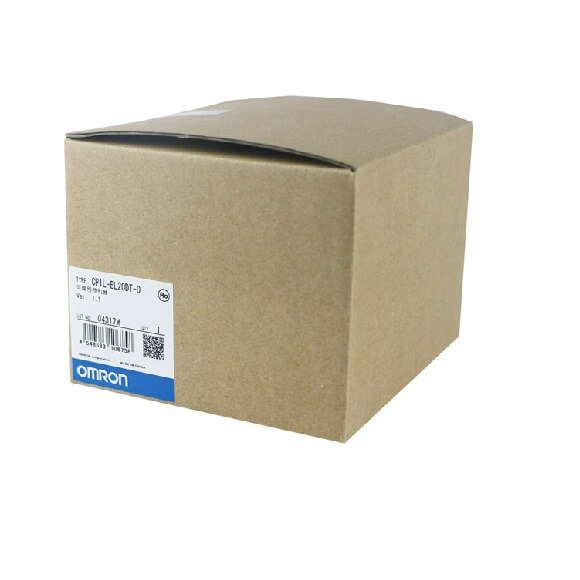

Omron PLC CP series CP1L CPU Unit CP1L-EL20DR-D/EL20DT-D/EL20DT1-D

Series#: Omron PLC

Product Details

  • Omron PLC CP series CP1L CPU Unit CP1L-EL20DR-D/EL20DT-D/EL20DT1-D
  • CP1L-EM” and “CP1L-EL” have complete with a Ethernet
  • New CP1L CPU Units now available.
  • Omron PLC Controller Module CP1L-Series
  • We are First Class Omron plc dealer and omron plc distributor in China.
  • We can Supply Omron automation parts,such as Omron PLC,Omron Servo Motor,Omron HMI,Omron VFD and Omron Relay and Omron Sensor and ect.
  • 100% Original and new,In stock by Omron Automation
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Type CP1L-EM40 (40 points) CP1L-EM30 (30 points) CP1L-EL20 (20 points)
Item Models CP1L-EM40D@-@ CP1L-EM30D@-@ CP1L-EL20D@-@
Control method Stored program method
I/O control method Cyclic scan with immediate refreshing
Program language Ladder diagram
Function blocks Maximum number of function block definitions: 128 Maximum number of instances: 256 Languages usable in function block definitions: Ladder diagrams, structured text (ST)
Instruction length 1 to 7 steps per instruction
Instructions Approx. 500 (function codes: 3 digits)
Instruction execution time Basic instructions: 0.55 ms min. Special instructions: 4.1 ms min.
Common processing time 0.4ms
Maximum subroutine number 256
Maximum jump number 256
  Work bits 4,800 bits (300 words): CIO 1200.00 to CIO 1499.15 (words CIO 1200 to CIO 1499)6,400 bits (400 words): CIO 1500.00 to CIO 1899.15 (words CIO 1500 to CIO 1899)15,360 bits (960 words): CIO 2000.00 to CIO 2959.15 (words CIO 2000 to CIO 2959)

9,600 bits (600 words): CIO 3200.00 to CIO 3799.15 (words CIO 3200 to CIO 3799)

37,504 bits (2,344 words): CIO 3800.00 to CIO 6143.15 (words CIO 3800 to CIO 6143)

TR Area 16 bits: TR0 to TR15
Holding Area 8,192 bits (512 words): H0.00 to H511.15 (H0 to H511)
AR Area Read-only (Write-prohibited): 7168 bits (448 words): A0.00 to A447.15 (A0 to A447) Read/Write: 8192 bits (512 words): A448.00 to A959.15 (A448 to A959)
Timers 4,096 timer numbers: T0 to T4095
Counters 4,096 counter numbers: C0 to C4095
DM Area 32 Kwords: D0 to D32767 10 Kwords: D0 to D9999, D32000 to D32767
Data Register Area 16 registers (16 bits): DR0 to DR15
Index Register Area 16 registers (32 bits): IR0 to IR15
Task Flag Area 32 flags (32 bits): TK0000 to TK0031
Trace Memory 4,000 words (500 samples for the trace data maximum of 31 bits and 6 words.)
Memory Cassette A special Memory Cassette (CP1W-ME05M) can be mounted.Note: Can be used for program backups and auto-booting.
Clock function Supported. Accuracy (monthly deviation): -4.5 min to -0.5 min (ambient temperature: 55°C),-2.0 min to +2.0 min (ambient temperature: 25°C), -2.5 min to +1.5 min (ambient temperature: 0°C)
 Communications functions Built-in Ethernet Port (Connecting Support Software, Message Communications, Socket Service)
A maximum of two Serial Communications Option Boards can be mounted. A maximum of one Serial Communications Option Board can be mounted.
 Memory backup Flash memory: User programs, parameters (such as the PLC Setup), comment data, and the entire DM Area can be saved to flash memory as initial values.Battery backup: The Holding Area, DM Area, and counter values (flags, PV) are backed up by a battery.
Battery service life Service life expectancy is 5 years at 25°C, less at higher temperatures. (From 0.75 to 5 years depending onmodel, power supply rate, and ambient temperature.)
Built-in input terminals 40 (24 inputs, 16 outputs) 30 (18 inputs, 12 outputs) 20 (12 inputs, 8 outputs)
Number of connectable Expansion Units and Expansion I/O Units CP-series Expansion Unit and Expansion I/O Units: 3 max. CP-series Expansion Units and Expansion I/O Units: 1 max.
Max. number of I/O points 160 (40 built in + 40 per Expansion (I/O) Unit x 3 Units) 150 (30 built in + 40 per Expansion (I/O) Unit x 3 Units) 60 (20 built in + 40 per Expansion (I/O) Unit x 1 Unit)
Interrupt inputs 6 inputs (Response time: 0.3 ms)
Interrupt inputs counter mode 6 inputs (Response frequency: 5 kHz max. for all interrupt inputs), 16 bits Up or down counters
Quick-response inputs 6 points (Min. input pulse width: 50 ms max.)
Scheduled interrupts 1
  High-speed counters 4 inputs/2 axes (24 VDC) Differential phases (4x), 50 kHzSingle-phase (pulse plus direction, up/down, increment), 100 kHz Value range: 32 bits, Linear mode or ring modeInterrupts: Target value comparison or range comparison
