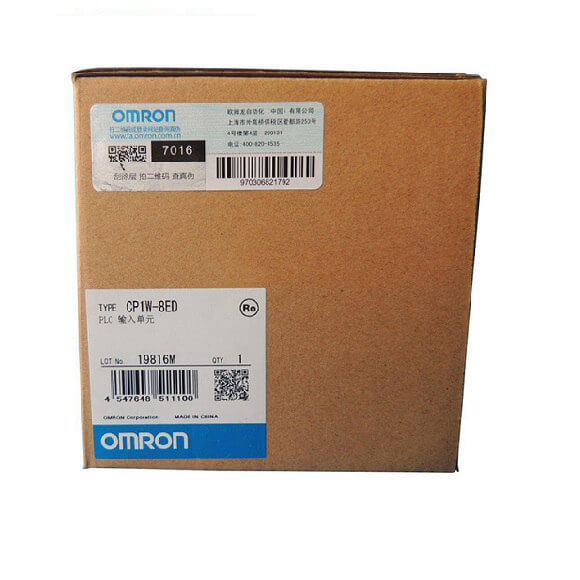

| Input Unit | 8 | — | 24 VDC Input | CP1W-8ED | |
| Output Units |
— |
8 |
Relay | CP1W-8ER | |
| Transistor (sinking) | CP1W-8ET | ||||
| Transistor (sourcing) | CP1W-8ET1 | ||||
|
— |
16 |
Relay | CP1W-16ER | ||
| Transistor (sinking) | CP1W-16ET | ||||
| Transistor (sourcing) | CP1W-16ET1 | ||||
|
— |
32 |
Relay | CP1W-32ER | ||
| Transistor (sinking) | CP1W-32ET | ||||
| Transistor (sourcing) | CP1W-32ET1 | ||||
| I/O Units
|
12 |
8 |
Relay | CP1W-20EDR1 | |
| Transistor (sinking) | CP1W-20EDT | ||||
| Transistor (sourcing) | CP1W-20EDT1 | ||||
|
24 |
16 |
Relay | CP1W-40EDR | ||

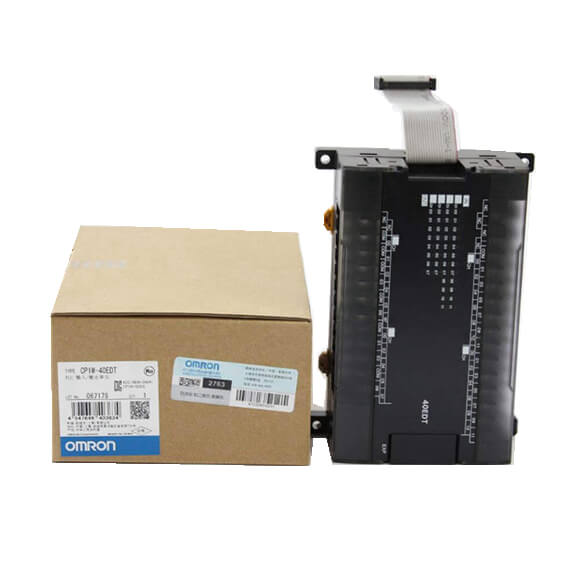

| Transistor (sinking) | CP1W-40EDT | ||||
| Transistor (sourcing) | CP1W-40EDT1 | ||||
| Analog Input Unit
|
4CH |
— |
Input range: 0 to 5 V, 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA. |

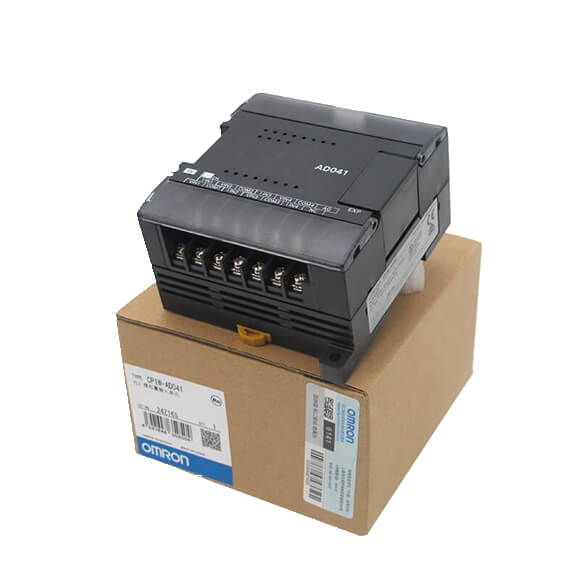

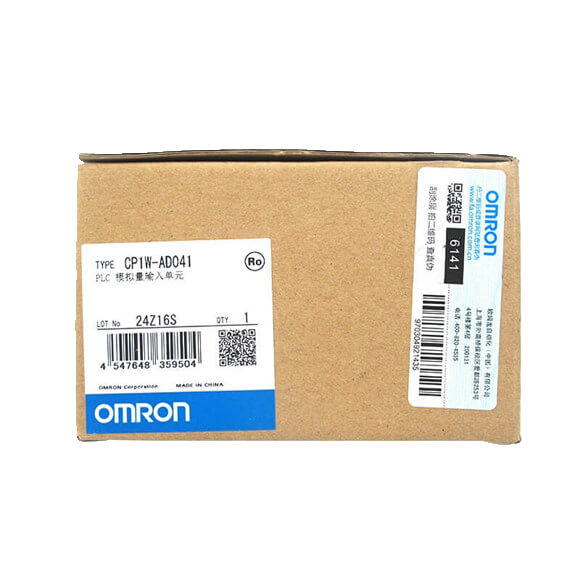

Resolution: 1/6000 | CP1W-AD041 |

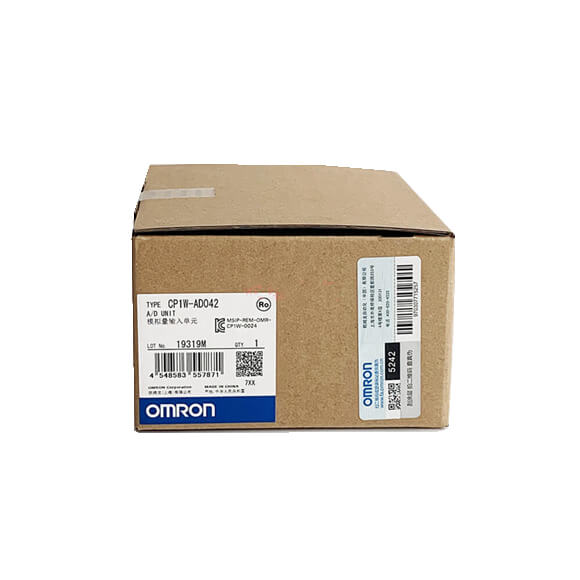

| Resolution: 1/12000 | CP1W-AD042 | ||||
| Analog Output Unit
|
— | 2CH |
Output range: 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA. |
Resolution: 1/6000 | CP1W-DA021 |
|
— |
4CH |
Resolution: 1/6000 | CP1W-DA041 | ||
| Resolution: 1/12000 | CP1W-DA042 | ||||
| Analog I/O Unit
|
4CH | 4CH | Input range:
0 to 5 V, 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA. Output range: 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA. |
Resolution: 1/12000 | CP1W-MAD44 |
| 4CH | 2CH | Resolution: 1/12000 | CP1W-MAD42 | ||
| 2CH | 1CH | Resolution: 1/6000 | CP1W-MAD11 | ||
|
Temperature Sensor Unit
|
2CH | — | Sensor type: Thermocouple (J or K) | CP1W-TS001 | |
| 4CH | — | Sensor type: Thermocouple (J or K) | CP1W-TS002 | ||
| 2CH | — | Sensor type: Platinum resistance thermometer (Pt100 or JPt100) | CP1W-TS101 | ||
| 4CH | — | Sensor type: Platinum resistance thermometer (Pt100 or JPt100) | CP1W-TS102 | ||
|
4CH |
— |
Sensor type: Thermocouple (J or K)
2 channels can be used as analog input. Input range: 1 to 5 V, 0 to 10 V, 4-20 mA |
Resolution: 1/12000 |
CP1W-TS003 |
|
