Input Unit | 8 | — | 24 VDC Input | CP1W-8ED | |
Output Units
|
— |
8 |
Relay | CP1W-8ER | |
Transistor (sinking) | CP1W-8ET | ||||
Transistor (sourcing) | CP1W-8ET1 | ||||
— | 16 | Relay | CP1W-16ER | ||
Transistor (sinking) | CP1W-16ET | ||||

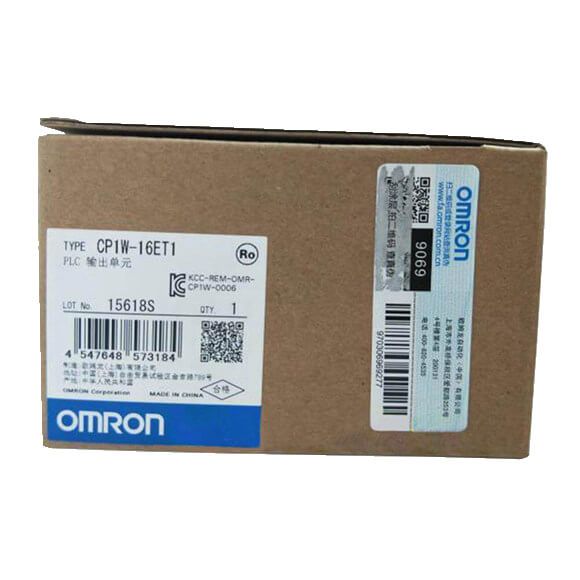

Transistor (sourcing) | CP1W-16ET1 | ||||
— | 32 | Relay | CP1W-32ER | ||
Transistor (sinking) | CP1W-32ET | ||||
Transistor (sourcing) | CP1W-32ET1 | ||||
I/O Units
|
12 |
8 |
Relay | CP1W-20EDR1 | |
Transistor (sinking) | CP1W-20EDT | ||||
Transistor (sourcing) | CP1W-20EDT1 | ||||
24 | 16 | Relay | CP1W-40EDR | ||
Transistor (sinking) | CP1W-40EDT | ||||
Transistor (sourcing) | CP1W-40EDT1 | ||||
Analog Input Unit
|
4CH |
— |
Input range:
0 to 5 V, 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA. |
Resolution: 1/6000 | CP1W-AD041 |
Resolution: 1/12000 | CP1W-AD042 | ||||
Analog Output Unit
|
— | 2CH | Output range:
1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA. |
Resolution: 1/6000 | CP1W-DA021 |
— | 4CH | Resolution: 1/6000 | CP1W-DA041 | ||
Resolution: 1/12000 | CP1W-DA042 | ||||
Analog I/O Unit
|
4CH | 4CH | Input range:0 to 5 V, 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4
to 20 mA. Output range: 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA. |
Resolution: 1/12000 | CP1W-MAD44 |
4CH | 2CH | Resolution: 1/12000 | CP1W-MAD42 | ||
2CH | 1CH | Resolution: 1/6000 | CP1W-MAD11 | ||
Temperature Sensor Unit
|
2CH | — | Sensor type: Thermocouple (J or K) | CP1W-TS001 | |
4CH | — | Sensor type: Thermocouple (J or K) | CP1W-TS002 | ||
2CH | — | Sensor type: Platinum resistance thermometer (Pt100 or JPt100) | CP1W-TS101 | ||
4CH | — | Sensor type: Platinum resistance thermometer (Pt100 or JPt100) | CP1W-TS102 | ||
4CH | — | Sensor type: Thermocouple (J or K)2 channels can be used as analog input. Input range: 1 to 5 V, 0 to 10 V, 4-20 mA | Resolution: 1/12000 | CP1W-TS003 |
