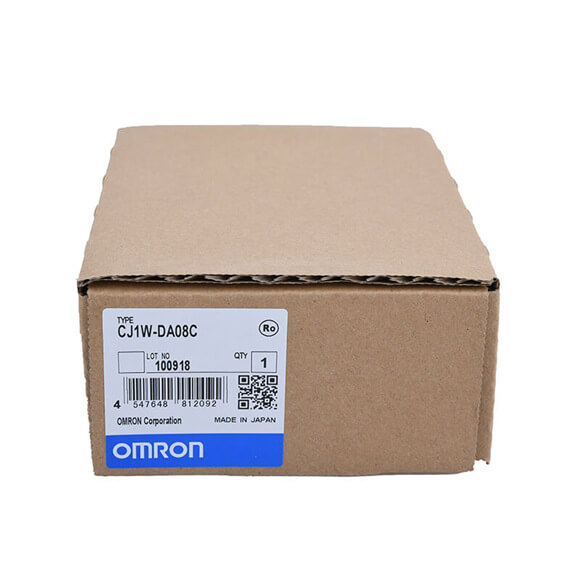

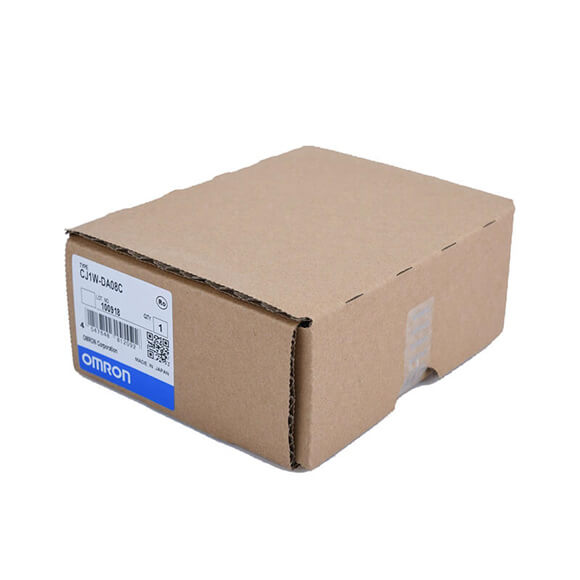

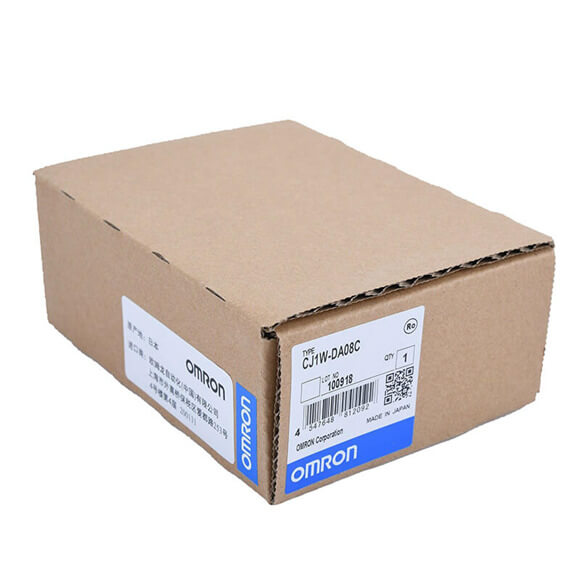

Omron PLC CP1H CPU Analog Output Units CJ1W-DA08C CJ1W-DA041 CJ1W-DA021

Series#: Omron PLC

Product Details

  • Omron PLC CP1H CPU Analog Output Units CJ1W-DA08C CJ1W-DA041 CJ1W-DA021
  • Omron PLC Controller Module CP-series
  • We are First Class Omron plc dealer and omron plc distributor in China.
  • We can Supply Omron automation parts,such as Omron PLC,Omron Servo Motor,Omron HMI,Omron VFD and Omron Relay and Omron Sensor and ect.
  • 100% Original and new,In stock by Omron Automation
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Name Specifications Model
CJ Unit Adapter Adapter for connecting CJ-series Special I/O Units and CPU Bus Units (includes CJ-series End Cover and 2 End Plates) CP1W-EXT01






Analog Input Units

4 inputs (1 to 5 V (1/10,000), 0 to 10 V (1/20,000), -5 to 5 V (1/20,000),-10 to 10 V (1/40,000), and 4 to 20 mA (1/10,000))

Conversion Period: 20 µs/1 point, 25 µs/2 points, 30 µs/3 points, 35 µs/4 points

 CJ1W-AD042
8 inputs (1 to 5 V, 0 to 5 V, 0 to 10 V, –10 to 10 V, 4 to 20 mA) Resolution: 1/8,000, Conversion speed: 250 ms/input max. (Can be set to 1/4,000 resolution and 1 ms/input.)  CJ1W-AD081-V1
4 inputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA) Resolution: 1/8,000, Conversion speed: 250 ms/input max. (Can be set to 1/4,000 resolution and 1 ms/input.)  CJ1W-AD041-V1








Analog Output Units

4 outputs (1 to 5 V (1/10,000), 0 to 10 V (1/20,000), and -10 to 10 V (1/40,000) Conversion Period: 20 µs/1 point, 25 µs/2 points, 30 µs/3 points, 35 µs/4 points CJ1W-DA042V
8 outputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V) Resolution: 1/4,000; Conversion speed: 1 ms/output max. (Can be set to 1/8000, 250 µs/output.)  CJ1W-DA08V
8 outputs (4 to 20 mA)Resolution: 1/4,000; Conversion speed: 1 ms/output max. (Can be set to 1/8,000, 250 µs/ output.)  CJ1W-DA08C
4 outputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA) Resolution: 1/4,000, Conversion speed: 1ms/point max. CJ1W-DA041
2 outputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA) Resolution: 1/4,000, Conversion speed: 1ms/point max. CJ1W-DA021
 Analog I/O Unit 4 inputs, 2 outputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA) Resolution: 1/4000; Conversion speed: 1 ms/point max.(Can be set to 1/8,000, 500 µs/point.)  CJ1W-MAD42












Process Input Units

4 fully universal inputs: Pt100 (3-wire), JPt100 (3-wire), Pt1000 (3-wire), Pt100 (4 wire), K, J, T, E, L, U, N, R, S, B, WRe5-26, PLII, 4 to 20 mA,0 to 20 mA, 1 to 5 V, 0 to 1.25 V, 0 to 5 V, 0 to 10 V, ±100-mV selectable range,

-1.25 to 1.25 V, -5 to 5 V, -10 to 10 V, ±10-V selectable range Potentiometer resolution/conversion speed: 1/256,000 (conversion cycle:

60 ms/4 points), 1/64,000 (conversion cycle: 10 ms/4 points), 1/16,000 (conversion cycle: 5 ms/4 points)



CJ1W-PH41U *

4 fully universal inputs: Pt100, JPt100, Pt1000, K, J, T, L, R, S, B, 4 to 20 mA, 0 to 20 mA, 1 to 5 V, 0 to 5 V, 0 to 10 VConversion speed: 250 ms/4 points  CJ1W-AD04U
4 inputs, B, J, K, L, R, S, T; Conversion speed: 250 ms/4 inputs CJ1W-PTS51
4 inputs, Pt100 Ω (JIS, IEC), JPt100 Ω, Conversion speed: 250 ms/4 inputs CJ1W-PTS52
2 inputs, B, E, J, K, L, N, R, S, T, U, W, Re5-26, PL ±100 mV,Resolution: 1/64,000; Conversion speed: 10 ms/2 inputs CJ1W-PTS15
2 inputs, 0 to 1.25 V, -1.25 to 1.25 V, 0 to 5 V, 1 to 5 V, -5 to 5 V, 0 to 10 V,-10 to 10 V, ±10-V selectable range, 0 to 20 mA, 4 to 20 mA CJ1W-PDC15






Temperature Control Units

4 loops, thermocouple input, NPN output CJ1W-TC001
4 loops, thermocouple input, PNP output CJ1W-TC002
2 loops, thermocouple input, NPN output, heater burnout detection function CJ1W-TC003
2 loops, thermocouple input, PNP output, heater burnout detection function CJ1W-TC004
4 loops, platinum resistance thermometer input, NPN output CJ1W-TC101
4 loops, platinum resistance thermometer input, PNP output CJ1W-TC102
2 loops, platinum resistance thermometer input, NPN output, heater burnout detection function CJ1W-TC103
2 loops, platinum resistance thermometer input, PNP output, heater burnout detection function CJ1W-TC104
High-speed Counter Unit 2 inputs, max. input frequency: 500 kpps CJ1W-CT021




Position Control Units

Pulse train, open collector output, 1 axis CJ1W-NC113
Pulse train, open collector output, 2 axes CJ1W-NC213
Pulse train, open collector output, 4 axes CJ1W-NC413
Pulse train, line driver output, 1 axis CJ1W-NC133
Pulse train, line driver output, 2 axes CJ1W-NC233
Pulse train, line driver output, 4 axes CJ1W-NC433
Space Unit CJ1W-SP001


ID Sensor Units

For V680 Series, 1 R/W Head CJ1W-V680C11
For V680 Series, 2 R/W Heads CJ1W-V680C12
For V600 Series, 1 R/W Head CJ1W-V600C11
For V600 Series, 2 R/W Heads CJ1W-V600C12
CompoNet Master Unit Word slaves: 2,048 points, Bit slaves: 512 points CJ1W-CRM21
CompoBus/S Master Unit CompoBus/S remote I/O, 256 points max. CJ1W-SRM21
