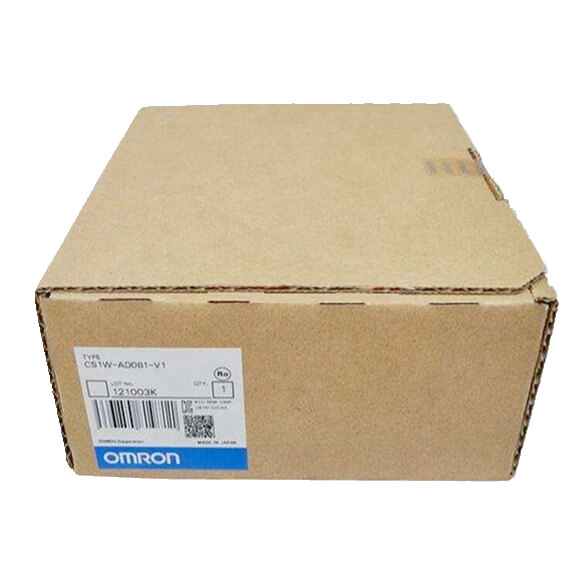

Omron PLC CS Series Analog Input Units CS1W-AD041-V1/AD081-V1/AD161

Series#: Omron PLC

Product Details

  • Omron PLC CS Series Analog Input Units CS1W-AD041-V1/AD081-V1/AD161
  • Omron PLC Controller Module CP-series
  • We are First Class Omron plc dealer and omron plc distributor in China.
  • We can Supply Omron automation parts,such as Omron PLC,Omron Servo Motor,Omron HMI,Omron VFD and Omron Relay and Omron Sensor and ect.
  • 100% Original and new,In stock by Omron Automation
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Item CS1W-AD041-V1 CS1W-AD081-V1 CS1W-AD161
Applicable PLC model CS series
Unit type CS1 Special I/O Unit
Isolation *1 Between I/O and PLC signals: Photocoupler (No isolation between individual I/O signals.)
External terminals 21-point detachable terminal block (M3 screws) Two 34-pin MIL connectors
Affect on CPU Unit cycle time 0.2 ms
Power consumption 120 mA max. at 5 VDC, 90 mA max. at 26 VDC 150 mA max. at 5 VDC,

55 mA max. at 26 VDC

Dimensions (mm) *2 35 ´ 130 ´ 126 (W ´ H ´ D) 35 ´ 130 ´ 119 (W ´ H ´ D)
Weight 450 g max.
General specifications Conforms to general specifications for SYSMAC CS Series.
Mounting position CS-series CPU Rack or CS-series Expansion Rack

(Cannot be mounted to a C200H Expansion I/O Rack or a SYSMAC BUS Slave Rack.)

Maximum number of Units Depends on the power supply Unit. *3




Data exchange with CPU Units *4





Special I/O Unit Area in CIO Area (CIO 2000 to CIO 2959): 10 words per Unit Special I/O Unit Area in DM Area (D20000 to D29599): 100 words per Unit

Special I/O Unit Area in CIO Area (CIO 2000 to CIO 2959): 20 words per Unit

Special I/O Unit Area in DM Area (D20000 to D29599): 200 words per Unit

Number of analog inputs 4 8 16




Input signal range *5

1 to 5 V

0 to 5 V

0 to 10 V

-10 to 10 V 4 to 20 mA

*6

Maximum rated input (for 1 point) *7 Voltage Input: ±15 V Current Input: ±30 mA
Input impedance Voltage Input: 1 MΩ min.

Current Input: 250 Ω (rated value)

Resolution 4,000/8,000 *8
Converted output data 16-bit binary data
23±2°C Voltage Input: ±0.2% of full scale Current Input: ±0.4% of full scale Voltage Input: ±0.2% of full scale Current Input: ±0.2% of full scale
0°C to 55°C Voltage Input: ±0.4% of full scale Current Input: ±0.6% of full scale Voltage Input: ±0.4% of full scale Current Input: ±0.4% of full scale
A/D conversion time *10 1.0 ms or 250 ms per point max. *8
Mean value processing Stores the last “n” data conversions in the buffer, and stores the mean value of the conversion values. Buffer number: n = 2, 4, 8, 16, 32, 64
Peak value holding Stores the maximum conversion value while the Peak Value Hold Bit is ON.
Input disconnection detection Detects the disconnection and turns ON the Disconnection Detection Flag. *11




Scaling function





None





None

Enabled only for conversion time of 1 ms and resolution of 4,000. Setting any values within a range of ±32,000

as the upper and lower limits allows the A/D conversion result to be output with these values as full scale.
