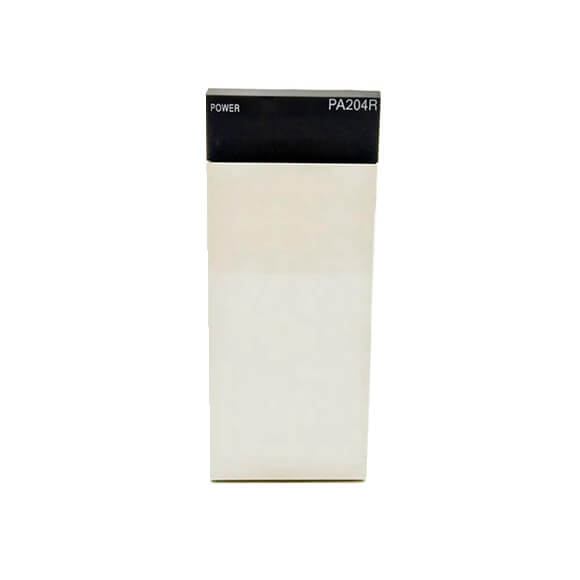

model | C200HW-PA204 | C200HW-PA204C | C200HW-PA204R | C200HW-PA204S | C200HW-PA209R | C200HW-PD024 | ||||
Power supply voltage | 100 to 240 VAC (wide range), 50/60 Hz *1 | 100 to 120 VAC/200 to 240 V, 50/60 Hz | 24 VDC | |||||||
Operating voltage range | 85 to 264 VAC | 85 to 132 VAC/170 to 264 V | 19.2 to 28.8 VDC | |||||||
Power consumption | 120 VA max. | 100 VA max. | 120 VA max. | 180 VA max. | 50 W max. | 60 W max. | ||||
Inrush current |
100 to 120 VAC input 15 A/8 ms max. (cold start at room temperature) 200 to 240 VAC input 30 A/8 ms max. (cold start at room temperature) |
100 to 120 VAC input 20 A/8 ms max. (cold start at room temperature) 200 to240 VAC input 30 A/8 ms max. (cold start at room temperature) | 100 to 120 VAC:
30 A max. 200 to 240 VAC: 40 A max. |
30 A max. |
||||||
Insulation resistance |
20 MΩ min. (at 500 VDC) between AC external and GR terminals *2 | • 20 MΩ min. (at 500 VDC) between all AC external terminals and GR terminal and between all alarm output terminals.• 20 MΩ min. (at 250 VDC) between all alarm output terminals and GR terminal. |
20 MΩ min. (at 500 VDC) between all AC external and GR terminals *2 |
20 MΩ min. (at 500 VDC) between all DC external and GR terminals *2 |
||||||
Dielectric strength |
2,300 VAC 50/60 Hz for 1 min between AC external and GR terminals *2 Leakage current: 10 mA max. |
• 2,300 VAC, 50/60 Hz for 1minute between all AC external terminals and GR terminal and between all alarm output terminals.
Leakage current: 10 mA max. • 1,000 VAC, 50/60 Hz for 1 minute between all alarm output terminals and GR terminal. Leakage current: 10 mA max. |
2,300 VAC 50/60 Hz for 1 min between all AC external and GR terminals *2 Leakage current: 10 mA max. |
1,000 VAC 50/60 Hz for 1 min between all DC external and GR terminals *2 Leakage current: 10 mA max. |
||||||
Noise immunity | 2 kV on power supply line (conforming to IEC61000-4-4) | |||||||||
Vibration resistance | Conforms to JIS 0040, 10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, acceleration: 9.8 m/s2 in X, Y, and Z directions for 80 minutes (Time coefficient: 8 minutes x coefficient factor 10 = total time 80 min.)(CPU Unit mounted to a DIN track: 2 to 55 Hz, 2.9 m/s2 in X, Y, and Z directions for 20 minutes) | |||||||||
Shock resistance | Conforms to JIS 0041, 147 m/s2 3 times each in X, Y, and Z directions | |||||||||
Ambient operating temperature | 0 to 55°C | |||||||||
Ambient operating humidity | 10% to 90% (with no condensation) | 10% to 90%(with no condensation) *4 | 10% to 90% (with no condensation) | |||||||
Ambient operating atmosphere | No corrosive gases | |||||||||
Ambient storage temperature | -20 to 75°C (excluding battery) | |||||||||
Grounding | Less than 100 Ω | |||||||||
Enclosure | Mounted in a panel. | |||||||||
Weight | Each Rack: 6 kg max. | |||||||||
CPU Rack dimensions (mm) | 2 slots: 198.5 x 157 x 123 (W x H x D) *33 slots: 260 x 130 x 123 (W x H x D) *3
5 slots: 330 x 130 x 123 (W x H x D) *3 8 slots: 435 x 130 x 123 (W x H x D) *3 10 slots: 505 x 130 x 123 (W x H x D) *3 |
|||||||||
Standards | Conforms to UL, CSA, cULus, NK, Lloyds, and EC Directives. |
