Name | Specifications | Model |
CJ Unit Adapter | Adapter for connecting CJ-series Special I/O Units and CPU Bus Units (includes CJ-series End Cover and 2 End Plates) | CP1W-EXT01 |
Analog Input Units |
4 inputs (1 to 5 V (1/10,000), 0 to 10 V (1/20,000), -5 to 5 V (1/20,000),-10 to 10 V (1/40,000), and 4 to 20 mA (1/10,000))
Conversion Period: 20 µs/1 point, 25 µs/2 points, 30 µs/3 points, 35 µs/4 points |
CJ1W-AD042 |
8 inputs (1 to 5 V, 0 to 5 V, 0 to 10 V, –10 to 10 V, 4 to 20 mA) Resolution: 1/8,000, Conversion speed: 250 ms/input max. (Can be set to 1/4,000 resolution and 1 ms/input.) | CJ1W-AD081-V1 | |
4 inputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA) Resolution: 1/8,000, Conversion speed: 250 ms/input max. (Can be set to 1/4,000 resolution and 1 ms/input.) | CJ1W-AD041-V1 | |
Analog Output Units |
4 outputs (1 to 5 V (1/10,000), 0 to 10 V (1/20,000), and -10 to 10 V (1/40,000) Conversion Period: 20 µs/1 point, 25 µs/2 points, 30 µs/3 points, 35 µs/4 points | CJ1W-DA042V |
8 outputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V) Resolution: 1/4,000; Conversion speed: 1 ms/output max. (Can be set to 1/8000, 250 µs/output.) | CJ1W-DA08V | |
8 outputs (4 to 20 mA)Resolution: 1/4,000; Conversion speed: 1 ms/output max. (Can be set to 1/8,000, 250 µs/ output.) | CJ1W-DA08C | |
4 outputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA) Resolution: 1/4,000, Conversion speed: 1ms/point max. | CJ1W-DA041 | |
2 outputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA) Resolution: 1/4,000, Conversion speed: 1ms/point max. | CJ1W-DA021 | |
Analog I/O Unit | 4 inputs, 2 outputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA) Resolution: 1/4000; Conversion speed: 1 ms/point max.(Can be set to 1/8,000, 500 µs/point.) | CJ1W-MAD42 |
Process Input Units |
4 fully universal inputs: Pt100 (3-wire), JPt100 (3-wire), Pt1000 (3-wire), Pt100 (4 wire), K, J, T, E, L, U, N, R, S, B, WRe5-26, PLII, 4 to 20 mA,0 to 20 mA, 1 to 5 V, 0 to 1.25 V, 0 to 5 V, 0 to 10 V, ±100-mV selectable range,
-1.25 to 1.25 V, -5 to 5 V, -10 to 10 V, ±10-V selectable range Potentiometer resolution/conversion speed: 1/256,000 (conversion cycle: 60 ms/4 points), 1/64,000 (conversion cycle: 10 ms/4 points), 1/16,000 (conversion cycle: 5 ms/4 points) |
CJ1W-PH41U * |
4 fully universal inputs: Pt100, JPt100, Pt1000, K, J, T, L, R, S, B, 4 to 20 mA, 0 to 20 mA, 1 to 5 V, 0 to 5 V, 0 to 10 VConversion speed: 250 ms/4 points | CJ1W-AD04U | |
4 inputs, B, J, K, L, R, S, T; Conversion speed: 250 ms/4 inputs | CJ1W-PTS51 | |
4 inputs, Pt100 Ω (JIS, IEC), JPt100 Ω, Conversion speed: 250 ms/4 inputs | CJ1W-PTS52 | |
2 inputs, B, E, J, K, L, N, R, S, T, U, W, Re5-26, PL ±100 mV,Resolution: 1/64,000; Conversion speed: 10 ms/2 inputs | CJ1W-PTS15 | |
2 inputs, 0 to 1.25 V, -1.25 to 1.25 V, 0 to 5 V, 1 to 5 V, -5 to 5 V, 0 to 10 V,-10 to 10 V, ±10-V selectable range, 0 to 20 mA, 4 to 20 mA | CJ1W-PDC15 | |
Temperature Control Units |
4 loops, thermocouple input, NPN output | CJ1W-TC001 |
4 loops, thermocouple input, PNP output | CJ1W-TC002 | |
2 loops, thermocouple input, NPN output, heater burnout detection function | CJ1W-TC003 | |
2 loops, thermocouple input, PNP output, heater burnout detection function | CJ1W-TC004 | |
4 loops, platinum resistance thermometer input, NPN output | CJ1W-TC101 | |
4 loops, platinum resistance thermometer input, PNP output | CJ1W-TC102 | |
2 loops, platinum resistance thermometer input, NPN output, heater burnout detection function | CJ1W-TC103 | |
2 loops, platinum resistance thermometer input, PNP output, heater burnout detection function | CJ1W-TC104 | |
High-speed Counter Unit | 2 inputs, max. input frequency: 500 kpps | CJ1W-CT021 |
Position Control Units |
Pulse train, open collector output, 1 axis | CJ1W-NC113 |
Pulse train, open collector output, 2 axes | CJ1W-NC213 | |

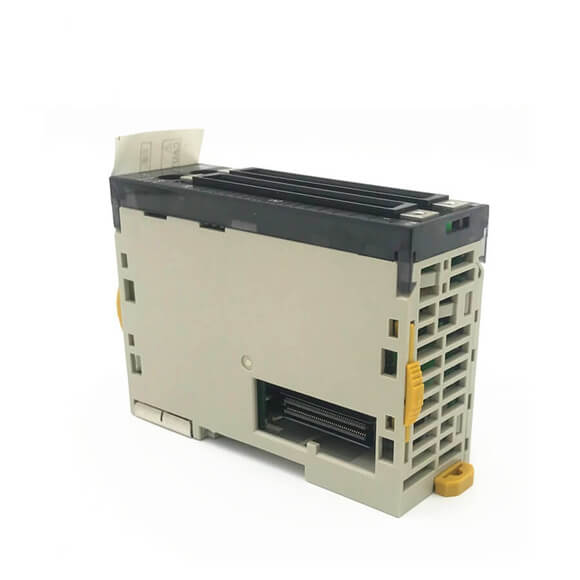

Pulse train, open collector output, 4 axes | CJ1W-NC413 | |
Pulse train, line driver output, 1 axis | CJ1W-NC133 | |

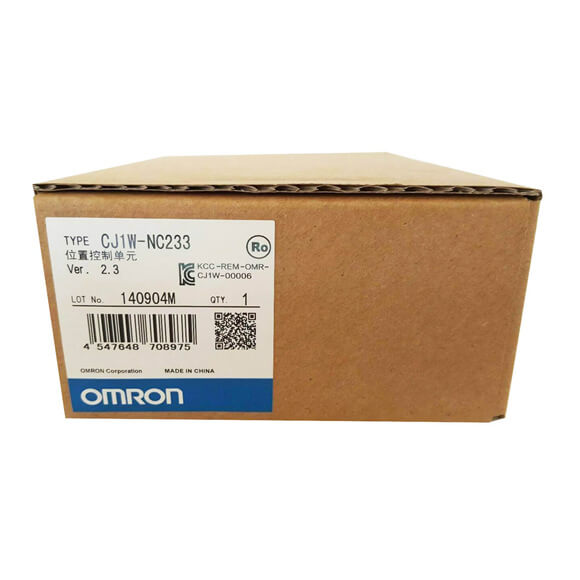

Pulse train, line driver output, 2 axes | CJ1W-NC233 | |
Pulse train, line driver output, 4 axes | CJ1W-NC433 | |
Space Unit | — | CJ1W-SP001 |
ID Sensor Units |
For V680 Series, 1 R/W Head | CJ1W-V680C11 |
For V680 Series, 2 R/W Heads | CJ1W-V680C12 | |
For V600 Series, 1 R/W Head | CJ1W-V600C11 | |
For V600 Series, 2 R/W Heads | CJ1W-V600C12 | |
CompoNet Master Unit | Word slaves: 2,048 points, Bit slaves: 512 points | CJ1W-CRM21 |
CompoBus/S Master Unit | CompoBus/S remote I/O, 256 points max. | CJ1W-SRM21 |
