Contact resistance (see note 2) | 100 mΩ max. |
Operate time (see note 3) | 50 ms max. |
Release time (see note 3) | 50 ms max. |
Max. operating frequency | Mechanical: 1,800 operations/hr
Electrical: 1,800 operations/hr |
Insulation resistance (see note 4) | 1,000 MΩ min. (at 500 VDC) |
Dielectric strength | 4,000 VAC, 50/60 Hz for 1 min between coil and contacts
4,000 VAC, 50/60 Hz for 1 min between contacts of different polarity 2,000 VAC, 50/60 Hz for 1 min between contacts of same polarity |
Impulse withstand voltage | 10,000 V between coil and contact (with 1.2 x 50 ms impulse wave) |
Vibration resistance | Destruction: 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude) Malfunction: NO:10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
NC:10 to 26 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude) |
Shock resistance | Destruction: 1,000 m/s2 Malfunction: NO:100 m/s2
NC:20 m/s2 |
Endurance | Mechanical: 1,000,000 operations min. (at 1,800 operations/hr)
Electrical: 100,000 operations min. (at 1,800 operations/hr) (see note 5) |
Error rate (see note 6) | 100 mA at 24 VDC (bifurcated contact: 24 VDC 10 mA) |
Ambient temperature | Operating: –25°C to 60°C (with no icing or condensation) |
Ambient humidity | Operating: 5% to 85% |

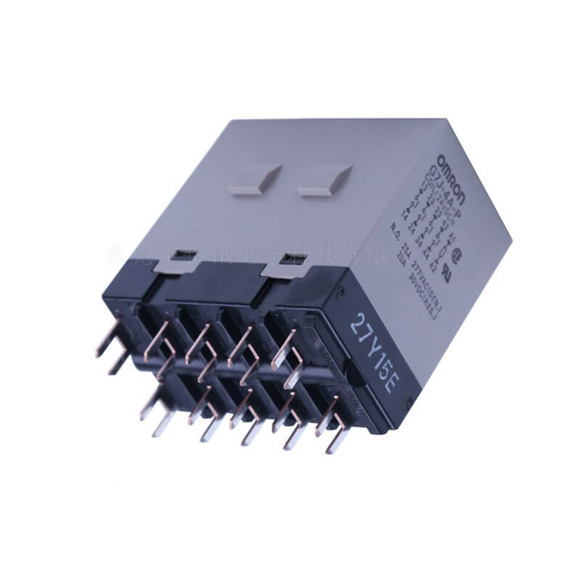

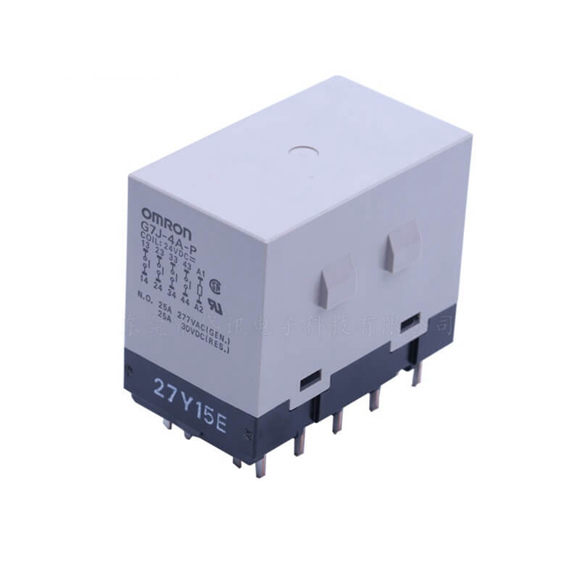

Weight | PCB terminal: approx. 140 g
Screw terminal: approx. 165 g Quick-connect terminal: approx. 140 g |
