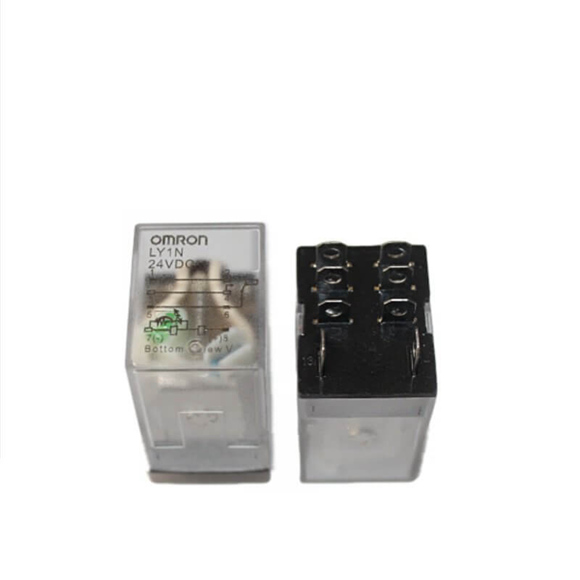

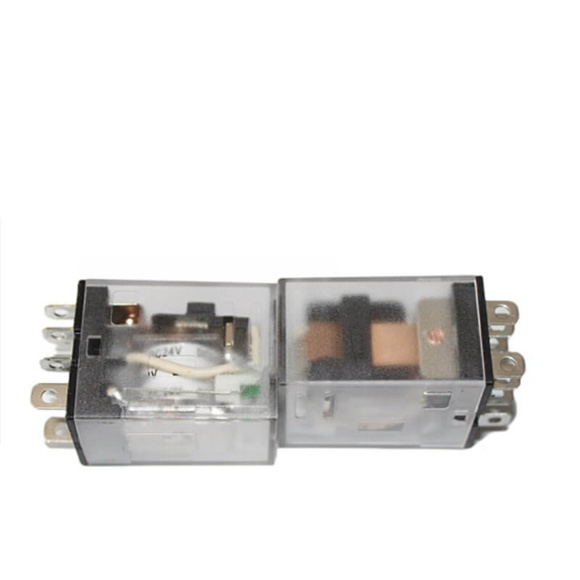

Type Item | Standard models, models with built-in operation indicators, models with built-in CR circuits, and models with built-in diodes | |
Contact resistance*1 | 50 mΩ max. | |
Operating time*2 | 25 ms max. | |
Release time*2 | 25 ms max. | |
Mechanical | 18,000 operations/h | |
Rated load | 1,800 operations/h | |
Insulation resistance*3 | 100 MΩ min. | |
Between coil and contacts | 2,000 VAC at 50/60 Hz for 1 min. | |
Between contacts of
the same polarity |
1,000 VAC at 50/60 Hz for 1 min. | |
Destruction | 10 to 55 to 10 Hz, 0.5-mm single amplitude (1.0-mm double amplitude) | |
Malfunction | 10 to 55 to 10 Hz, 0.5-mm single amplitude (1.0-mm double amplitude) | |
Destruction | 1,000 m/s2 | |
Malfunction | 200 m/s2 | |
Mechanical | AC: 50,000,000 operations min. (switching frequency: 18,000
DC: 100,000,000 operations min. operations/h) |
|
Electrical*4 |
1- , 3-, 4-pole: 200,000 operations min.
2- pole: 500,000 operations min. (rated load, operating frequency: 1,800 operations/h) |
2-pole: 500,000 operations min.
(rated load, operating frequency: 1,800 operations/h) |
Failure rate P value (reference value)*5 | 100 mA at 5 VDC | 10mA at 5 VDC |
Weight | 1-pole and 2-pole: 40 g, 3-pole: Approx. 50 g, 4-pole: Approx. 70 g |
